N Male (plug) to TNC Male (plug) Adapter, Nickel Plated Brass Body, High Temp, 1.2 VSWR

N Male (plug) to TNC Male (plug) Adapter, Nickel Plated Brass Body, High Temp, 1.2 VSWR

The type N to TNC standard adapter SM4153 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none type N to Threaded none TNC RF adapt...

The type N to TNC standard adapter SM4153 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none Threaded none type N to Threaded none TNC RF adapter comes with a 50 Ohm impedance. This none adapter is manufactured to precise RF component specifications and has a maximum VSWR of 1.2:1.This none type N to none TNC adapter is constructed with male gender on side 1 and male gender on side 2. The none none type N male to TNC male coaxial adapter from Fairview Microwave has a straight body style. This straighttype Nadapter is an in-line RF adapter in a standard design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM4153 adapter has a length of 1.42 inches, a width of 0.8 inches, and a weight of 0.09 lbs.Our between series connection type RF adapter operates at a maximum frequency of 11 GHz. This type N male to TNC male radio frequency adapter has a brass connector body with nickel body plating. The Fairview Microwave SM4153 coaxial RF adapter operates at temperatures ranging from -65 to 165 degrees C. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s type N male to TNC male adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build type N and TNC coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 11 GHz radio frequency adapter as per your requirements.

Expand

SKU SM4153 SM4153 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

N

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

TNC

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

11 GHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Body Material 1

Brass

Connector Body Plating 1

Nickel

Connector Mount Method 2

None

Connector Body Material 2

Brass

Connector Body Plating 2

Nickel

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

n-male-tnc-female-adapter-sm4155 Fairview Microwave SM4155

145 available

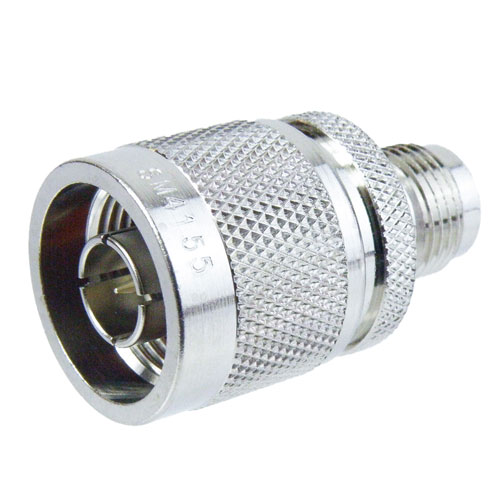

N Male (plug) to TNC Female (Jack) Adapter, Nickel plated Brass body, 1.35 VSWR

Compare

SKU SM4155

Starting price $78.99

Estimated shipment Next Business Day

n-female-tnc-male-adapter-sm4140 Fairview Microwave SM4140

132 available

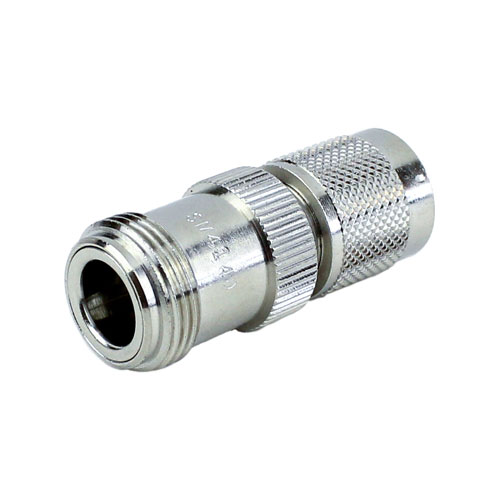

N Female (Jack) to TNC Male (Plug) Adapter, 1.4 VSWR
