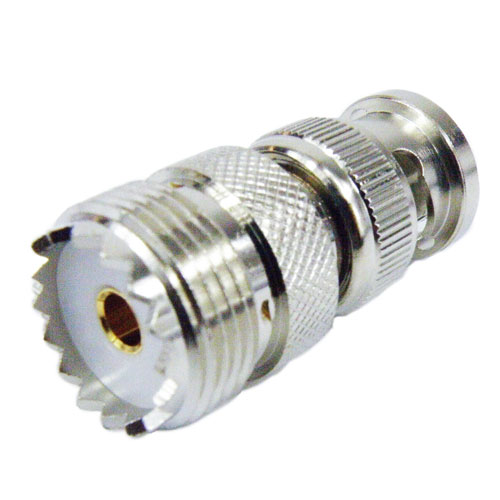

UHF Female (Jack) to BNC Male (Plug) Adapter, Nickel Plated Brass Body

UHF Female (Jack) to BNC Male (Plug) Adapter, Nickel Plated Brass Body

Name: UHF Female (Jack) to BNC Male (Plug) Adapter, Nickel Plated Brass Body
Brand: Fairview Microwave, Inc.
SKU: SM2138
Price: 20.79 USD
Availability: OutOfStock

The UHF to BNC standard adapter SM2138 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none none UHF to none BNC RF adapter comes with a 50 Ohm i...

The UHF to BNC standard adapter SM2138 from Fairview Microwave is part of a very large in-stock collection of RF interconnect components. Our none none UHF to none BNC RF adapter comes with a 50 Ohm impedance. Our standard RF adapter has a dielectric withstanding voltage of 500 Vrms.This none UHF to none BNC adapter is constructed with female gender on side 1 and male gender on side 2. The none none UHF female to BNC male coaxial adapter from Fairview Microwave has a straight body style. This straightUHFadapter is an in-line RF adapter in a standard design. Our RF adapter can be utilized to protect connectors on expensive equipment where the number of connect and disconnect cycles is high. The SM2138 adapter has a length of 1.35 inches, a width of 0.65 inches, and a weight of 0.05 lbs.Our between series connection type RF adapter operates at a maximum frequency of 300 MHz. This UHF female to BNC male radio frequency adapter has a brass connector body with nickel body plating. Additional dimensions and specifications for this adapter are on our downloadable PDF datasheet above.Fairview Microwave’s UHF female to BNC male adapter is part of over one million RF microwave and millimeter wave components in stock for worldwide shipment. We also stock and custom-build UHF and BNC coaxial cables that ship quickly from our facility for all your RF adapter component needs. Make your online purchase right now to take advantage of our same-business-day shipping. For further information on similar products, our expert technical support and trained sales team can get you the ideal 300 MHz radio frequency adapter as per your requirements.

Expand

SKU SM2138 SM2138 -0

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Please contact our customer service team for assistance in identifying the appropriate replacment part for your application.

Key specifications

Datasheet

View All

Connector Series 1

UHF

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Impedance 1

50 Ohm

Connector Series 2

BNC

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Impedance 2

50 Ohm

Frequency, Min

DC

Frequency, Max

300 MHz

Adapter Body Style

Straight

Connector Mount Method 1

None

Connector Body Material 1

Brass

Connector Body Plating 1

Nickel

Connector Mount Method 2

None

Connector Body Material 2

Brass

Connector Body Plating 2

Nickel

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99
