4.4 GHz to 4.9 GHz, SMA, GaN Bi-Directional Amplifier, C-Band, 15W Psat, 45dB Tx Gain, 35% Efficiency, 2 microsec speed, Manual T/R Control

4.4 GHz to 4.9 GHz, SMA, GaN Bi-Directional Amplifier, C-Band, 15W Psat, 45dB Tx Gain, 35% Efficiency, 2 microsec speed, Manual T/R Control

The FM15B5004 is a Class AB high power Bi-Directional Amplifier that operates in C-Band from 4400 MHz to 4900 MHz. This amplifier generates 15 Watts typical Psat (3W linear) RF output power to boost ...

The FM15B5004 is a Class AB high power Bi-Directional Amplifier that operates in C-Band from 4400 MHz to 4900 MHz. This amplifier generates 15 Watts typical Psat (3W linear) RF output power to boost performance of datalinks and transmitters. The module utilizes the latest Gallium Nitride (GaN) semiconductor technology with 35% power efficiency. The package design features a small form factor that's ideal for size, weight, and power (SWaP) constrained applications used in broadband RF telemetry, tactical communication, electronic warfare, and unmanned aircraft and ground systems, as well as software defined radios. Impressive typical performance includes 32 dBm P1dB output power at 4% EVM, and -30 dBc ACPR @ 2W average power, with 45 dB of transmit gain, 10 dB of receive gain, 2 µsec switching speed, and low harmonic suppression of -25 dBc. Additionally, with a nominal 0 dBm (1 mW) RF input power, the amplifier can provide 45 dB of gain for continuous wave (CW) and near-constant envelope waveforms. Operating voltage is +28 Vdc with 4.6A of DC current. Additional features include manual T/R control, single power supply, and overvoltage protection. For TTL logic on/off control, transmit mode uses 0V or ground and receive mode uses N/C or +5V. The rugged Mil-Grade assembly supports female SMA RF input/output connectors and a micro-D 9 pin socket command control connector with an accessory cable assembly included. The operating baseplate temperature range is -40°C to +85oC and the unit is guaranteed to withstand up to 95% relative humidity, altitude levels up to 30,000 ft, and random vibration and shock profiles (see chart below). Pasternack also offers an accessory Harmonic filter option, model FMHFL0001 that can be used at the output of the FM15B5004 bidirectional power amplifier. This lowpass RF filter covers 2.5 to 6 GHz and has low insertion loss with power handling up to 50W and specifically designed to reduce harmonics at the output of transmitters operating at up through C-Band and offers rejection levels of greater than 20 dB from 8 GHz to 10 GHz. The filter is offered in a miniature SMA connectorized package.

Expand

SKU FM15B5004 FM15B5004 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

5A991.G

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

high-power-bi-directional-amplifier-10-watts-5.1-ghz-sma-fm15b5005 Fairview Microwave FM15B5005

Call us

4.4 GHz to 5.1 GHz, SMA, GaN Bi-Directional Amplifier, C-Band, 10W Psat, 10dB Tx Gain, 20% Efficiency, 2 microsec speed, Manual T/R Control

Compare

SKU FM15B5005

Starting price $16,275.00

Estimated shipment Call Us

high-power-bi-directional-amplifier-16-watts-512-mhz-sma-fm15b5007 Fairview Microwave FM15B5007

1 available

225 MHz to 512 MHz, SMA, Bi-Directional Amplifier, VHF/UHF, 16W Psat, 36dB Tx Gain, 35% Efficiency, 8 microsec speed, Manual T/R Control

Compare

SKU FM15B5007

Starting price $12,800.00

Estimated shipment Today

high-power-bi-directional-amplifier-10-watts-5.875-ghz-sma-fm15b5006 Fairview Microwave FM15B5006

2 available

5.125 GHz to 5.875 GHz, SMA, GaN Bi-Directional Amplifier, C-Band, 10W Psat, 43dB Tx Gain, 20% Efficiency, 2 microsec speed, Autosensing

Compare

SKU FM15B5006

Starting price $14,600.00

Estimated shipment Today

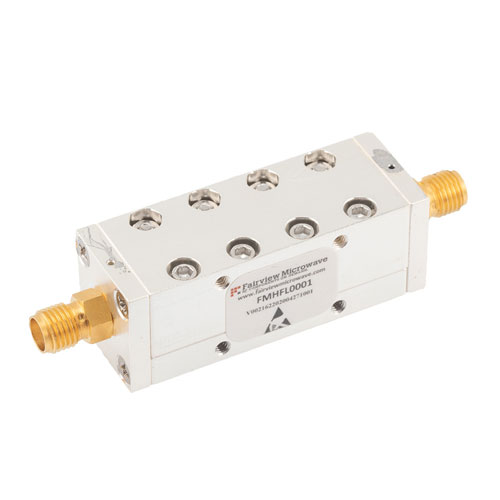

miniature-harmonic-filter-2500-to-6000-mhz-c-band-50-w-pin-20-db-rejection-03-db-loss-sma-fmhfl0001 Fairview Microwave FMHFL0001
