42 dB Gain, 18 dBm P1dB, 0.1 GHz to 50 GHz, Broadband AC Low Noise Amplifier, Bench-Top, 110/240VAC, 5 dB Noise Figure, 2.4mm

42 dB Gain, 18 dBm P1dB, 0.1 GHz to 50 GHz, Broadband AC Low Noise Amplifier, Bench-Top, 110/240VAC, 5 dB Noise Figure, 2.4mm

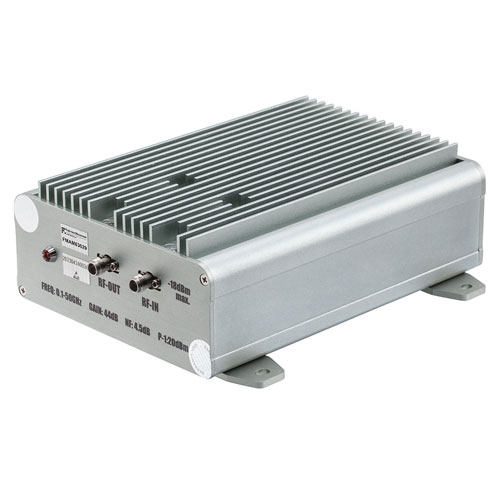

The FMAM63029 is an AC powered Bench-Top Low Noise Amplifier that operates across an ultra wideband frequency range from 100 MHz to 50 GHz. This 50 Ohm highly linear design exhibits impressive typcia...

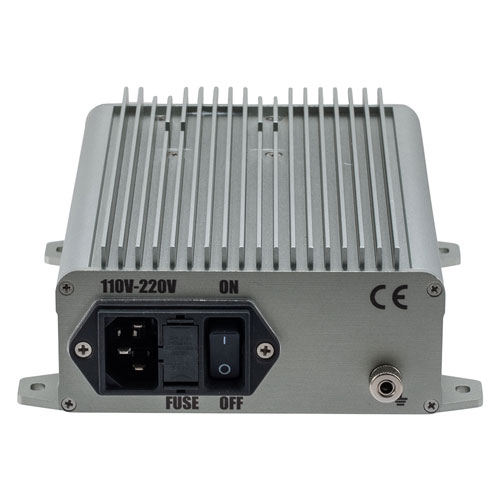

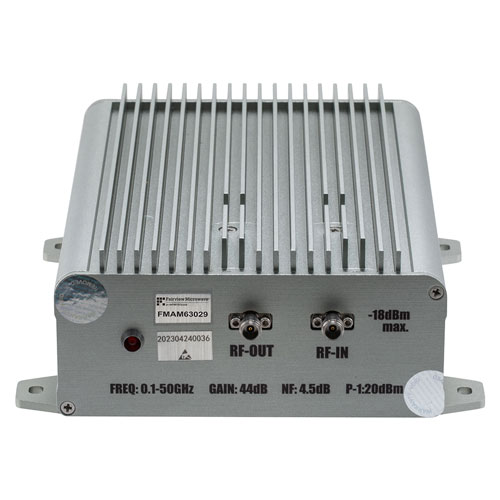

The FMAM63029 is an AC powered Bench-Top Low Noise Amplifier that operates across an ultra wideband frequency range from 100 MHz to 50 GHz. This 50 Ohm highly linear design exhibits impressive typcial performance that includes 42 dB gain, 5 dB noise figure, +18 dBm P1dB, and +28 dBm output IP3. Maximum RF input power (CW) is -18 dBm. The rugged MIL Grade aluminium package is finished in gray paint and has 2.4mm Female connectors at the RF input and output ports, and an indicator light on the front panel. The rear panel supports an IEC 320-C14 AC power socket (IEC 320-C13 plug required) and an On/Off swtich. The module supports a wide operating AC voltage range from 110VAC to 240VAC with 65 mA supply current. Designed for high reliabiltiy, the package supports an integrated heatsink and cooling fan and is suitable for outdoor operation (moisture exposure dependent on temperaure and humidity conditions). The amplifier has an operational temperature range from -40°C to +85°C and meets a series of environmental test conditions including Altitude, Vibration, Humidity, and Shock.

Expand

SKU FMAM63029 FMAM63029 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Power Output

20 dBm Psat

Frequency, Min

100 MHz

Frequency, Max

50 GHz

Gain, Min

35 dB

Gain, Typical

42 dB

3rd Intercept Point

28 dB

Connector Series

2.4mm

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

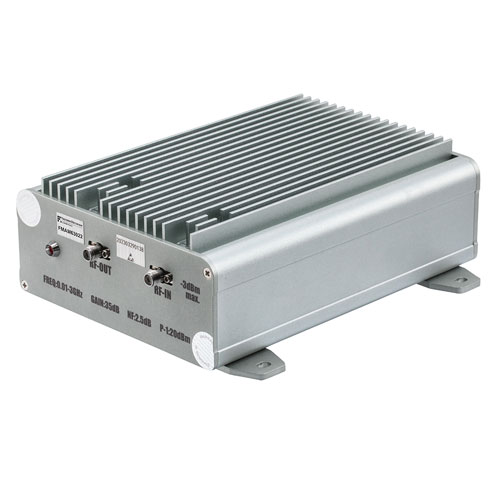

10-mhz-3-ghz-low-noise-broadband-amplifier-fmam63022 Fairview Microwave FMAM63022

1 available

36 dB Gain, 21 dBm P1dB, 0.01 GHz to 3 GHz, Broadband AC Low Noise Amplifier, Bench-Top, 110/240VAC, 2.5 dB Noise Figure, SMA

Compare

SKU FMAM63022

Starting price $4,050.00

Estimated shipment Today

100-mhz-18-ghz-low-noise-broadband-amplifier-fmam63028 Fairview Microwave FMAM63028

Call us

42 dB Gain, 16 dBm P1dB, 0.1 GHz to 18 GHz, Broadband AC Low Noise Amplifier, Bench-Top, 110/220VAC, 2.2 dB Noise Figure, SMA

Compare

SKU FMAM63028

Starting price $9,320.00

Estimated shipment Call Us

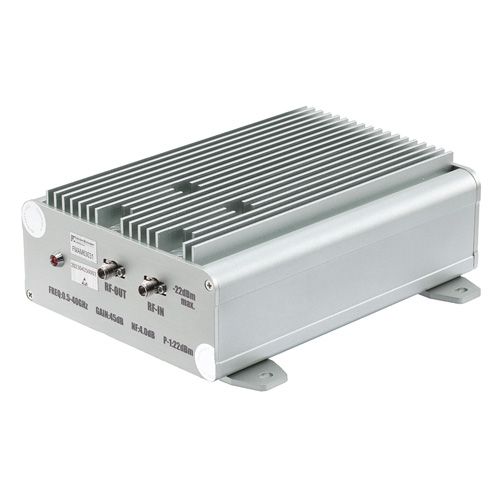

500-mhz-40-ghz-low-noise-broadband-amplifier-fmam63031 Fairview Microwave FMAM63031
