42 dB Gain, 16 dBm P1dB, 0.1 GHz to 18 GHz, Broadband AC Low Noise Amplifier, Bench-Top, 110/220VAC, 2.2 dB Noise Figure, SMA

42 dB Gain, 16 dBm P1dB, 0.1 GHz to 18 GHz, Broadband AC Low Noise Amplifier, Bench-Top, 110/220VAC, 2.2 dB Noise Figure, SMA

Name: 42 dB Gain, 16 dBm P1dB, 0.1 GHz to 18 GHz, Broadband AC Low Noise Amplifier, Bench-Top, 110/220VAC, 2.2 dB Noise Figure, SMA
Brand: Fairview Microwave, Inc.
SKU: FMAM63028
Price: 10275.0 USD
Availability: OutOfStock

The FMAM63028 is an AC powered Bench-Top Low Noise Amplifier that operates across an broadband frequency range from 100 MHz to 18 GHz. This 50 Ohm highly linear design exhibits impressive typcial per...

The FMAM63028 is an AC powered Bench-Top Low Noise Amplifier that operates across an broadband frequency range from 100 MHz to 18 GHz. This 50 Ohm highly linear design exhibits impressive typcial performance that includes 42 dB gain, 2.2 dB noise figure, +16 dBm P1dB, and +27 dBm output IP3. Maximum RF input power (CW) is -12 dBm. The rugged MIL Grade aluminium package is finished in gray paint and has SMA Female connectors at the RF input and output ports, and an indicator light on the front panel. The rear panel supports an IEC 320-C14 AC power socket (IEC 320-C13 plug required), a fuse compartment, an On/Off switch, and a dedicated package common ground connector. The module supports a wide operating AC voltage range from 110VAC to 220VAC with 60 mA supply current. Designed for high reliabiltiy, the package supports an integrated heatsink and cooling fan and is suitable for outdoor operation (moisture exposure dependent on temperaure and humidity conditions). The amplifier has an operational temperature range from -40°C to +85°C and meets a series of environmental test conditions including Altitude, Vibration, Humidity, and Shock.

Expand

SKU FMAM63028 FMAM63028 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Power Output

19 dBm Psat

Frequency, Min

100 MHz

Frequency, Max

18 GHz

Gain, Min

38 dB

Gain, Typical

42 dB

Noise Figure, Max

4 dB

3rd Intercept Point

27 dB

RF Input VSWR Max

2:1

RF Output VSWR Max

2:1

Connector Series

SMA

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

100-mhz-6-ghz-low-noise-broadband-amplifier-fmam63027 Fairview Microwave FMAM63027

1 available

30 dB Gain, 25 dBm P1dB, 0.1 GHz to 6 GHz, Broadband AC Low Noise Amplifier, Bench-Top, 110/220VAC, 3.7 dB Noise Figure, SMA

Compare

SKU FMAM63027

Starting price $9,630.00

Estimated shipment Tomorrow

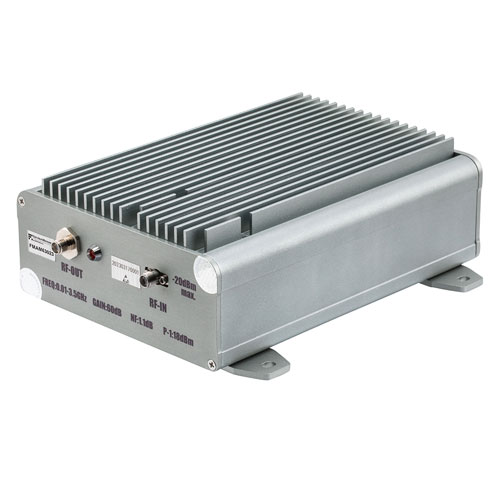

10-mhz-3.5-ghz-low-noise-broadband-amplifier-fmam63023 Fairview Microwave FMAM63023
