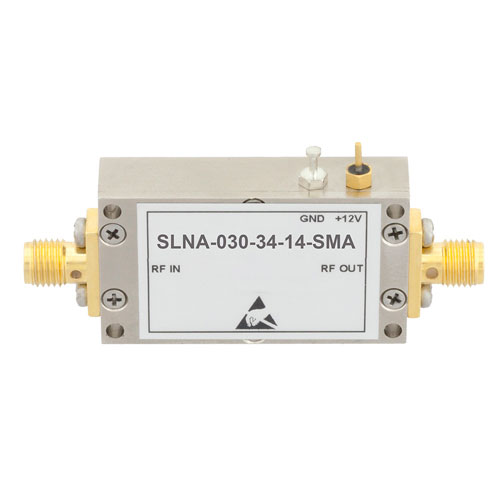

1.4 dB NF Low Noise Amplifier Operating From 10 MHz to 3 GHz with 34 dB Gain, 11 dBm P1dB and SMA

1.4 dB NF Low Noise Amplifier Operating From 10 MHz to 3 GHz with 34 dB Gain, 11 dBm P1dB and SMA

RF low noise amplifier SLNA-030-34-14-SMA from Fairview Microwave is just one amp of a large selection of in-stock radio frequency LNA amplifiers specifically stocked to be highly available for rapid ...

RF low noise amplifier SLNA-030-34-14-SMA from Fairview Microwave is just one amp of a large selection of in-stock radio frequency LNA amplifiers specifically stocked to be highly available for rapid shipment. Fairview RF low noise amplifier (LNA) is a connectorized medium power version manufactured with SMA connectors and rated at 11 dBm. Our SMA medium power low noise amplifier design has a 32.5 dB minimum gain and 34 dB typical gain.Fairview RF medium power LNA amplifier part number SLNA-030-34-14-SMA is rated for a gain flatness of 0.75 dB with a P1dB of 11 dBm. Our radio frequency medium power amplifier is constructed for a minimum frequency of 10 MHz and a maximum of 3 GHz. Additional specs on this medium power low noise amp from Fairview Microwave can be found in the details on the RF LNA amplifier datasheet specifications PDF above.Our medium power amplifier with low noise is part of over one million RF, microwave and millimeter wave components in stock. This medium power low noise RF amplifier is ready for same day purchase and shipping worldwide. Fairview also stocks a wide selection of other radio frequency power amplifier products that ship same-day from our warehouse for all your RF, microwave and millimeter wave amplifier component needs.

Expand

SKU SLNA-030-34-14-SMA SLNA-030-34-14-SMA -0

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Replacement Part: FMAM1009

Key specifications

Datasheet

View All

Gain

34 dB

1 dB Compression Power

11 dBm

Frequency, Min

10 MHz

Frequency, Max

3 GHz

Noise Figure, Typ

1.4 dB

Design

Low Noise

Voltage, DC Max

15 Volts

Current, DC Max

105 mA

Connector Series

SMA

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (06/2024) No Substance(s) Present Above Threshold

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
