2.2 dB NF Low Noise Amplifier Operating From 8 GHz to 12 GHz with 38 dB Gain, 13 dBm Psat and SMA

2.2 dB NF Low Noise Amplifier Operating From 8 GHz to 12 GHz with 38 dB Gain, 13 dBm Psat and SMA

RF low noise amplifier SLNA-120-38-22-SMA from Fairview Microwave is just one amp of a large selection of in-stock radio frequency LNA amplifiers specifically stocked to be highly available for rapid ...

RF low noise amplifier SLNA-120-38-22-SMA from Fairview Microwave is just one amp of a large selection of in-stock radio frequency LNA amplifiers specifically stocked to be highly available for rapid shipment. Fairview RF low noise amplifier (LNA) is a connectorized medium power version manufactured with SMA connectors and rated at 13 dBm. Our SMA medium power low noise amplifier design has a 38 dB minimum gain.Fairview RF medium power LNA amplifier part number SLNA-120-38-22-SMA is rated with a Psat of 13 dBm. Our radio frequency medium power amplifier is constructed for a minimum frequency of 8 GHz and a maximum of 12 GHz. Additional specs on this medium power low noise amp from Fairview Microwave can be found in the details on the RF LNA amplifier datasheet specifications PDF above.Our medium power amplifier with low noise is part of over one million RF, microwave and millimeter wave components in stock. This medium power low noise RF amplifier is ready for same day purchase and shipping worldwide. Fairview also stocks a wide selection of other radio frequency power amplifier products that ship same-day from our warehouse for all your RF, microwave and millimeter wave amplifier component needs.

Expand

SKU SLNA-120-38-22-SMA SLNA-120-38-22-SMA -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Gain

38 dB

Frequency, Min

8 GHz

Frequency, Max

12 GHz

Noise Figure, Typ

2.2 dB

Design

Low Noise

Voltage, DC Max

13 Volts

Current, DC Max

250 mA

Connector Series

SMA

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

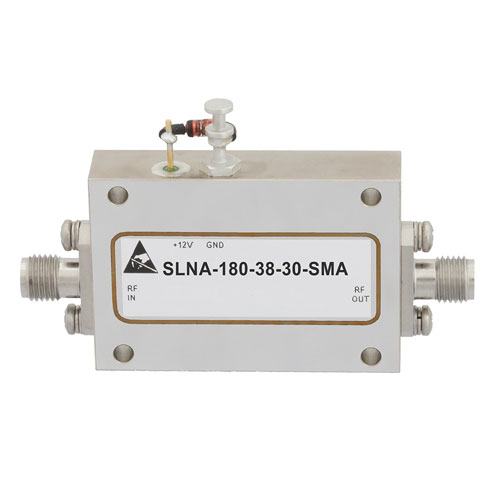

3db-nf-low-noise-amplifier-38db-slna-180-38-30-sma Fairview Microwave SLNA-180-38-30-SMA

Call us

3 dB NF Low Noise Amplifier Operating From 12 GHz to 18 GHz with 38 dB Gain, 13 dBm Psat and SMA

Compare

SKU SLNA-180-38-30-SMA

Starting price $885.72

Estimated shipment Call Us

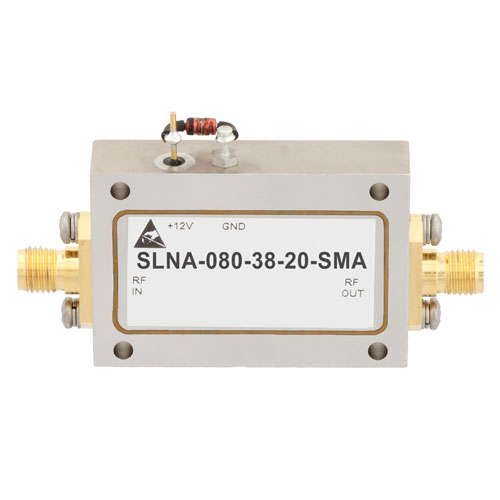

2db-nf-low-noise-amplifier-38db-slna-080-38-20-sma Fairview Microwave SLNA-080-38-20-SMA

2 available

2 dB NF Low Noise Amplifier Operating From 4 GHz to 8 GHz with 38 dB Gain, 13 dBm Psat and SMA

Compare

SKU SLNA-080-38-20-SMA

Starting price $2,240.00

Estimated shipment Next Business Day

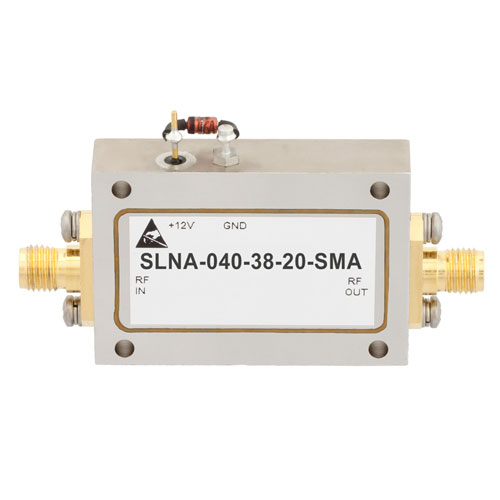

2db-nf-low-noise-amplifier-38db-slna-040-38-20-sma Fairview Microwave SLNA-040-38-20-SMA
