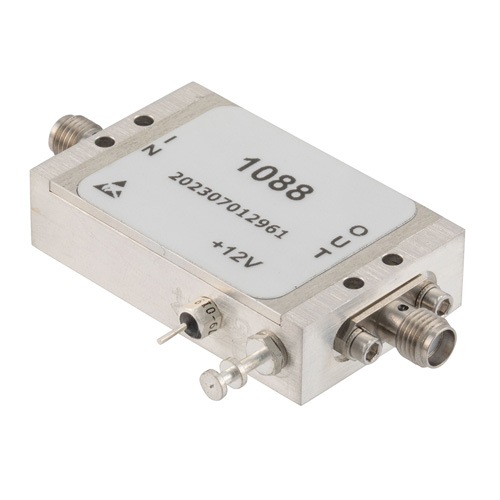

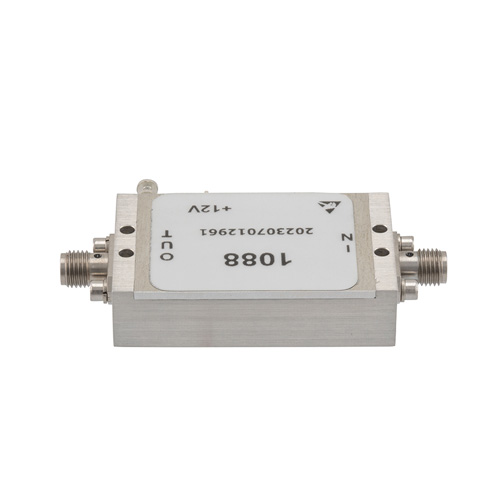

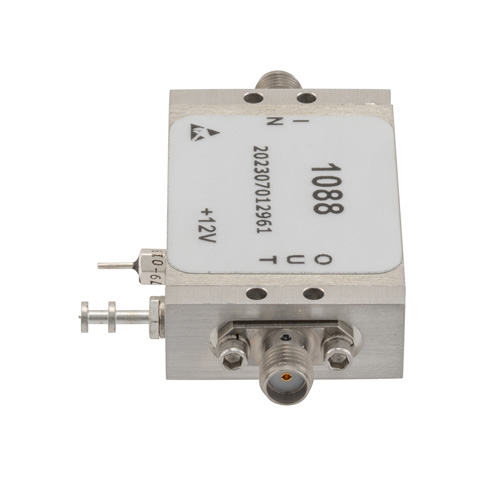

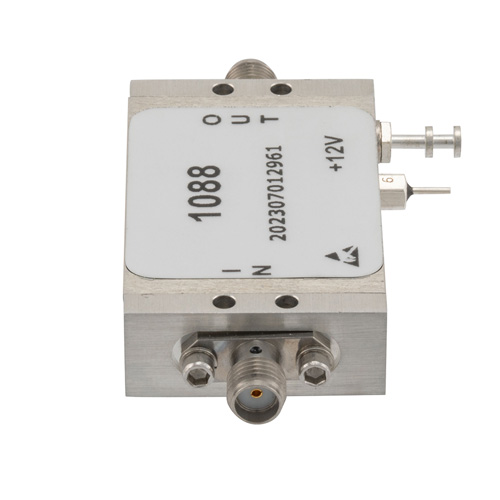

3.2 dB NF Low Noise Amplifier, Operating from 10 MHz to 10 GHz with 37 dB Gain, 15 dBm P1dB and SMA

3.2 dB NF Low Noise Amplifier, Operating from 10 MHz to 10 GHz with 37 dB Gain, 15 dBm P1dB and SMA

Name: 3.2 dB NF Low Noise Amplifier, Operating from 10 MHz to 10 GHz with 37 dB Gain, 15 dBm P1dB and SMA
Brand: Fairview Microwave, Inc.
SKU: FMAM1088
Price: 1890.0 USD
Availability: OutOfStock

RF low noise amplifier FMAM1088 from Fairview Microwave is just one amplifier of a large selection of in-stock radio frequency LNA amplifiers specifically stocked to be highly available for rapid ship...

RF low noise amplifier FMAM1088 from Fairview Microwave is just one amplifier of a large selection of in-stock radio frequency LNA amplifiers specifically stocked to be highly available for rapid shipment. Fairview Microwave’s DC powered RF low noise amplifier (LNA) is a connectorized version manufactured with SMA connectors. This low noise amplifier has a female gender configuration for input and output ports. Our DC powered SMA low noise amplifier design has 37 dB typical gain with a gain flatness of 3 dB and a low noise figure of 3.2 dB. The FMAM1088 DC powered low noise amplifier has a typical VSWR (Voltage Standing Wave ratio) of 1.4:1.Fairview Microwave’s DC powered low noise amplifier part number FMAM1088 has a 50 Ohm impedance and a 15 dBm typical 1dB compression power. Our radio frequency DC powered low noise amplifier is constructed for a minimum frequency of 10 MHz and a maximum frequency of 10 GHz. The low noise amplifier operates over a temperature range of -40 deg C and 85 deg C.This SMA AC powered low noise amplifier is ideal for aerospace & defense, test & measurement, microwave radio systems, military & commercial communication systems, research & development, satcom, wireles applications. The Fairview Microwave low noise amplifier requires 12 Vdc typical with 200 mA DC current. The FMAM1088 amplifier has a maximum input power of 0 dBm. Additional specs for this low noise amplifier can be found on its PDF specification datasheet and CAD drawings above.The radio frequency DC powered low noise amplifier is one of the thousands of RF products available from Fairview Microwave’s in-stock inventory. Urgency is in our DNA so make your online purchase right now to take advantage of our same day shipment for local, domestic, and international orders. For further information on similar products, our expert technical support and knowledgeable sales team can help you get the perfect DC powered low noise amplifier for your requirement.

Expand

SKU FMAM1088 FMAM1088 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Gain

37 dB

1 dB Compression Power

14 dBm

Frequency, Min

10 MHz

Frequency, Max

10 GHz

Noise Figure, Typ

3.2 dB

Design

Low Noise

Voltage, DC Max

15 Volts

Current, DC Max

250 mA

Connector Series

SMA

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

2.1db-nf-low-noise-amplifier-18db-fmam1081 Fairview Microwave FMAM1081

2 available

2.1 dB NF Low Noise Amplifier, Operating from 10 MHz to 6 GHz with 18 dB Gain, 20 dBm P1dB and SMA

Compare

SKU FMAM1081

Starting price $1,620.00

Estimated shipment Today

2db-nf-low-noise-amplifier-50db-fmam1085 Fairview Microwave FMAM1085

2 available

2.0 dB NF Low Noise Amplifier, Operating from 50 MHz to 8 GHz with 50 dB Gain, 19 dBm P1dB and SMA

Compare

SKU FMAM1085

Starting price $1,810.00

Estimated shipment Today

1.4db-nf-low-noise-amplifier-30db-fmam1083 Fairview Microwave FMAM1083

Call us

1.4 dB NF Low Noise Amplifier, Operating from 10 MHz to 1 GHz with 30 dB Gain, 29 dBm P1dB and SMA

Compare

SKU FMAM1083

Starting price $1,620.00

Estimated shipment Call Us

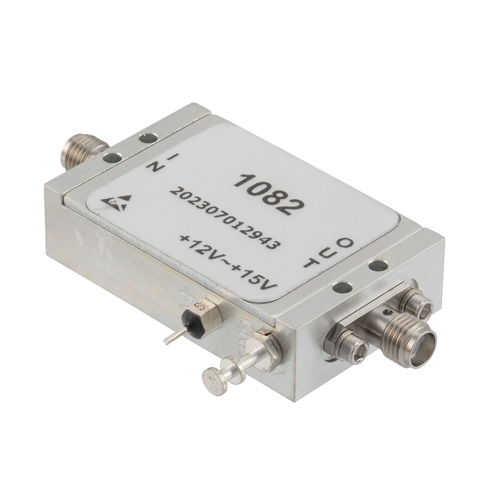

1.3db-nf-low-noise-amplifier-34db-fmam1082 Fairview Microwave FMAM1082
