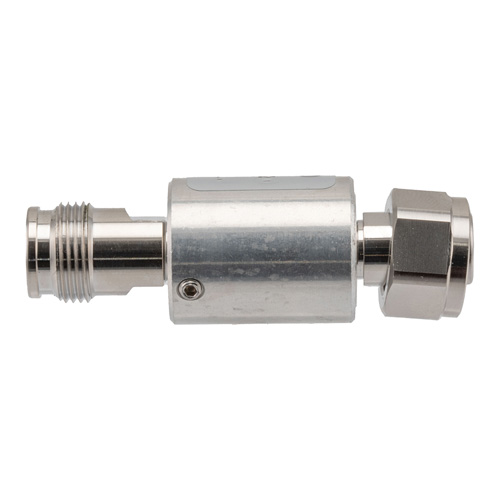

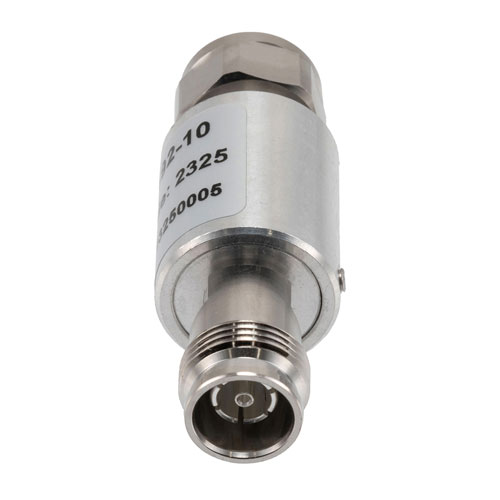

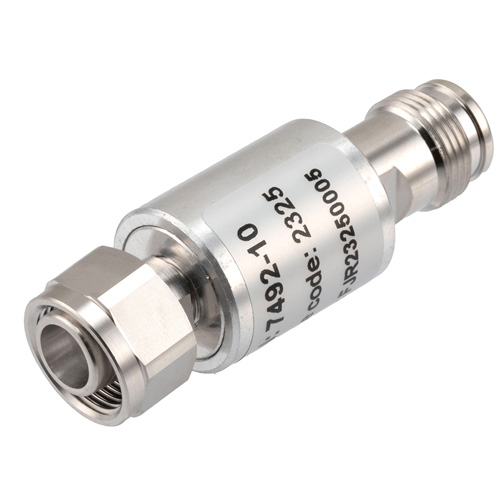

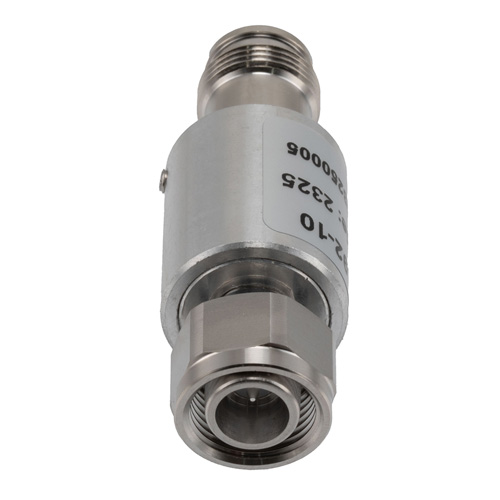

10 dB Fixed Attenuator 2.2-5 Male (Plug) to 2.2-5 Female (Jack) DC to 6 GHz Rated to 5 Watts, Brass Body, 1.25:1 VSWR

10 dB Fixed Attenuator 2.2-5 Male (Plug) to 2.2-5 Female (Jack) DC to 6 GHz Rated to 5 Watts, Brass Body, 1.25:1 VSWR

RF coaxial fixed attenuator FMAT7492-10 from Fairview Microwave is manufactured with a 2.2-5 input. This coax 2.2-5 RF attenuator comes with a 50 Ohm impedance. Our 50 Ohm 2.2-5 male to 2.2-5 female a...

RF coaxial fixed attenuator FMAT7492-10 from Fairview Microwave is manufactured with a 2.2-5 input. This coax 2.2-5 RF attenuator comes with a 50 Ohm impedance. Our 50 Ohm 2.2-5 male to 2.2-5 female attenuator is constructed to precise RF and microwave industry specifications and operates at a maximum frequency of 6 GHz. This connectorized bidirectional attenuator is the best solution for reducing the power levels of a signal by a fixed amount with little or no reflections. Make your online purchase right now to take advantage of our same-day shipping.Fairview Microwave's FMAT7492-10 50 Ohm RF attenuator has maximum attenuation accuracy of 1 dB. This connectorized 6 GHz fixed RF attenuator can prevent signal overload in amplifiers, receivers and detectors, adjusting the signal level to optimal range. This bidirectional attenuator can operate at temperatures ranging from -40 to 75 deg C and has a 1.25:1 maximum VSWR. Our 10 dB fixed attenuator runs between DC to 6 GHz and has a peak power rating of 50 Watts. The max input power rating (CW) of this RF attenuator is 5 Watts. This radio frequency attenuator has a brass 2.2-5 connector with silver-plated beryllium copper contact.Fairview Microwave's 2.2-5 attenuator has a male gender in and a female gender out. FMAT7492-10 2.2-5 male to 2.2-5 female attenuator is rated for a maximum RF attenuation value of 10 dB. Our 10 dB fixed attenuator includes a tri-metal plated brass connector in and out body material. This fixed passive coaxial attenuator is also suitable for instrumentation, precision measurements, prototyping and characterization, production systems and 5G cellular bands applications. Our 10 dB fixed attenuator with 2.2-5 connectors is built with brass body material and copper-tin-zinc alloy plating. Fairview Microwave's 10 dB fixed radio frequency attenuator with a maximum power rating of 5 Watts is in stock and currently available for purchase. Our 2.2-5 fixed attenuator is part of over one million RF, microwave and millimeter wave components ready for same-day shipment anywhere in the world. For further information on similar products, our expert technical support and trained sales team can get you to the ideal RF attenuator as per your requirements.

Expand

SKU FMAT7492-10 FMAT7492-10 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Design

Fixed

Maximum Frequency

6 GHz

Impedance

50 Ohm

Power Maximum

5 Watt

VSWR Maximum

1.25:1

Attenuation

10 dB

Connector Series 1

2.2-5

Connector Gender 1

Male

Connector Series 2

2.2-5

Connector Gender 2

Female

Body Material

Brass

Body Plating

Copper-Tin-Zinc Alloy

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
