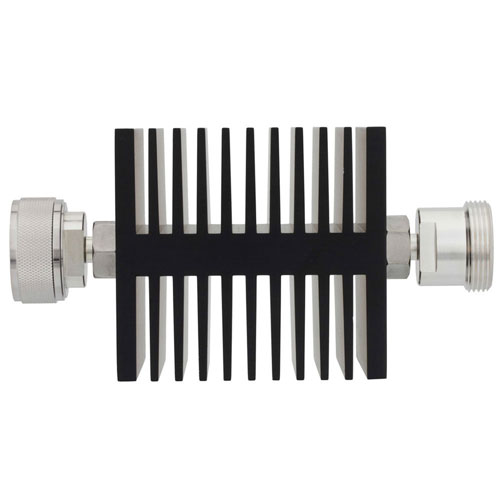

30 dB Fixed Attenuator 7/16 Male (Plug) to 7/16 Female (Jack) Directional Up to 7.5 GHz Rated to 50 Watts, Heatsink Body, 1.45 VSWR

30 dB Fixed Attenuator 7/16 Male (Plug) to 7/16 Female (Jack) Directional Up to 7.5 GHz Rated to 50 Watts, Heatsink Body, 1.45 VSWR

RF coaxial fixed attenuator SA75DMDF50W-30 from Fairview Microwave is manufactured with a 7/16 DIN input. This coax 7/16 DIN attenuator is 50 Ohm and an in-line RF attenuator design. Our 50 Ohm 7/16 D...

RF coaxial fixed attenuator SA75DMDF50W-30 from Fairview Microwave is manufactured with a 7/16 DIN input. This coax 7/16 DIN attenuator is 50 Ohm and an in-line RF attenuator design. Our 50 Ohm 7/16 DIN to 7/16 DIN attenuator is constructed to precise RF and microwave industry specifications and operates at a maximum frequency of 7.5 GHz.Fairview 7/16 DIN attenuator has a male gender in and a female gender out. SA75DMDF50W-30 7/16 DIN male to 7/16 DIN female attenuator is rated for a maximum RF attenuation value of 30 dB. Our 30 dB fixed attenuator with 7/16 DIN connectors is built with black anodized aluminum heatsink body material and plating; you can find more RF attenuator datasheet specifications above.Fairview Microwave radio frequency coaxial 7/16 DIN 30 dB fixed attenuator maximum power rating is 50 Watts and is in-stock. Our fixed attenuator is part of over one million RF, microwave and millimeter wave components ready for same-day shipment to anywhere in the world.

Expand

SKU SA75DMDF50W-30 SA75DMDF50W-30 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Design

Fixed

Maximum Frequency

7.5 GHz

Impedance

50 Ohm

Power Maximum

50 Watt

VSWR Maximum

1.45:1

Attenuation

30 dB

Connector Series 1

7/16 DIN

Connector Gender 1

Male

Connector Series 2

7/16 DIN

Connector Gender 2

Female

Body Material

Black Anodized Aluminum Heatsink

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

30db-fixed-attenuator-7-16-female-7-16-male-50-watts-sa75dfdm50w-30 Fairview Microwave SA75DFDM50W-30

Call us

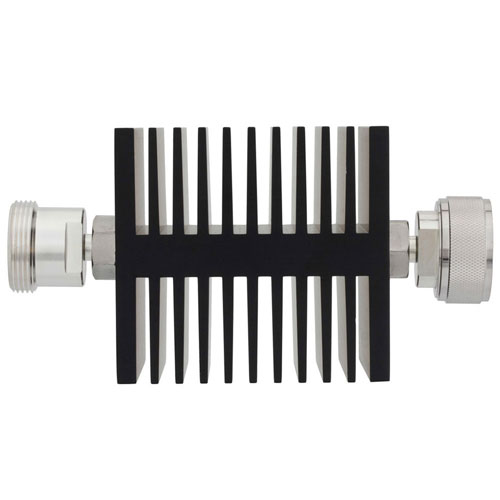

30 dB Fixed Attenuator 7/16 Female (Jack) to 7/16 Male (Plug) Directional Up to 7.5 GHz Rated to 50 Watts, Heatsink Body, 1.45 VSWR

Compare

SKU SA75DFDM50W-30

Starting price $510.00

Estimated shipment Call Us

30db-fixed-attenuator-7-16-female-7-16-female-50-watts-sa75dfdf50w-30 Fairview Microwave SA75DFDF50W-30

Call us

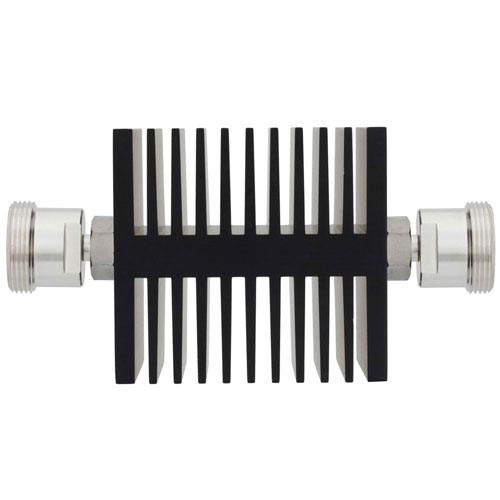

30 dB Fixed Attenuator 7/16 Female (Jack) to 7/16 Female (Jack) Directional Up to 7.5 GHz Rated to 50 Watts, Heatsink Body, 1.45 VSWR

Compare

SKU SA75DFDF50W-30

Starting price $644.00

Estimated shipment Call Us

50db-fixed-attenuator-7-16-male-7-16-female-50-watts-sa75dmdf50w-50 Fairview Microwave SA75DMDF50W-50

Call us

50 dB Fixed Attenuator 7/16 Male (Plug) to 7/16 Female (Jack) Directional Up to 6 GHz Rated to 50 Watts, Heatsink Body, 1.3 VSWR

Compare

SKU SA75DMDF50W-50

Starting price $634.00

Estimated shipment Call Us

30db-fixed-attenuator-7-16-male-7-16-female-25-watts-sa75dmdf25w-30 Fairview Microwave SA75DMDF25W-30

Call us

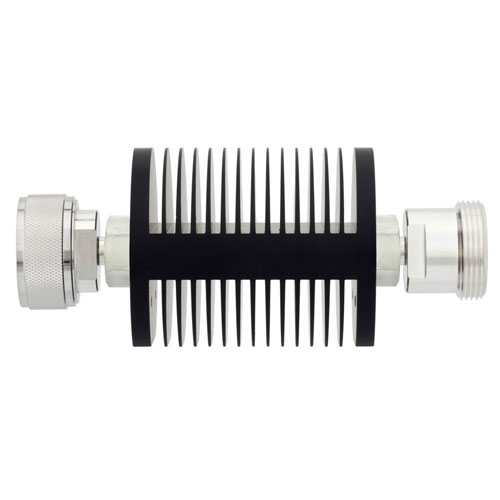

30 dB Fixed Attenuator 7/16 Male (Plug) to 7/16 Female (Jack) Up to 7.5 GHz Rated to 25 Watts, Heatsink Body, 1.45 VSWR
