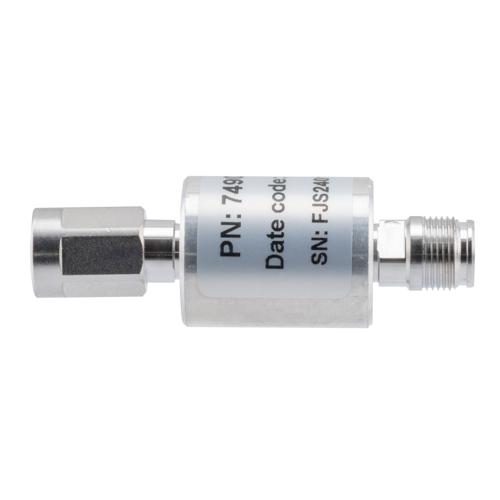

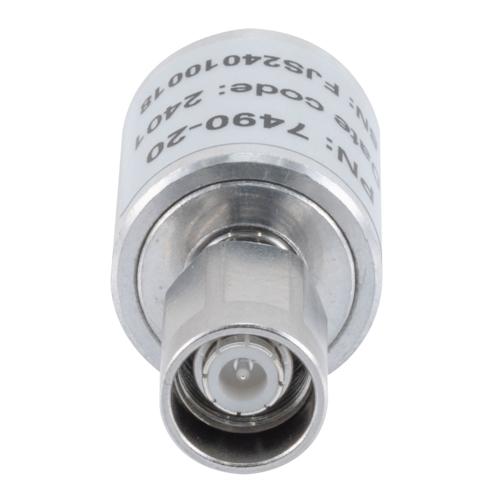

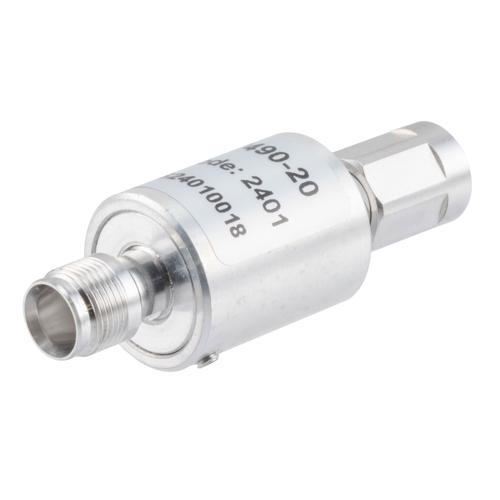

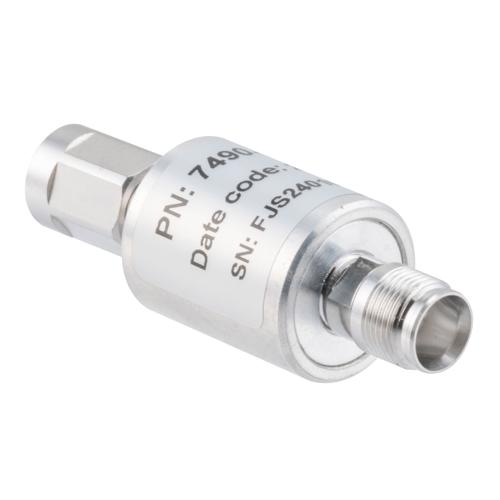

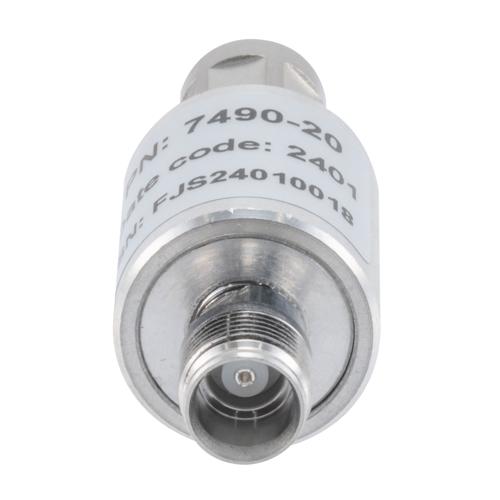

20 dB Fixed Attenuator NEX10 Male (Plug) to NEX10 Female (Jack) Up to 6 GHz Rated to 5 Watts, Aluminum Body, 1.25:1 VSWR

20 dB Fixed Attenuator NEX10 Male (Plug) to NEX10 Female (Jack) Up to 6 GHz Rated to 5 Watts, Aluminum Body, 1.25:1 VSWR

RF coaxial fixed attenuator FMAT7490-20 from Fairview Microwave is manufactured with a NEX10 input. This coax NEX10 RF attenuator comes with a 50 Ohm impedance. Our 50 Ohm NEX10 male to NEX10 female a...

RF coaxial fixed attenuator FMAT7490-20 from Fairview Microwave is manufactured with a NEX10 input. This coax NEX10 RF attenuator comes with a 50 Ohm impedance. Our 50 Ohm NEX10 male to NEX10 female attenuator is constructed to precise RF and microwave industry specifications and operates at a maximum frequency of 6 GHz. This connectorized bidirectional attenuator is the best solution for reducing the power levels of a signal by a fixed amount with little or no reflections. Make your online purchase right now to take advantage of our same-day shipping.This connectorized 6 GHz fixed RF attenuator can prevent signal overload in amplifiers, receivers and detectors, adjusting the signal level to optimal range. This bidirectional attenuator can operate at temperatures ranging from -40 to 75 deg C and has a 1.25:1 maximum VSWR. Our 20 dB fixed attenuator runs between DC to 6 GHz and has a peak power rating of 50 Watts. The max input power rating (CW) of this RF attenuator is 5 Watts. This radio frequency attenuator has a brass NEX10 connector with silver-plated beryllium copper contact.Fairview Microwave's NEX10 attenuator has a male gender in and a female gender out. FMAT7490-20 NEX10 male to NEX10 female attenuator is rated for a maximum RF attenuation value of 20 dB. Our 20 dB fixed attenuator includes a tri-metal plated brass connector in and out body material. This fixed passive coaxial attenuator is also suitable for instrumentation, precision measurements, prototyping and characterization, production systems, 5G cellular bands and DAS systems applications. Our 20 dB fixed attenuator with NEX10 connectors is built with aluminum body material.Fairview Microwave's 20 dB fixed radio frequency attenuator with a maximum power rating of 5 Watts is in stock and currently available for purchase. Our NEX10 fixed attenuator is part of over one million RF, microwave and millimeter wave components ready for same-day shipment anywhere in the world. For further information on similar products, our expert technical support and trained sales team can get you to the ideal RF attenuator as per your requirements.

Expand

SKU FMAT7490-20 FMAT7490-20 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Design

Fixed

Maximum Frequency

6 GHz

Impedance

50 Ohm

Power Maximum

5 Watt

VSWR Maximum

1.25:1

Attenuation

20 dB

Connector Series 1

NEX10

Connector Gender 1

Male

Connector Series 2

NEX10

Connector Gender 2

Female

Body Material

Aluminum

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

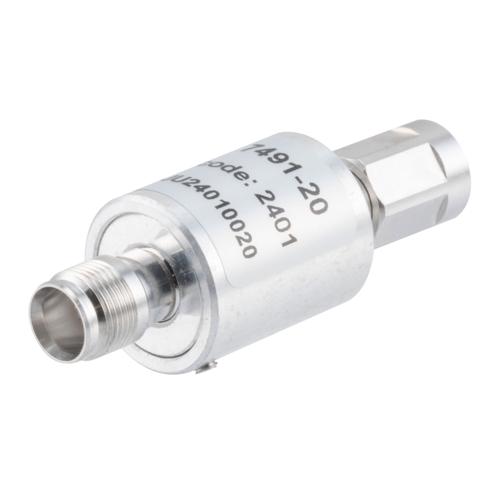

20db-fixed-attenuator-nex10-male-nex10-female-10-watts-fmat7491-20 Fairview Microwave FMAT7491-20

1 available

20 dB Fixed Attenuator NEX10 Male (Plug) to NEX10 Female (Jack) Up to 6 GHz Rated to 10 Watts, Aluminum Body, 1.25:1 VSWR

Compare

SKU FMAT7491-20

Starting price $239.00

Estimated shipment Next Business Day

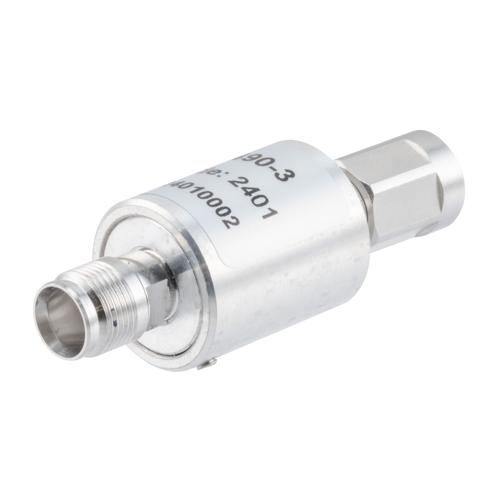

3db-fixed-attenuator-nex10-male-nex10-female-5-watts-fmat7490-3 Fairview Microwave FMAT7490-3

1 available

3 dB Fixed Attenuator NEX10 Male (Plug) to NEX10 Female (Jack) Up to 6 GHz Rated to 5 Watts, Aluminum Body, 1.25:1 VSWR

Compare

SKU FMAT7490-3

Starting price $199.00

Estimated shipment Next Business Day

6db-fixed-attenuator-nex10-male-nex10-female-5-watts-fmat7490-6 Fairview Microwave FMAT7490-6

1 available

6 dB Fixed Attenuator NEX10 Male (Plug) to NEX10 Female (Jack) Up to 6 GHz Rated to 5 Watts, Aluminum Body, 1.25:1 VSWR

Compare

SKU FMAT7490-6

Starting price $199.00

Estimated shipment Next Business Day

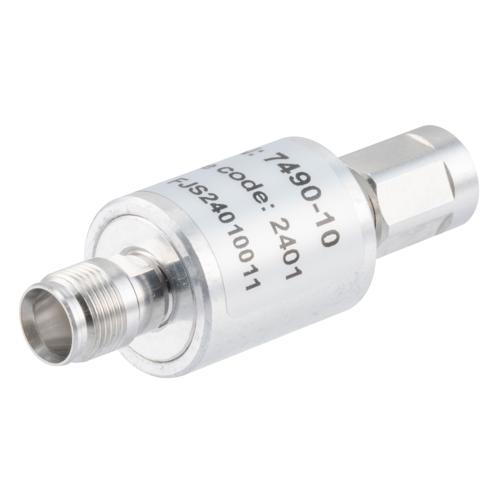

10db-fixed-attenuator-nex10-male-nex10-female-5-watts-fmat7490-10 Fairview Microwave FMAT7490-10
