20 dB Fixed Attenuator SMA Male (Plug) to SMA Female (Jack) Up to 18 GHz Rated to 50 Watts, Heatsink Body, 1.35 VSWR

20 dB Fixed Attenuator SMA Male (Plug) to SMA Female (Jack) Up to 18 GHz Rated to 50 Watts, Heatsink Body, 1.35 VSWR

Name: 20 dB Fixed Attenuator SMA Male (Plug) to SMA Female (Jack) Up to 18 GHz Rated to 50 Watts, Heatsink Body, 1.35 VSWR
Brand: Fairview Microwave, Inc.
SKU: SA18S50W-20
Price: 805.0 USD
Availability: InStock

RF coaxial fixed attenuator SA18S50W-20 from Fairview Microwave is manufactured with a SMA input. This coax SMA attenuator is 50 Ohm and an in-line RF attenuator design. Our 50 Ohm SMA to SMA attenuat...

RF coaxial fixed attenuator SA18S50W-20 from Fairview Microwave is manufactured with a SMA input. This coax SMA attenuator is 50 Ohm and an in-line RF attenuator design. Our 50 Ohm SMA to SMA attenuator is constructed to precise RF and microwave industry specifications and operates at a maximum frequency of 18 GHz.Fairview SMA attenuator has a male gender in and a female gender out. SA18S50W-20 SMA male to SMA female attenuator is rated for a maximum RF attenuation value of 20 dB. Our 20 dB fixed attenuator with SMA connectors is built with black anodized aluminum heatsink body material and plating; you can find more RF attenuator datasheet specifications above.Fairview Microwave radio frequency coaxial SMA 20 dB fixed attenuator maximum power rating is 50 Watts and is in-stock. Our fixed attenuator is part of over one million RF, microwave and millimeter wave components ready for same-day shipment to anywhere in the world.

Expand

SKU SA18S50W-20 SA18S50W-20 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Design

Fixed

Maximum Frequency

18 GHz

Impedance

50 Ohm

Power Maximum

50 Watt

VSWR Maximum

1.35:1

Attenuation

20 dB

Connector Series 1

SMA

Connector Gender 1

Male

Connector Series 2

SMA

Connector Gender 2

Female

Body Material

Black Anodized Aluminum Heatsink

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

20db-fixed-attenuator-sma-male-sma-female-5-watts-sa18s5w-20 Fairview Microwave SA18S5W-20

17 available

20 dB Fixed Attenuator SMA Male (Plug) to SMA Female (Jack) Up to 18 GHz Rated to 5 Watts, Heatsink Body, 1.35 VSWR

Compare

SKU SA18S5W-20

Starting price $191.99

Estimated shipment Today

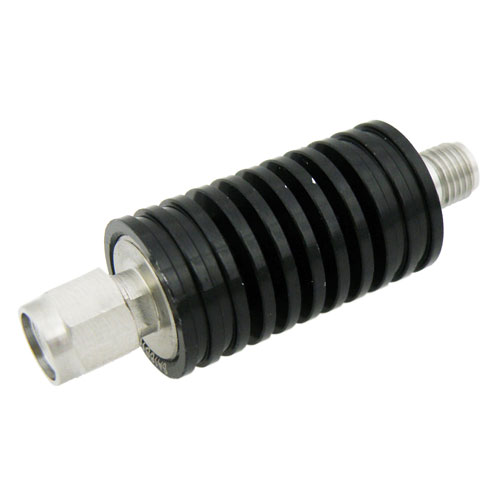

20db-fixed-attenuator-sma-male-sma-female-10-watts-sa18s10w-20 Fairview Microwave SA18S10W-20

87 available

20 dB Fixed Attenuator SMA Male (Plug) to SMA Female (Jack) Up to 18 GHz Rated to 10 Watts, Heatsink Body, 1.3 VSWR

Compare

SKU SA18S10W-20

Starting price $377.99

Estimated shipment Today

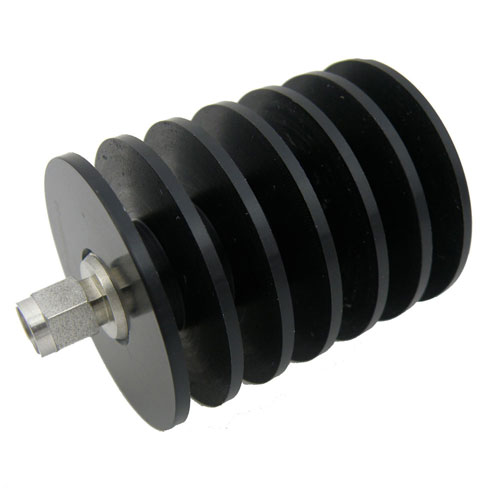

20db-fixed-attenuator-sma-male-sma-female-25-watts-sa18s25w-20 Fairview Microwave SA18S25W-20

7 available

20 dB Fixed Attenuator SMA Male (Plug) to SMA Female (Jack) Up to 18 GHz Rated to 25 Watts, Heatsink Body, 1.35 VSWR

Compare

SKU SA18S25W-20

Starting price $655.00

Estimated shipment Today

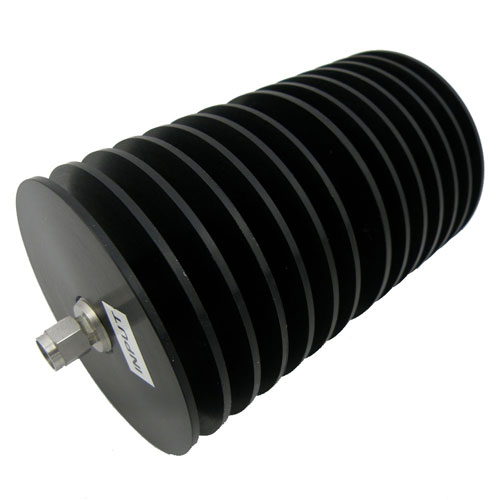

20db-fixed-attenuator-sma-male-sma-female-100-watts-sa18s100-20 Fairview Microwave SA18S100-20
