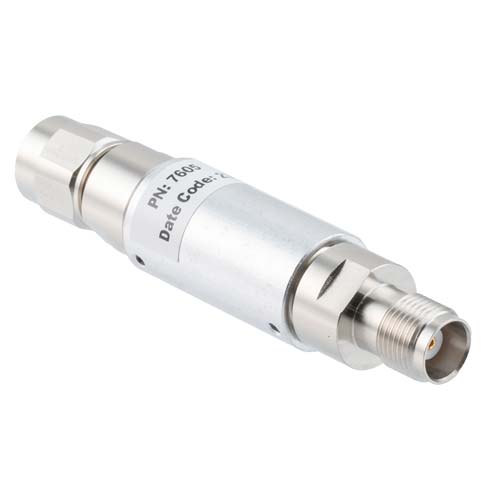

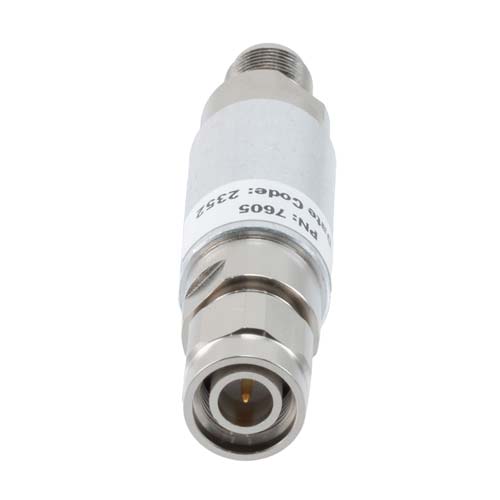

6dB RF fixed attenuator 2W, DC to 18GHz, TNC male to female, Brass

6dB RF fixed attenuator 2W, DC to 18GHz, TNC male to female, Brass

Name: 6dB RF fixed attenuator 2W, DC to 18GHz, TNC male to female, Brass
Brand: Fairview Microwave, Inc.
SKU: FMAT7605-6
Price: 141.99 USD
Availability: InStock

Fairview Microwave carries a broad selection of fixed attenuators with a wide range of attenuation levels, frequency ranges, and power dissipation ranges. Also known as RF pads, RF microwave attenuato...

Fairview Microwave carries a broad selection of fixed attenuators with a wide range of attenuation levels, frequency ranges, and power dissipation ranges. Also known as RF pads, RF microwave attenuators lower the amplitude of a signal (attenuate) a known amount. These attenuators pads can be used in a wide variety of applications including reducing a signal level to protect measurement equipment or other circuitry, extending the range of power meters and amplifiers, and impedance matching circuits by reducing the VSWR seen by adjacent components. RF attenuators can prevent signal overload in amplifiers, receivers and detectors, adjusting the signal level to a range that is optimal.Few RF components are as commonly used as fixed coaxial attenuators, and Fairview Microwave carries one of the largest in-stock varieties and ships them same day. The FMAT7605-6 is a 6 dB Fixed Attenuators that operates from DC to 18 GHz and is rated to 2 Watts. The versatile coaxial package uses TNC male to TNC female brass connectors and is also REACH and RoHS compliant.

Expand

SKU FMAT7605-6 FMAT7605-6 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Design

Fixed

Maximum Frequency

18 GHz

Impedance

50 Ohm

Power Maximum

2 Watt

VSWR Maximum

1.4:1

Attenuation

6 dB

Connector Series 1

TNC

Connector Gender 1

Male

Connector Series 2

TNC

Connector Gender 2

Female

Body Material

Brass

Body Plating

Nickel

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

1db-fixed-attenuator-tnc-male-tnc-female-2-watts-fmat7605-1 Fairview Microwave FMAT7605-1

1 available

1dB RF fixed attenuator 2W, DC to 18GHz, TNC male to female, Brass

Compare

SKU FMAT7605-1

Starting price $141.99

Estimated shipment Today

2db-fixed-attenuator-tnc-male-tnc-female-2-watts-fmat7605-2 Fairview Microwave FMAT7605-2

2 available

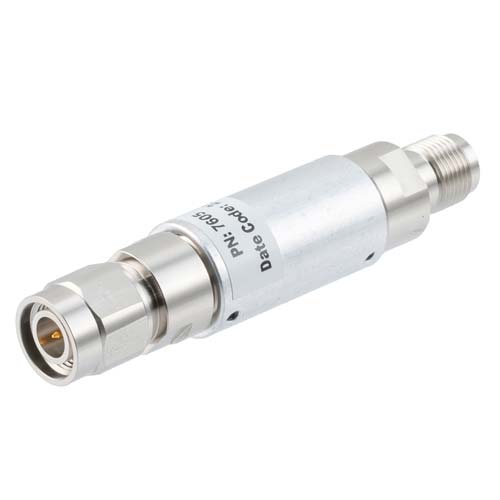

2dB RF fixed attenuator 2W, DC to 18GHz, TNC male to female, Brass

Compare

SKU FMAT7605-2

Starting price $141.99

Estimated shipment Today

3db-fixed-attenuator-tnc-male-tnc-female-2-watts-fmat7605-3 Fairview Microwave FMAT7605-3

2 available

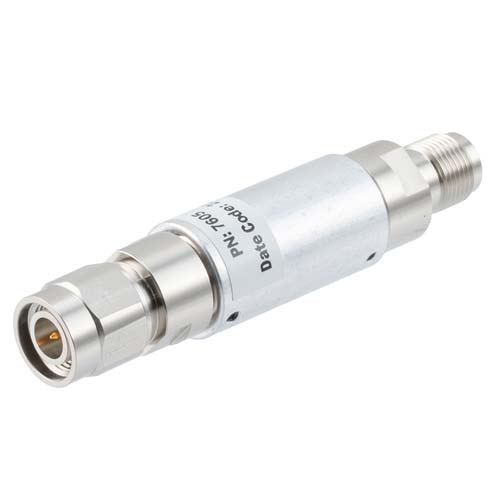

3dB RF fixed attenuator 2W, DC to 18GHz, TNC male to female, Brass

Compare

SKU FMAT7605-3

Starting price $141.99

Estimated shipment Today

10db-fixed-attenuator-tnc-male-tnc-female-2-watts-fmat7605-10 Fairview Microwave FMAT7605-10

5 available

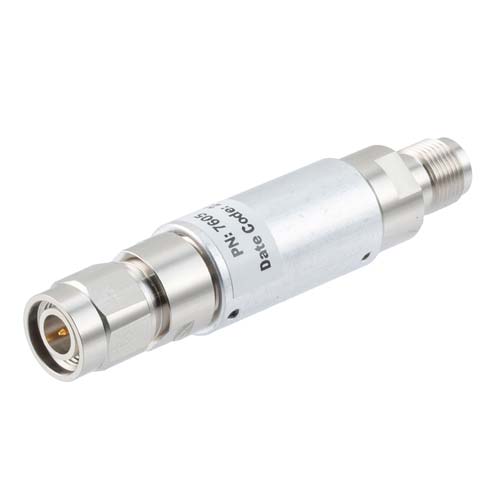

10dB RF fixed attenuator 2W, DC to 18GHz, TNC male to female, Brass
