0 to 40 dB Continuously Variable Attenuator SMA Female To SMA Female From 850 MHz To 2.5 GHz Rated To 15 Watts in a Dial Design

0 to 40 dB Continuously Variable Attenuator SMA Female To SMA Female From 850 MHz To 2.5 GHz Rated To 15 Watts in a Dial Design

Name: 0 to 40 dB Continuously Variable Attenuator SMA Female To SMA Female From 850 MHz To 2.5 GHz Rated To 15 Watts in a Dial Design
Brand: Fairview Microwave, Inc.
SKU: SA4086
Price: 1680.0 USD
Availability: InStock

Continuously variable attenuator SA4086 from Fairview Microwave is manufactured in an coaxial adjustable RF attenuator design. Our connectorized continuously variable attenuator has an input RF connec...

Continuously variable attenuator SA4086 from Fairview Microwave is manufactured in an coaxial adjustable RF attenuator design. Our connectorized continuously variable attenuator has an input RF connector that is SMA. This SMA continuously variable attenuator has female gender for input / output ports and 50 Ohm impedance.Fairview 50 Ohm SMA continuously adjustable attenuator is constructed to precise RF and microwave industry specifications and has a maximum attenuation value of 40 dB. Our SMA 40 dB variable attenuator is constructed to operate up to a maximum frequency of 2.5 GHz and a maximum input power of 15 Watts. This radio frequency continuously variable attenuator with SMA connectors is built with aluminum body material; you can find more continuous variable attenuator datasheet specifications above.Fairview Microwave SMA coaxial continuously variable attenuator part number SA4086 is in-stock. Our adjustable RF attenuator that is continuously variable is only part of over one million components for RF, microwave and millimeter wave applications that are ready for same day shipment worldwide.

Expand

SKU SA4086 SA4086 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Design

Continuously Variable

Maximum Frequency

2.5 GHz

Impedance

50 Ohm

Power Maximum

15 Watt

VSWR Maximum

1.5:1

Connector Series 1

SMA

Connector Gender 1

Female

Connector Series 2

SMA

Connector Gender 2

Female

Minimum Attenuation

0 dB

Maximum Attenuation

40 dB

Step Type

Dial

Step Size

0 dB

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

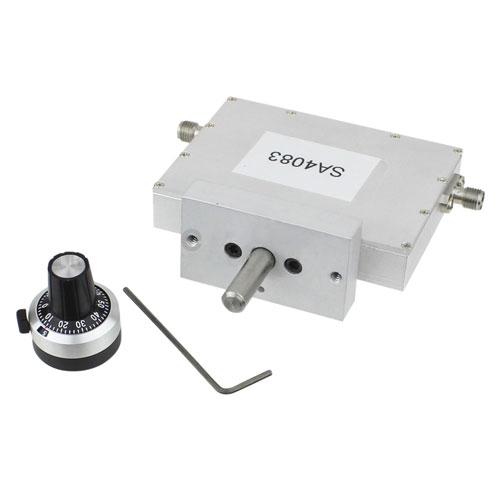

40db-continuously-variable-attenuator-sma-female-sma-female-5-watts-sa4083 Fairview Microwave SA4083

Call us

0 to 40 dB Continuously Variable Attenuator SMA Female (Jack) To SMA Female (Jack) From 2 GHz To 4 GHz Rated To 5 Watts, Dial, 1.6 VSWR

Compare

SKU SA4083

Starting price $1,060.00

Estimated shipment Call Us

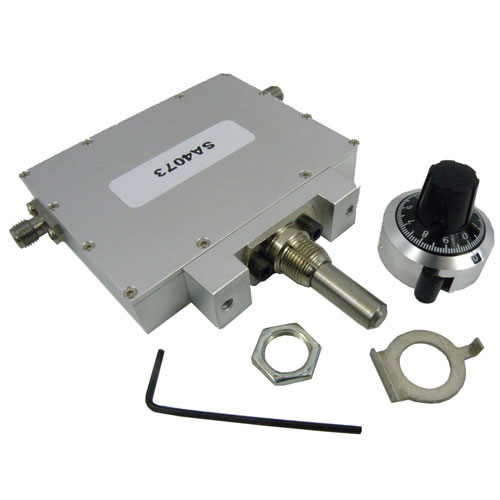

40db-continuously-variable-attenuator-sma-female-sma-female-5-watts-sa4073 Fairview Microwave SA4073

Call us

0 to 40 dB Continuously Variable Attenuator SMA Female (Jack) To SMA Female (Jack) From 2 GHz To 4 GHz Rated To 5 Watts, Dial, 1.6 VSWR

Compare

SKU SA4073

Starting price $1,060.00

Estimated shipment Call Us

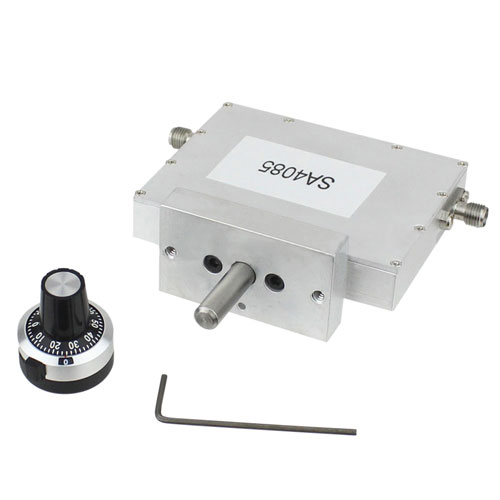

40db-continuously-variable-attenuator-sma-female-sma-female-5-watts-sa4085 Fairview Microwave SA4085

Call us

0 to 40 dB Continuously Variable Attenuator SMA Female To SMA Female From 4 GHz To 8 GHz Rated To 5 Watts in a Dial Design

Compare

SKU SA4085

Starting price $860.00

Estimated shipment Call Us

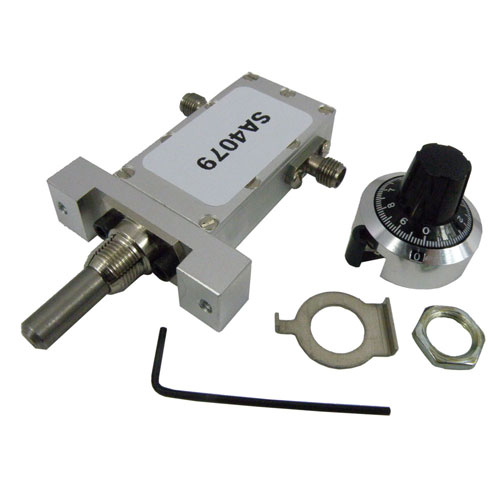

40db-continuously-variable-attenuator-sma-female-sma-female-5-watts-sa4079 Fairview Microwave SA4079
