Ethernet Microcontroller, TTL Programmable Interface, RJ-45 Ethernet Interface with Autosensing, 18 BITS, +5V, D-Sub Connector

Ethernet Microcontroller, TTL Programmable Interface, RJ-45 Ethernet Interface with Autosensing, 18 BITS, +5V, D-Sub Connector

The FMAT7001 is an Ethernet microcontroller module which gives Designers the capabilty to more effectivly manage and streamline the BIT command control functions to a programmable RF module by using a...

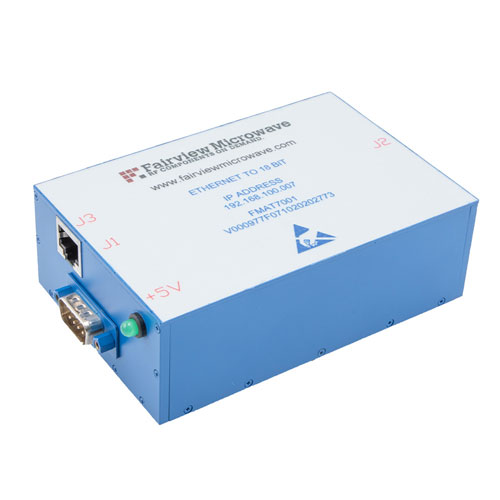

The FMAT7001 is an Ethernet microcontroller module which gives Designers the capabilty to more effectivly manage and streamline the BIT command control functions to a programmable RF module by using a PC computer program, or from a remote location via the Internet. The module communicates serially with a controlloing PC computer using GUI downloadable software and acts as a TTL programble interface that sends up to 18 command control BITS. This microcontroller is desirable for use with automated test and measurement and system level applications, and remote sites. The microcontroller uses a standard D-Sub 9 pin male connector for +5V DC bias voltage and ground. A D-Sub 9 pin female mating connector is included. An LED light indicates when Voltage is turned on. Addtional connection ports inlcude an RJ-45 socket (Ethernet cable not included) and the TTL output port uses a standard D-Sub 25 pin female socket connector. A D-Sub 25 pin male mating connector is inlcuded. The Ethernet circuit features autosensing and comes with a pre-set IP address. A downloadable operating manual is also included. The FMAT7001 provides a TTL programmable interface that works with any device that requries a TTL signal to function. This includes Fairview Microwave's lines of RF Swtiches, Attenuators, Phase Shifters, and Bi-Phase Modulators. The rugged Mil-Grade package assembly has an operating temperature range from -40°C to +70°C and can withstand noncondensing humidity up to 95%.

Expand

SKU FMAT7001 FMAT7001 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

2 available

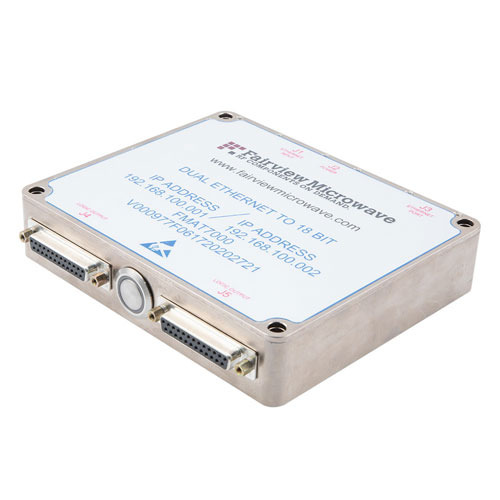

Dual Ethernet Microcontroller, TTL Programmable Interface, RJ-45 Ethernet Interface, 18 BITS (x2), +6V, D-Sub Connectors

Compare

SKU FMAT7000

Starting price $2,092.86

Estimated shipment Next Business Day

8 available

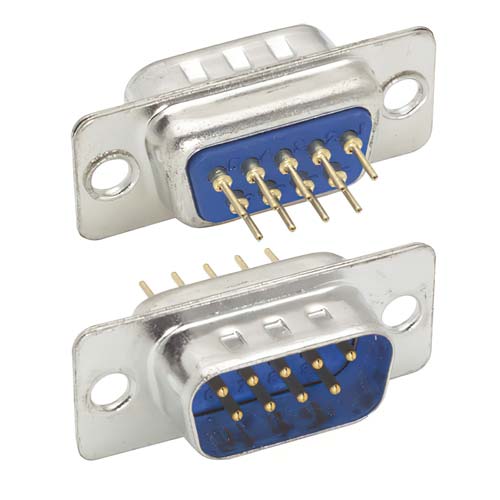

PC Termination D-Sub Connector, DB9 Male

Compare

SKU FMCN45984

Starting price $4.19

Estimated shipment Next Business Day

10 available

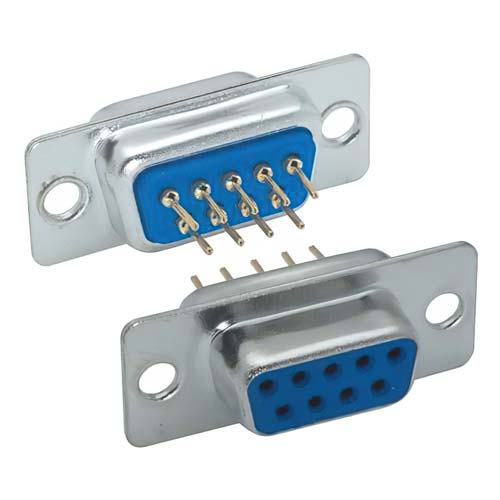

PC Termination D-Sub Connector, DB9 Female

Compare

SKU FMCN45986

Starting price $7.29

Estimated shipment Next Business Day

25 available

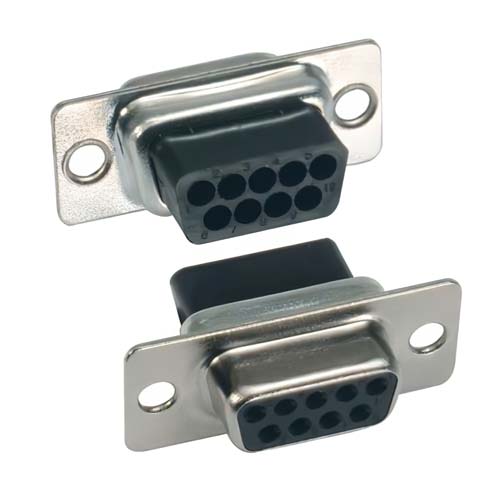

Insertion Type D-Sub Connector, DB9 Female

Compare

SKU FMCN45975

Starting price $2.15

Estimated shipment Next Business Day
