0 to 63 dB High Power Programmable Relay Controlled Step Attenuator with a 1 dB Step SMA Female to SMA Female Up to 2.7 GHz with Heatsink

0 to 63 dB High Power Programmable Relay Controlled Step Attenuator with a 1 dB Step SMA Female to SMA Female Up to 2.7 GHz with Heatsink

The FMAT8014 is a 6 Bit Relay Controlled High Power Programmable Attenuator with integrated heatsink that operates over the frequency range of DC to 2700 Mhz. The 50 ohm design has an attenuation ran...

The FMAT8014 is a 6 Bit Relay Controlled High Power Programmable Attenuator with integrated heatsink that operates over the frequency range of DC to 2700 Mhz. The 50 ohm design has an attenuation range that covers 0 to 63 dB in 1 dB steps. Attenuation steps are 1, 2, 4, 8, 16, and 32 dB. Insertion loss is 3.5 dB typical with a maximum RF input power rating of 10 watts average. Additional typical performance includes +/- 0.75 dB attenuation accuracy, +/- 0.1 dB repeatability, and switching speed of 10 milliseconds. Operational temperature range is -20°C to +60°C, and the DC supply is +12 Vdc @ 30 mA per relay. The compact and rugged package design supports SMA female RF input/output connectors, and a DE-9P D-Sub connector for DC and TTL controls.

Expand

SKU FMAT8014 FMAT8014 -0

QTY available 1

Price $2,013.63

Quantity Price

1-4$2,013.63

5-9$1,933.08

10-24$1,852.54

25-99$1,771.99

100-249$1,691.45

250+$1,691.45Please call for quote

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Design

Relay Controlled

Maximum Frequency

2.7 GHz

Impedance

50 Ohm

VSWR Maximum

1.5:1

Connector Series 1

SMA

Connector Gender 1

Female

Connector Series 2

SMA

Connector Gender 2

Female

Minimum Attenuation

0 dB

Maximum Attenuation

63 dB

Switching Time

10,000 ns

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

63-db-relay-controlled-step-attenuator-f-female-fmam8003 Fairview Microwave FMAM8003

Call us

0 to 63 dB 6 Bit Programmable Relay Controlled Step Attenuator With a 1 dB Step F Female To F Female Rated To 1 Watt Up To 1,000 MHz

Compare

SKU FMAM8003

Starting price

Estimated shipment Call Us

63-db-relay-controlled-step-attenuator-sma-female-fmat8000 Fairview Microwave FMAT8000

2 available

0 to 63 dB 6 Bit Programmable Relay Controlled Step Attenuator With a 1 dB Step SMA Female Rated To 0.5 Watts Up To 1,000 MHz

Compare

SKU FMAT8000

Starting price $419.40

Estimated shipment Next Business Day

1 available

0 to 63 dB High Power Programmable Relay Controlled Step Attenuator with a 1 dB Step SMA Female to SMA Female from 200 MHz to 2.5 GHz

Compare

SKU FMAT8013

Starting price $1,626.89

Estimated shipment Next Business Day

63.75-db-relay-controlled-step-attenuator-sma-female-fmat8002 Fairview Microwave FMAT8002

Call us

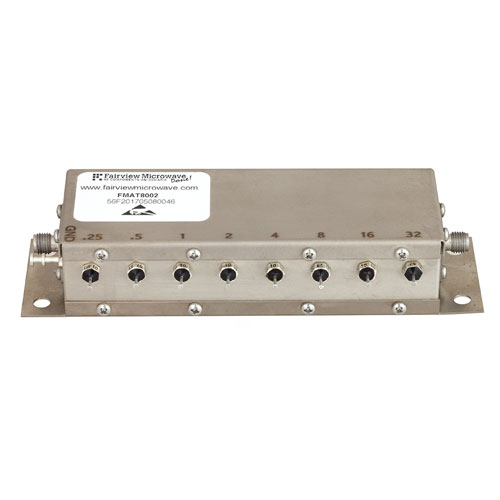

0 to 63.75 dB 8 Bit Programmable Relay Controlled Step Attenuator With a 0.25 dB Step SMA Female Rated To 0.5 Watts Up To 2 GHz

Compare

SKU FMAT8002

Starting price $2,160.00

Estimated shipment Call Us
