0 to 127 dB 7 Bit Programmable Relay Controlled Step Attenuator With a 1 dB Step SMA Female Rated To 1 Watt Up To 1.5 GHz

0 to 127 dB 7 Bit Programmable Relay Controlled Step Attenuator With a 1 dB Step SMA Female Rated To 1 Watt Up To 1.5 GHz

Name: 0 to 127 dB 7 Bit Programmable Relay Controlled Step Attenuator With a 1 dB Step SMA Female Rated To 1 Watt Up To 1.5 GHz
Brand: Fairview Microwave, Inc.
SKU: FMAT8005
Price: 3190.0 USD
Availability: InStock

Digital attenuator FMAT8005 from Fairview Microwave is manufactured in an coaxial programmable step attenuator design. Our connectorized programmable digital step attenuator has an input RF connector ...

Digital attenuator FMAT8005 from Fairview Microwave is manufactured in an coaxial programmable step attenuator design. Our connectorized programmable digital step attenuator has an input RF connector that is SMA. This SMA digital attenuator has female gender for input / output ports and 50 Ohm impedance.Fairview PIN diode programmable step attenuator is constructed to precise RF and microwave industry specifications and has a maximum attenuation value of 127 dB. Our SMA 127 dB digital step attenuator is built to operate up to a maximum frequency of 1.5 GHz and a maximum input power of 1 Watt. This radio frequency TTL controlled 7 bit digital attenuator with SMA connectors has a maximum VSWR of 1.4:1 and you can find more digital programmable step attenuator datasheet specifications above.Fairview Microwave coaxial digital variable step attenuator part number FMAT8005 is in-stock. Our TTL control adjustable digital RF attenuator that is programmable and PIN diode is only part of over one million components for RF, microwave and millimeter wave applications that are ready to ship same day worldwide.

Expand

SKU FMAT8005 FMAT8005 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Design

Relay Controlled

Maximum Frequency

1.5 GHz

Impedance

50 Ohm

Power Maximum

1 Watt

VSWR Maximum

1.4:1

Connector Series 1

SMA

Connector Gender 1

Female

Connector Series 2

SMA

Connector Gender 2

Female

Minimum Attenuation

0 dB

Maximum Attenuation

127 dB

Switching Time

6,000,000 ns

Attenuation Accuracy per Step

0.5 dB

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

127-db-ttl-controlled-step-attenuator-sma-female-fmat5008 Fairview Microwave FMAT5008

4 available

0 to 127 dB Programmable TTL Controlled Step Attenuator with a 1 dB Step SMA Female to SMA Female from 700 MHz to 3 GHz

Compare

SKU FMAT5008

Starting price $905.00

Estimated shipment Today

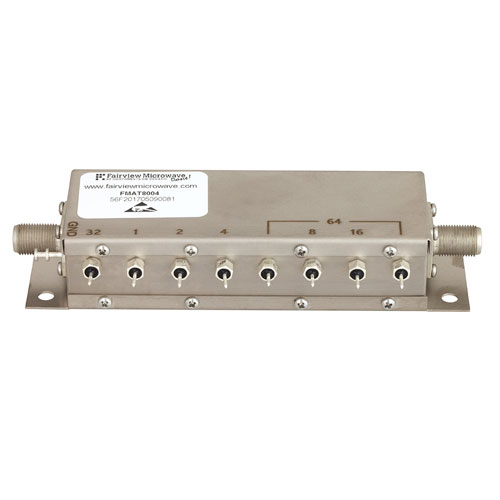

127-db-relay-controlled-step-attenuator-f-female-fmat8004 Fairview Microwave FMAT8004

Call us

0 to 127 dB 8 Bit Programmable Relay Controlled Step Attenuator With a 1 dB Step F Female Rated To 1 Watt Up To 1,000 MHz

Compare

SKU FMAT8004

Starting price $1,690.00

Estimated shipment Call Us

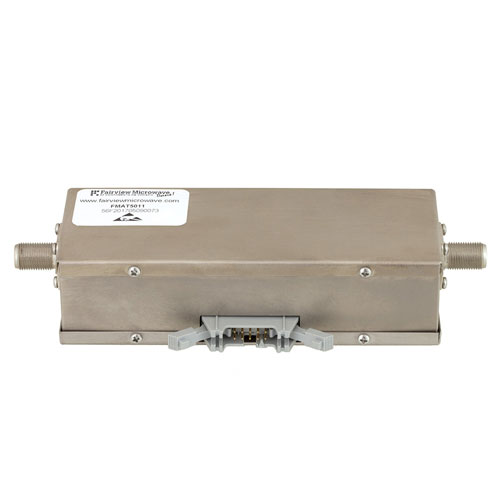

127-db-ttl-controlled-step-attenuator-f-female-fmat5011 Fairview Microwave FMAT5011
