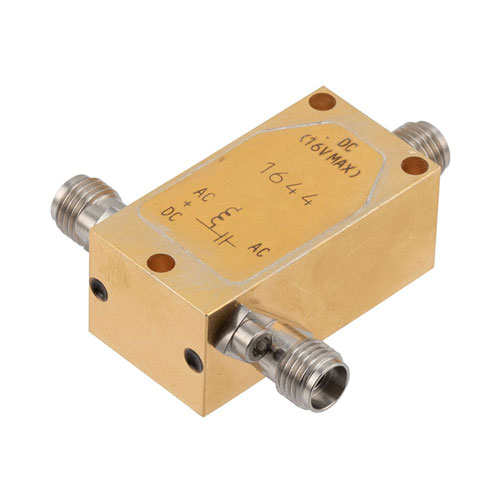

12 KHz to 40 GHz, 2.92mm Broadband Bias Tee, Rated 150 mA and 16 Volts, DC SMA Connector

12 KHz to 40 GHz, 2.92mm Broadband Bias Tee, Rated 150 mA and 16 Volts, DC SMA Connector

Bias Tee (sometimes called a bias T) FMBT1644 from Fairview is only one RF component of a large number of radio frequency products specifically stocked to be highly available for rapid shipment. Fairv...

Bias Tee (sometimes called a bias T) FMBT1644 from Fairview is only one RF component of a large number of radio frequency products specifically stocked to be highly available for rapid shipment. Fairview Microwave bias tee has an 2.92mm RF port that is female gender. Our 2.92mm bias tee design is rated for a minimum frequency of 0.012 MHz and a maximum frequency of 40 GHz. This broadband bias tee is available with 50 Ohm RF/DC port connector impedance.Fairview Microwave RF coaxial bias t / tee part number FMBT1644 has a SMA DC port connector with a female gender. This radio frequency wideband bias tee is manufactured to be rated for a max. DC voltage of 16 Volts and a max. current of 150 mA. Our high and low frequency bias tee with 2.92mm connector is designed with a maximum VSWR of 2.5:1 and a RF to bias isolation typical of 50 dB. Additional RF specs for this Fairview Microwave component can be found on the bias tee datasheet specifications PDF above. Our high and low frequency bias tee with 2.92mm connector is designed with a maximum VSWR of 2.5:1 and 1.7:1 typical VSWR.The Fairview Microwave’s FMBT1644 bias tee is a three-port network used for setting the DC bias point of some electronic components without disturbing other components. The FMBT1644 broadband bias tee operates at temperature ranging from 15 deg C to 30 deg C. The FMBT1644 2.92mm bias tee has typical and maximum insertion loss of 1.5 dB and 3 dB respectively. Our high-reliability bias tee is generally used to insert DC power into an AC signal to power remote antenna amplifiers or other devices.Our coaxial broadband bias tee is just part of more than one million RF, microwave and millimeter wave components we carry in-stock. This bias tee with 2.92mm RF port is ready to buy and be shipped worldwide. Fairview also stocks a selection of other radio frequency bias tees that ship same day from our warehouse along with rest of our RF, microwave and millimeter wave component products.

Expand

SKU FMBT1644 FMBT1644 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

RF Port Connector Series

2.92mm

DC Port Connector Series

SMA

Minimum Frequency

0.012 MHz

Maximum Frequency

40 GHz

RF Port Maximum VSWR

2.5:1

Maximum Voltage

16 Volts

Maximum DC Current

150 mA

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

bias-tee-0.012-mhz-40-ghz-150-ma-16-volts-dc-fmbt1640 Fairview Microwave FMBT1640

Call us

12 KHz to 40 GHz 2.92mm Broadband Bias Tee, Male Input, Rated to 150 mA and 16 Volts, DC SMA Connector

Compare

SKU FMBT1640

Starting price $3,080.00

Estimated shipment Call Us

bias-tee-0.012-mhz-40-ghz-150-ma-16-volts-dc-fmbt1645 Fairview Microwave FMBT1645

3 available

12 KHz to 40 GHz, 2.92mm Broadband Bias Tee, Rated 150 mA and 16 Volts, DC BNC Connector

Compare

SKU FMBT1645

Starting price $3,080.00

Estimated shipment Next Business Day

bias-tee-0.012-mhz-40-ghz-150-ma-16-volts-dc-fmbt1643 Fairview Microwave FMBT1643

1 available

12 KHz to 40 GHz, 2.92mm Broadband Bias Tee, Rated 150 mA and 16 Volts, DC Pin

Compare

SKU FMBT1643

Starting price $3,080.00

Estimated shipment Next Business Day

bias-tee-0.012-mhz-40-ghz-150-ma-16-volts-dc-fmbt1642 Fairview Microwave FMBT1642

1 available

12 KHz to 40 GHz, 2.92mm Broadband Bias Tee, Male Input, Rated to 150 mA nad 16 Volts, DC BNC Connector

Compare

SKU FMBT1642

Starting price $3,080.00

Estimated shipment Next Business Day
