SMA Bias Tee from 0.1 MHz to 18 GHz Rated to 700 mA and 50 Volts DC

SMA Bias Tee from 0.1 MHz to 18 GHz Rated to 700 mA and 50 Volts DC

Bias Tee (sometimes called a bias T) SB18000A from Fairview is only one RF component of a large number of radio frequency products specifically stocked to be highly available for rapid shipment. Fairv...

Bias Tee (sometimes called a bias T) SB18000A from Fairview is only one RF component of a large number of radio frequency products specifically stocked to be highly available for rapid shipment. Fairview Microwave bias tee has an SMA RF port that is female gender. Our SMA bias tee design is rated for a minimum frequency of 0.1 MHz and a maximum frquency of 18 GHz.Fairview Microwave RF coaxial bias t / tee part number SB18000A has a Solder Pin DC port connector. This radio frequency wideband bias tee is manufactured to be rated for a max. DC voltage of 50 Volts and a max. current of 700 mA. Our high and low frequency bias tee with SMA connector is designed with a maximum VSWR of 1.6:1 and a RF to bias isolation minimum of 40 dB. Additional RF specs for this Fairview Microwave component can be found on the bias tee datasheet specifications PDF above.Our coaxial broadband bias tee is just part of more than one million RF, microwave and millimeter wave components we carry in-stock. This bias tee with SMA RF port is ready to buy and be shipped worldwide. Fairview also stocks a selection of other radio frequency bias tees that ship same day from our warehouse along with rest of our RF, microwave and millimeter wave component products.

Expand

SKU SB18000A SB18000A -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

RF Port Connector Series

SMA

DC Port Connector Series

Solder Pin

Minimum Frequency

0.1 MHz

Maximum Frequency

18 GHz

RF Port Maximum VSWR

1.6:1

Maximum Voltage

50 Volts

Maximum DC Current

700 mA

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

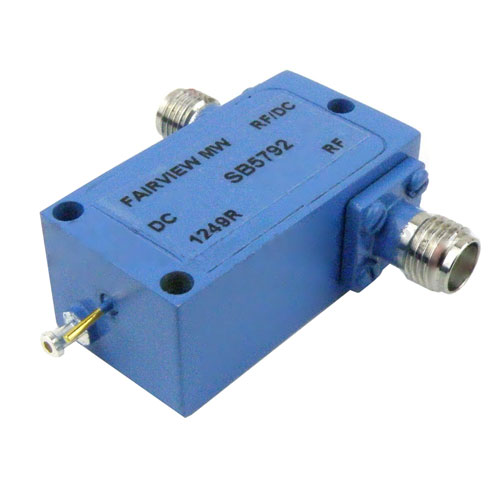

sma-bias-tee-0.1-mhz-12.4-ghz-700-ma-50-volts-dc-sb5792 Fairview Microwave SB5792

8 available

SMA Bias Tee from 0.1 MHz to 12.4 GHz Rated to 700 mA and 50 Volts DC

Compare

SKU SB5792

Starting price $1,150.00

Estimated shipment Next Business Day

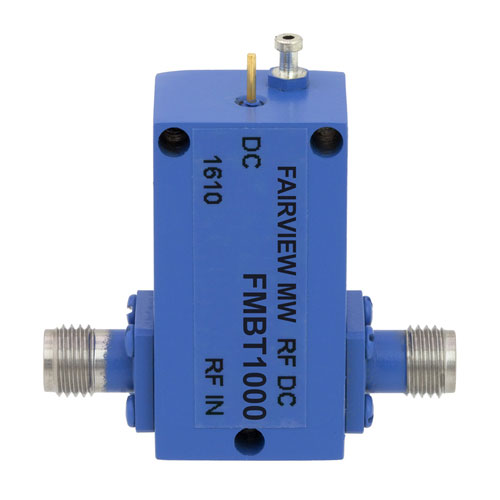

sma-bias-tee-500-mhz-10-ghz-700-ma-50-volts-dc-fmbt1000 Fairview Microwave FMBT1000

undefined

SMA Bias Tee from 500 MHz to 10 GHz Rated to 700 mA and 50 Volts DC

Compare

SKU FMBT1000

Starting price $571.43

Estimated shipment Call Us

sma-bias-tee-100-mhz-6-ghz-500-ma-50-volts-dc-sb6000a Fairview Microwave SB6000A

4 available

SMA Bias Tee from 100 MHz to 6 GHz Rated to 500 mA and 50 Volts DC

Compare

SKU SB6000A

Starting price $560.00

Estimated shipment Next Business Day

sma-bias-tee-10-mhz-3-ghz-3000-ma-50-volts-dc-sb3000 Fairview Microwave SB3000

11 available

SMA Bias Tee from 10 MHz to 3 GHz Rated to 3000 mA and 50 Volts DC

Compare

SKU SB3000

Starting price $570.00

Estimated shipment Next Business Day
