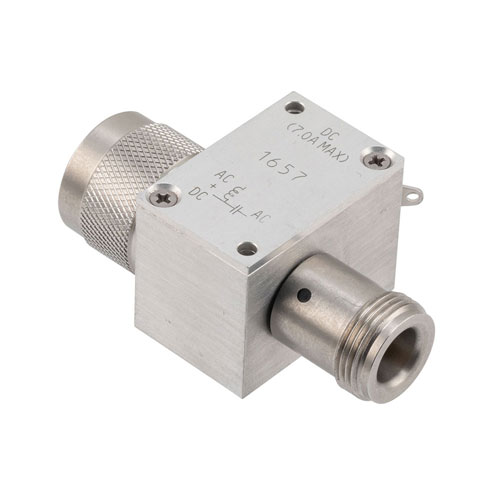

0.5 GHz to 2 GHz, N Type High Currnet Bias Tee, Rated 7 Amps and 100 Volts, DC Pin

0.5 GHz to 2 GHz, N Type High Currnet Bias Tee, Rated 7 Amps and 100 Volts, DC Pin

Bias Tee (sometimes called a bias T) FMBT1657 from Fairview is only one RF component of a large number of radio frequency products specifically stocked to be highly available for rapid shipment. Fairv...

Bias Tee (sometimes called a bias T) FMBT1657 from Fairview is only one RF component of a large number of radio frequency products specifically stocked to be highly available for rapid shipment. Fairview Microwave bias tee has an N RF port that is male gender. Our N bias tee design is rated for a minimum frequency of 500 MHz and a maximum frequency of 2 GHz. This broadband bias tee is available with 50 Ohm RF/DC port connector impedance.Fairview Microwave RF coaxial bias t / tee part number FMBT1657 has a DC DC port connector with a pin gender. This radio frequency wideband bias tee is manufactured to be rated for a max. DC voltage of 100 Volts and a max. current of 7,000 mA. Our high and low frequency bias tee with N connector is designed with a maximum VSWR of 1.4:1 and a RF to bias isolation typical of 30 dB. Additional RF specs for this Fairview Microwave component can be found on the bias tee datasheet specifications PDF above. Our high and low frequency bias tee with N connector is designed with a maximum VSWR of 1.4:1 and 1.2:1 typical VSWR.The Fairview Microwave’s FMBT1657 bias tee is a three-port network used for setting the DC bias point of some electronic components without disturbing other components. The FMBT1657 broadband bias tee operates at temperature ranging from -55 deg C to 105 deg C. The FMBT1657 N bias tee has typical and maximum insertion loss of 0.2 dB and 0.5 dB respectively. Our high-reliability bias tee is generally used to insert DC power into an AC signal to power remote antenna amplifiers or other devices.Our coaxial broadband bias tee is just part of more than one million RF, microwave and millimeter wave components we carry in-stock. This bias tee with N RF port is ready to buy and be shipped worldwide. Fairview also stocks a selection of other radio frequency bias tees that ship same day from our warehouse along with rest of our RF, microwave and millimeter wave component products.

Expand

SKU FMBT1657 FMBT1657 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

RF Port Connector Series

N

DC Port Connector Series

DC

Minimum Frequency

500 MHz

Maximum Frequency

2 GHz

RF Port Maximum VSWR

1.4:1

Maximum Voltage

100 Volts

Maximum DC Current

7,000 mA

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
