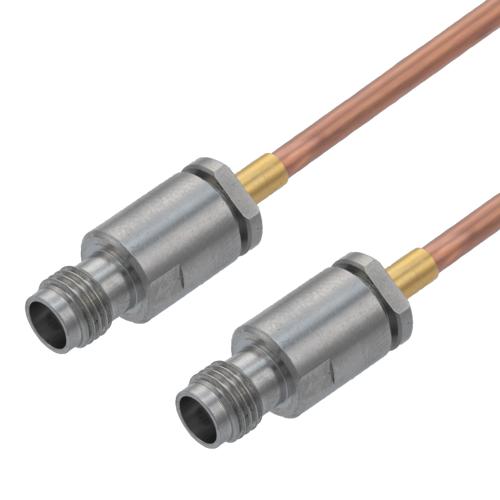

1.85mm Female to 1.85mm Female Cable RG405 Type .086 Semi-Rigid Coax

1.85mm Female to 1.85mm Female Cable RG405 Type .086 Semi-Rigid Coax

RF cable assembly part number FMCA100194 from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxi...

RF cable assembly part number FMCA100194 from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense/military, aerial antenna towers, etc. The 50 Ohm FMCA100194 cable assembly, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide. This Fairview Microwave RF coaxial assembly is manufactured with a 1.85mm cable connection on one end and a 1.85mm cable connection on the other end. Our 1.85mm cable assembly has a female (jack) gender on end one and female (jack) on end two. Cable assembly FMCA100194 is built in a female to female coaxial assembly design and will ship quickly after the purchase. This RF cable assembly operates at a maximum frequency of 40 GHz. Our cable assemblies are constructed using durable and flexible materials with a 0.05-inch bend radius to withstand repetitive movements, ensuring reliable performance over extended periods. The FMCA100194 1.85mm female to 1.85mm female RF cable assembly from Fairview Microwave has a maximum VSWR of 1.4:1. This in-series cable assembly can withstand temperatures ranging from -55 to 100 deg C. Fairview Microwave’s 1.85mm female to 1.85mm female cable assembly FMCA100194 is built with FM-SR086CU-COIL coax and it is a semi-rigid coax design. Our cable assembly is manufactured with 1.85mm to 1.85mm cable connectors and has a 50 Ohm impedance. Both connectors have a clamp/solder attachment method and a stainless steel body with passivated plating. This RF cable assembly with a 0.5-inch diameter has copper clad steel as the cable’s inner conducting material and PTFE dielectric type. Additional dimensions, specifications and CAD drawings for this FMCA100194 RF cable are available on our downloadable PDF datasheet. 1.85mm female to 1.85mm female coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality 1.85mm to 1.85mm cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview Microwave is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of 1.85mm cable assemblies can also be built and shipped quickly as well. For further information on similar products, our expert technical support and trained sales team can get you the ideal 1.85mm to 1.85mm RF cable assembly as per your requirements.

Expand

SKU FMCA100194 FMCA100194 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

1.85mm

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

None

Connector Impedance 1

50

Connector Series 2

1.85mm

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

FM-SR086CU-COIL

RF Cable Type

FM-SR086CU-COIL

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
