10KV Female Bulkhead to MHV Female Cable RG303HV Coax

10KV Female Bulkhead to MHV Female Cable RG303HV Coax

RF cable assembly part number FMCA9788 10KV female bulkhead to MHV female cable RG303HV coax from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconn...

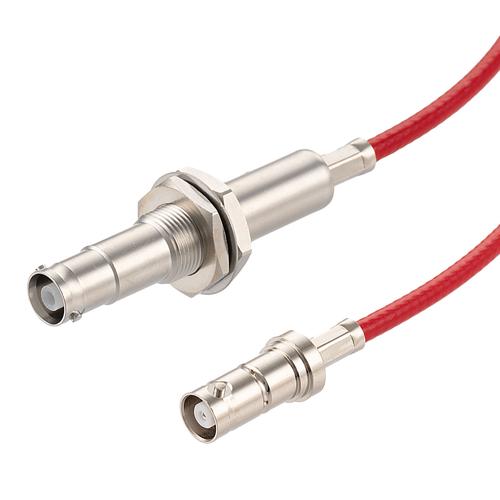

RF cable assembly part number FMCA9788 10KV female bulkhead to MHV female cable RG303HV coax from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. The 50 Ohm like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide. This Fairview Microwave RF coaxial assembly is manufactured with a 10KV cable connection on one end and a MHV cable connection on the other end. Our 10KV cable assembly has a female jack on end one and female jack on end two. 10KV cable FMCA9788 is built in a female to female coaxial assembly design and will ship quickly after the purchase. This red RF cable assembly features 10,000 Vdc max DC voltage and has an FEP jacket with 0.169 inches diameter. Our 10KV cable assemblies are designed for high voltage applications, such as semiconductor fab and test and measurement. These cable assemblies are constructed with materials, capable of withstanding higher voltages, ensuring safety, and preventing electrical breakdown. Our 10KV high voltage RF cable assemblies are designed to handle higher voltages and minimize the risk of electric shock. This RF coaxial assembly features voltage rating of 10KV and recessed contacts to withstand unmated higher voltage. These cable assemblies are commonly used in high voltage power supplies/amplifiers, nuclear instrumentation and test and measurement equipment where high voltage transmission and RF signal integrity are critical. Our cable assemblies are constructed using durable and flexible materials with 0.788 inch bend radius to withstand repetitive movements, ensuring reliable performance over extended periods. Fairview Microwave 10KV female to MHV female cable assembly FMCA9788 is built with RG303HV coax and it is a coax design. Our 10KV cable assembly is manufactured with 50 Ohm 10KV to 50 Ohm MHV cable connectors and has a 50 Ohm impedance. Both the connectors have a crimp/solder attachment method and a brass body with tinned copper plating. This RF cable assembly with 0.5 inches diameter has silver as cable inner conducting material and FEP dielectric type. RF specs for this 10KV female bulkhead to MHV female cable can be found on its specifications datasheet PDF above. Keep in mind that FMCA9788 can also be used in the other direction as a MHV female to 10KV female cable because the assembly operates in both directions. 10KV femalebulkhead to MHV female coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality 10KV to MHV cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of 10KV cable assemblies can also be built and shipped quickly as well. Custom cable assemblies for radio, antenna, RF component inter connection and more for production, test and measurement labs, military / defense, aerospace, telecom and other RF applications for cables can be easily built.

Expand

SKU FMCA9788 FMCA9788 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

10KV

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

Bulkhead

Connector Impedance 1

50

Connector Series 2

MHV

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

RG303HV

RF Cable Type

RG303HV

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
