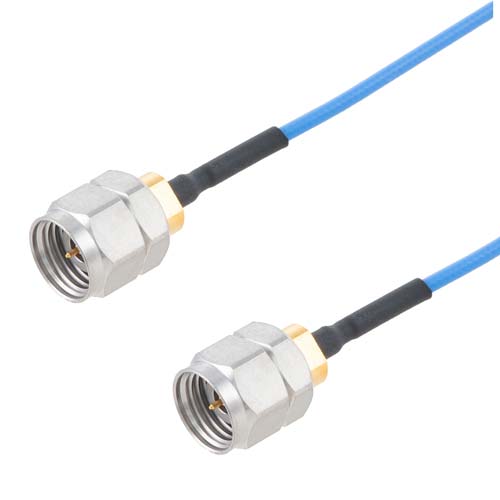

2.4mm Male to 2.4mm Male Cable FM-P047 Coax

2.4mm Male to 2.4mm Male Cable FM-P047 Coax

RF cable assembly part number FMCA9971 2.4mm male to 2.4mm male cable FM-P047 coax from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with R...

RF cable assembly part number FMCA9971 2.4mm male to 2.4mm male cable FM-P047 coax from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. The 50 Ohm FMCA9971 cable assembly like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide. This Fairview Microwave RF coaxial assembly is manufactured with a 2.4mm cable connection on one end and a 2.4mm cable connection on the other end. Our 2.4mm cable assembly has a male plug on end one and male plug on end two. 2.4mm cable FMCA9971 is built in a male to male coaxial assembly design and will ship quickly after the purchase. This BL RF cable assembly has an FEP jacket with 0.056 inches diameter. This RF cable assembly operates at a maximum frequency of 50 GHz. Our flexible cable assemblies are constructed using durable and flexible materials with 0.4 inch bend radius to withstand repetitive movements, ensuring reliable performance over extended periods. The minimum bend radius for flexible cable assemblies is 0.2 inch, allowing for a single bend without damaging the cable. Our flexible cable assemblies have an FEP jacket with 0.056 inches of jacket diameter. Fairview Microwave 2.4mm male to 2.4mm male cable assembly FMCA9971 is built with FM-P047 coax and it is a flexible coax design. Our cable assembly is manufactured with 2.4mm to 2.4mm cable connectors and has a 50 Ohm impedance. Both connectors have a solder attachment method and a beryllium copper body with gold over nickel plating. This RF cable assembly with 0.5 inches diameter has copper as cable inner conducting material and FEP dielectric type. Additional dimensions, specifications and CAD drawings for this FMCA9971 RF cable are available on our downloadable PDF datasheet. 2.4mm male to 2.4mm male coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality 2.4mm to 2.4mm cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of 2.4mm cable assemblies can also be built and shipped quickly as well. For further information on similar products, our expert technical support and trained sales team can get you the ideal 2.4mm RF cable assembly as per your requirements.

Expand

SKU FMCA9971 FMCA9971 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

2.4mm

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

None

Connector Impedance 1

50

Connector Series 2

2.4mm

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

FM-P047

RF Cable Type

FM-P047

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
