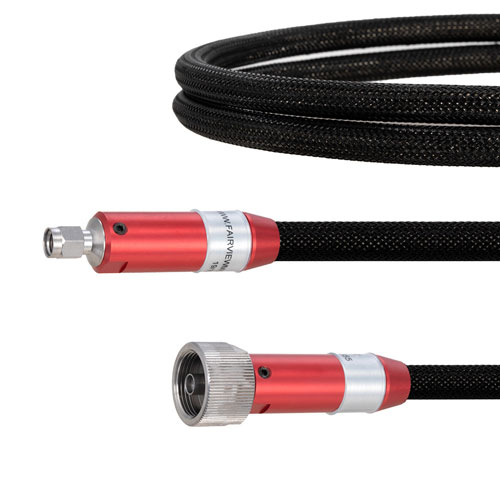

Vector Network Analyzer (VNA) Ruggedized 40 GHz Test Cable 2.92mm NMD Female to 2.92mm Male

Vector Network Analyzer (VNA) Ruggedized 40 GHz Test Cable 2.92mm NMD Female to 2.92mm Male

RF cable assembly part number FM40VNA007 vector network analyzer (VNA) ruggedized 40 GHz test cable 2.92mm NMD female to 2.92mm male, RoHS from Fairview Microwave is one of a huge selection of coaxial...

RF cable assembly part number FM40VNA007 vector network analyzer (VNA) ruggedized 40 GHz test cable 2.92mm NMD female to 2.92mm male, RoHS from Fairview Microwave is one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. Vector network analyzer (VNA) ruggedized 40 GHz test cable 2.92mm NMD female to 2.92mm male, RoHS, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide.This Fairview Microwave RF coaxial assembly is manufactured with 2.92mm NMD cable connection on one end and a 2.92mm cable connection on the other end. Our 2.92mm NMD cable assembly has a female gender on end one and male on end two. 2.92mm NMD cable FM40VNA007 is built in a female to male coaxial assembly design and will ship quickly after the purchase.Fairview 2.92mm NMD female to 2.92mm male cable assembly FM40VNA007 is built with Vector Network Analyzer (VNA) Ruggedized coax and it is a flexible design. Our 2.92mm NMD cable assembly is manufactured with 50 Ohm 2.92mm NMD to 50 Ohm 2.92mm cable connectors and has a 50 Ohm impedance for the cable. RF specs for this 2.92mm NMD female to 2.92mm male cable can be found on its specifications datasheet PDF above. Keep in mind that FM40VNA007 can also be used as a 2.92mm male to 2.92mm NMD female cable because the assembly operates in both directions.2.92mm NMD female to 2.92mm male coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality 2.92mm NMD to 2.92mm cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of 2.92mm NMD cable assemblies can also be built and shipped quickly as well. Custom cable assemblies for radio, antenna, RF component inter connection and more for production, test and measurement labs, military / defense, aerospace, telecom and other RF applications for cables can be easily built.

Expand

SKU FM40VNA007 FM40VNA007 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Length

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Key specifications

Datasheet

View All

Connector Series 1

2.92mm NMD

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

None

Connector Impedance 1

50

Connector Series 2

2.92mm

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

FM-VNA-R

RF Cable Type

VNA-R

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

SVHC (01/2025) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

Warning

This product can expose you to chemicals including phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
