20KV Female Bulkhead to C Male Cable RG213HV Coax

20KV Female Bulkhead to C Male Cable RG213HV Coax

RF cable assembly part number FMCA9794 20KV female bulkhead to C male cable RG213HV coax from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect ...

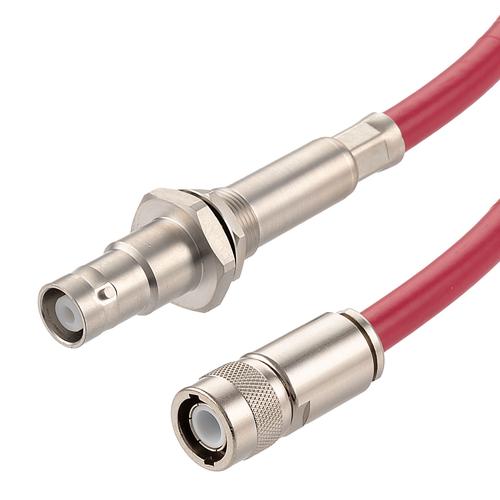

RF cable assembly part number FMCA9794 20KV female bulkhead to C male cable RG213HV coax from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. The 50 Ohm like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide. This Fairview Microwave RF coaxial assembly is manufactured with a 20KV cable connection on one end and a type C cable connection on the other end. Our 20KV cable assembly has a female jack on end one and male plug on end two. 20KV cable FMCA9794 is built in a female to male coaxial assembly design and will ship quickly after the purchase. This red RF cable assembly features 20,000 Vdc max DC voltage and has a polyurethane jacket with 0.394 inches diameter. Our 20KV cable assemblies are designed for high voltage applications, such as semiconductor fab and test and measurement. These cable assemblies are constructed with materials, capable of withstanding higher voltages, ensuring safety, and preventing electrical breakdown. Our 20KV high voltage RF cable assemblies are designed to handle higher voltages and minimize the risk of electric shock. This RF coaxial assembly features voltage rating of 10KV and recessed contacts to withstand unmated higher voltage. These cable assemblies are commonly used in high voltage power supplies/amplifiers, nuclear instrumentation and test and measurement equipment where high voltage transmission and RF signal integrity are critical. Our cable assemblies are constructed using durable and flexible materials with 1.969 inch bend radius to withstand repetitive movements, ensuring reliable performance over extended periods. Fairview Microwave 20KV female to type C male cable assembly FMCA9794 is built with RG213HV coax and it is a coax design. Our 20KV cable assembly is manufactured with 50 Ohm 20KV to 50 Ohm C type cable connectors and has a 50 Ohm impedance. Both the connectors have a crimp/solder attachment method and a brass body with nickel over copper plating. This RF cable assembly with 0.5 inches diameter has copper as cable inner conducting material and PE dielectric type. RF specs for this 20KV female bulkhead to type C male cable can be found on its specifications datasheet PDF above. Keep in mind that FMCA9794 can also be used in the other direction as a type C male to 20KV female cable because the assembly operates in both directions. 20KV femalebulkhead to C type male coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality 20KV to C type cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of 20KV cable assemblies can also be built and shipped quickly as well. Custom cable assemblies for radio, antenna, RF component inter connection and more for production, test and measurement labs, military / defense, aerospace, telecom and other RF applications for cables can be easily built.

Expand

SKU FMCA9794 FMCA9794 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

20KV

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

Bulkhead

Connector Impedance 1

50

Connector Series 2

C

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

RG213HV

RF Cable Type

RG213HV

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99
