Low PIM 4.1/9.5 Mini DIN Male to 7/16 DIN Male Cable TFT-5G-402 Coax Using Times Microwave Components

Low PIM 4.1/9.5 Mini DIN Male to 7/16 DIN Male Cable TFT-5G-402 Coax Using Times Microwave Components

RF cable assembly part number FMCA2472 from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial...

RF cable assembly part number FMCA2472 from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense/military, aerial antenna towers, etc. The 50 Ohm FMCA2472 cable assembly, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide. This Fairview Microwave RF coaxial assembly is manufactured with a 4.1/9.5 mini DIN cable connection on one end and a 7/16 DIN cable connection on the other end. Our 4.1/9.5 mini DIN to 7/16 DIN cable assembly has a male (plug) gender on end one and male (plug) on end two. Cable assembly FMCA2472 is built in a male to male coaxial assembly design and will ship quickly after the purchase. This blue RF cable assembly has an FEP jacket with a 0.160-inch diameter. This low PIM RF cable assembly operates at a maximum frequency of 3 GHz. 4.1/9.5 Mini DINlow PIM cable assemblies from Fairview Microwave are ideal for applications including indoor and outdoor use and plenum rated applications. The minimum bend radius for flexible cable assemblies is 0.75 inch, allowing for a single bend without damaging the cable. The FMCA2472 4.1/9.5 Mini DIN male to 7/16 DIN male RF cable assembly from Fairview Microwave has a maximum VSWR of 1.4:1. This between series cable assembly can withstand temperatures ranging from -40 to 85 deg C. Our low PIM RF cable comes with a minimum RF shielding of 80 dB. Fairview Microwave’s 4.1/9.5 mini DIN male to 7/16 DIN male cable assembly FMCA2472 is built with TFT-5G-402 coax and it is a flexible coax design. Our low PIM cable assembly is manufactured with 4.1/9.5 Mini DIN to 7/16 DIN cable connectors and has a 50 Ohm impedance. Both connectors have a solder/solder attachment method and a brass body with tri-metal plating. This RF cable assembly with a 1.25-inch diameter has copper as the cable’s inner conducting material and PTFE dielectric type. Additional dimensions, specifications and CAD drawings for this FMCA2472 low PIM RF cable are available on our downloadable PDF datasheet. 4.1/9.5 mini DIN male to 7/16 DIN male coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality 4.1/9.5 mini DIN to 7/16 DIN cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview Microwave is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of 4.1/9.5 Mini DIN and 7/16 DIN cable assemblies can also be built and shipped quickly as well. For further information on similar products, our expert technical support and trained sales team can get you the ideal 4.1/9.5 Mini DIN to 7/16 DIN low PIM RF cable assembly as per your requirements.

Expand

SKU FMCA2472 FMCA2472 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

4.1/9.5 Mini DIN

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

None

Connector Impedance 1

50

Connector Series 2

7/16 DIN

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

TFT-5G-402

RF Cable Type

TFT-5G-402

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

low-pim-4.1-9.5-mini-din-male-7-16-din-male-cable-tft-5g-402-coax-fmca2472-12 Fairview Microwave FMCA2472-12

14 available

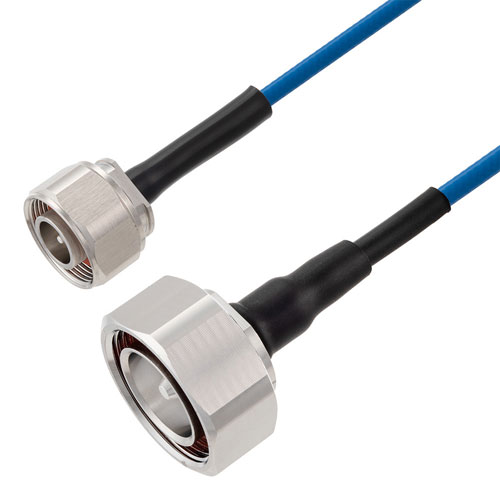

Low PIM 4.1/9.5 Mini DIN Male to 7/16 DIN Male Cable TFT-5G-402 Coax in 12 Inch Using Times Microwave Components

Compare

SKU FMCA2472-12

Starting price $71.99

Estimated shipment Tomorrow

low-pim-4.1-9.5-mini-din-male-ra-7-16-din-male-cable-tft-5g-402-coax-fmca2473 Fairview Microwave FMCA2473

14 available

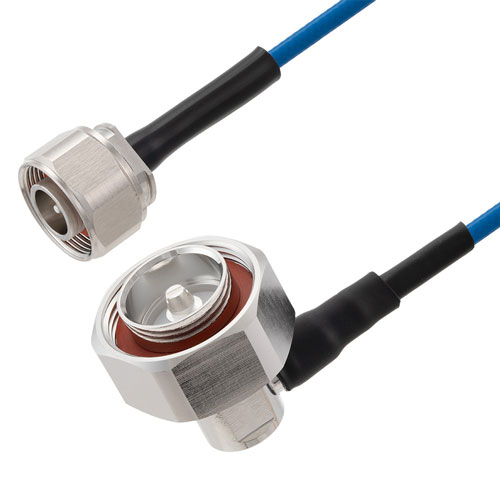

Low PIM 4.1/9.5 Mini DIN Male to RA 7/16 DIN Male Cable TFT-5G-402 Coax Using Times Microwave Components

Compare

SKU FMCA2473

Starting price $77.99

Estimated shipment Tomorrow

low-pim-4.1-9.5-mini-din-female-7-16-din-male-cable-tft-5g-402-coax-fmca2468 Fairview Microwave FMCA2468

29 available

Low PIM 4.1/9.5 Mini DIN Female to 7/16 DIN Male Cable TFT-5G-402 Coax Using Times Microwave Components

Compare

SKU FMCA2468

Starting price $66.99

Estimated shipment Tomorrow

low-pim-4.1-9.5-mini-din-female-ra-7-16-din-male-cable-tft-5g-402-coax-fmca2469 Fairview Microwave FMCA2469

15 available

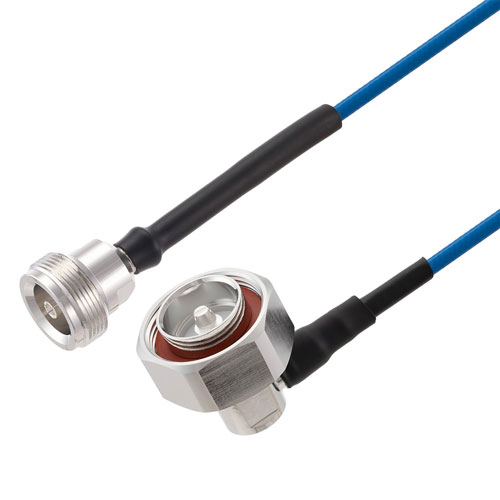

Low PIM 4.1/9.5 Mini DIN Female to RA 7/16 DIN Male Cable TFT-5G-402 Coax Using Times Microwave Components

Compare

SKU FMCA2469

Starting price $73.99

Estimated shipment Tomorrow
