Low PIM 4.3-10 Male to 7/16 DIN Female Plenum Cable SPP-250-LLPL Coax with LF Solder

Low PIM 4.3-10 Male to 7/16 DIN Female Plenum Cable SPP-250-LLPL Coax with LF Solder

RF cable assembly part number FMCA1783 low PIM 4.3-10 male to 7/16 DIN female plenum cable SPP-250-LLPL coax and RoHS with LF solder from Fairview Microwave is one of a huge selection of coaxial cable...

RF cable assembly part number FMCA1783 low PIM 4.3-10 male to 7/16 DIN female plenum cable SPP-250-LLPL coax and RoHS with LF solder from Fairview Microwave is one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. Low PIM 4.3-10 male to 7/16 DIN female plenum cable SPP-250-LLPL coax and RoHS with LF solder, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide.This Fairview Microwave RF coaxial assembly is manufactured with 4.3-10 cable connection on one end and a 7/16 DIN cable connection on the other end. Our 4.3-10 cable assembly has a male gender on end one and female on end two. 4.3-10 cable FMCA1783 is built in a male to female coaxial assembly design and will ship quickly after the purchase.Fairview 4.3-10 male to 7/16 DIN female cable assembly FMCA1783 is built with SPP-250-LLPL coax and it is a corrugated design. Our 4.3-10 cable assembly is manufactured with 50 Ohm 4.3-10 to 50 Ohm 7/16 DIN cable connectors and has a 50 Ohm impedance for the cable. RF specs for this 4.3-10 male to 7/16 DIN female cable can be found on its specifications datasheet PDF above. Keep in mind that FMCA1783 can also be used as a 7/16 DIN female to 4.3-10 male cable because the assembly operates in both directions.4.3-10 male to 7/16 DIN female coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality 4.3-10 to 7/16 DIN cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of 4.3-10 cable assemblies can also be built and shipped quickly as well. Custom cable assemblies for radio, antenna, RF component inter connection and more for production, test and measurement labs, military / defense, aerospace, telecom and other RF applications for cables can be easily built.

Expand

SKU FMCA1783 FMCA1783 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

4.3-10

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

None

Connector Impedance 1

50

Connector Series 2

7/16 DIN

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

SPP-250-LLPL

RF Cable Type

SPP-250-LLPL

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

No Substance(s) Present Above Threshold

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

4.3-10-male-7-16-din-female-cable-spp250llpl-coax-fmca1783-50cm Fairview Microwave FMCA1783-50CM

31 available

Low PIM 4.3-10 Male to 7/16 DIN Female Plenum Cable SPP-250-LLPL Coax in 50 cm with LF Solder

Compare

SKU FMCA1783-50CM

Starting price $125.99

Estimated shipment Next Business Day

4.3-10-female-7-16-din-male-cable-spp250llpl-coax-fmca1766 Fairview Microwave FMCA1766

9 available

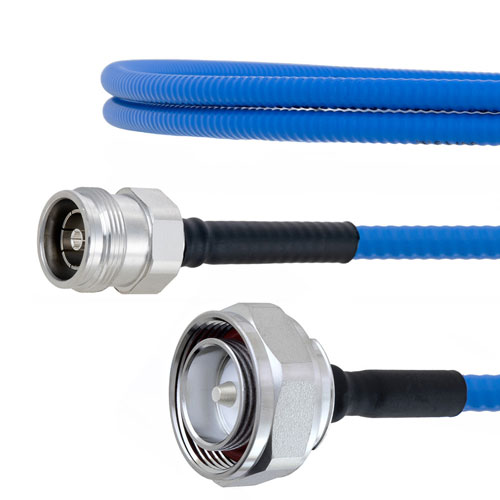

Low PIM 4.3-10 Female to 7/16 DIN Male Plenum Cable SPP-250-LLPL Coax with LF Solder

Compare

SKU FMCA1766

Starting price $127.99

Estimated shipment Next Business Day

low-pim-4.3-10-male-7-16-din-female-cable-spp250llpl-coax-fmca1900 Fairview Microwave FMCA1900

21 available

Plenum Low PIM 4.3-10 Male to 7/16 DIN Female Cable SPP-250-LLPL Coax Using Times Microwave Parts

Compare

SKU FMCA1900

Starting price $95.99

Estimated shipment Next Business Day

low-pim-4.3-10-female-7-16-din-male-cable-spp250llpl-coax-fmca1903 Fairview Microwave FMCA1903

11 available

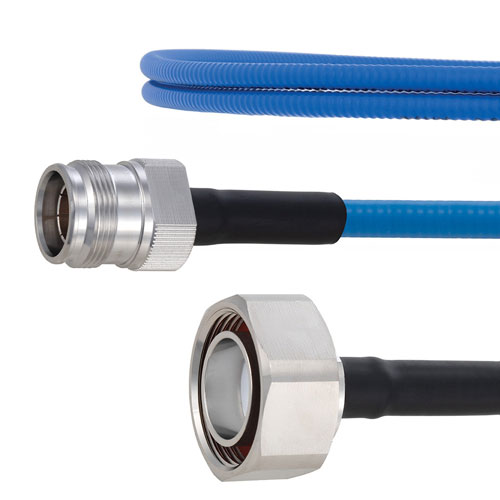

Plenum Low PIM 4.3-10 Female to 7/16 DIN Male Cable SPP-250-LLPL Coax Using Times Microwave Parts
