Plenum Low PIM 7/16 DIN Male to SMA Male Cable SPP-250-LLPL Coax Using Times Microwave Parts

Plenum Low PIM 7/16 DIN Male to SMA Male Cable SPP-250-LLPL Coax Using Times Microwave Parts

RF cable assembly part number FMCA1864 plenum low PIM 7/16 DIN male to SMA male cable SPP-250-LLPL coax using Times Microwave parts and RoHS from Fairview Microwave is one of a huge selection of coaxi...

RF cable assembly part number FMCA1864 plenum low PIM 7/16 DIN male to SMA male cable SPP-250-LLPL coax using Times Microwave parts and RoHS from Fairview Microwave is one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. Plenum low PIM 7/16 DIN male to SMA male cable SPP-250-LLPL coax using Times Microwave parts and RoHS, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide.This Fairview Microwave RF coaxial assembly is manufactured with 7/16 DIN cable connection on one end and a SMA cable connection on the other end. Our 7/16 DIN cable assembly has a male gender on end one and male on end two. 7/16 DIN cable FMCA1864 is built in a male to male coaxial assembly design and will ship quickly after the purchase.Fairview 7/16 DIN male to SMA male cable assembly FMCA1864 is built with SPP-250-LLPL coax and it is a corrugated design. Our 7/16 DIN cable assembly is manufactured with 50 Ohm 7/16 DIN to 50 Ohm SMA cable connectors and has a 50 Ohm impedance for the cable. RF specs for this 7/16 DIN male to SMA male cable can be found on its specifications datasheet PDF above. Keep in mind that FMCA1864 can also be used as a SMA male to 7/16 DIN male cable because the assembly operates in both directions.7/16 DIN male to SMA male coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality 7/16 DIN to SMA cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of 7/16 DIN cable assemblies can also be built and shipped quickly as well. Custom cable assemblies for radio, antenna, RF component inter connection and more for production, test and measurement labs, military / defense, aerospace, telecom and other RF applications for cables can be easily built.

Expand

SKU FMCA1864 FMCA1864 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

7/16 DIN

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

None

Connector Impedance 1

50

Connector Series 2

SMA

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

SPP-250-LLPL

RF Cable Type

SPP-250-LLPL

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

low-pim-7-16-din-male-sma-male-cable-spp250llpl-coax-fmca1864-50cm Fairview Microwave FMCA1864-50CM

Call us

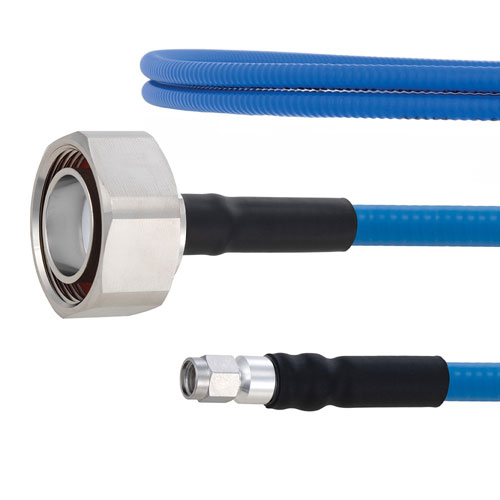

Plenum Low PIM 7/16 DIN Male to SMA Male Cable SPP-250-LLPL Coax in 50 cm Using Times Microwave Parts

Compare

SKU FMCA1864-50CM

Starting price $87.99

Estimated shipment Call Us

low-pim-7-16-male-7-16-male-cable-spp250llpl-coax-fmca1851 Fairview Microwave FMCA1851

10 available

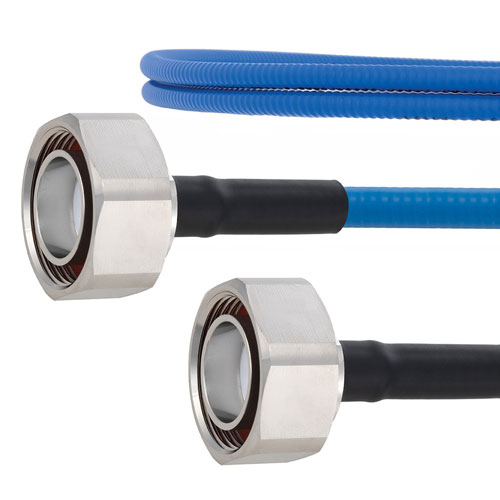

Plenum Low PIM 7/16 DIN Male to 7/16 DIN Male Cable SPP-250-LLPL Coax Using Times Microwave Parts

Compare

SKU FMCA1851

Starting price $82.99

Estimated shipment Tomorrow

low-pim-7-16-din-male-ra-sma-male-cable-spp250llpl-coax-fmca1865 Fairview Microwave FMCA1865

20 available

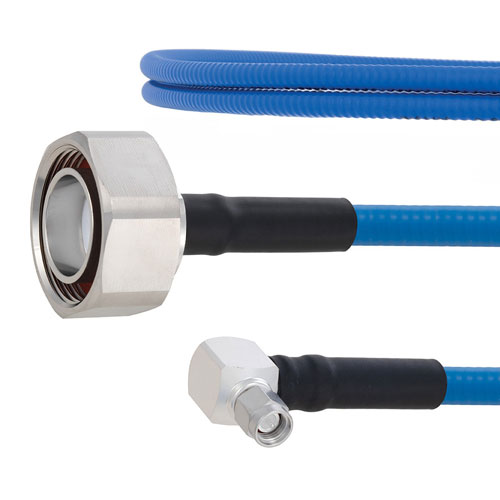

Plenum Low PIM 7/16 DIN Male to RA SMA Male Cable SPP-250-LLPL Coax Using Times Microwave Parts

Compare

SKU FMCA1865

Starting price $89.99

Estimated shipment Tomorrow

low-pim-7-16-male-ra-7-16-male-cable-spp250llpl-coax-fmca1858 Fairview Microwave FMCA1858

1 available

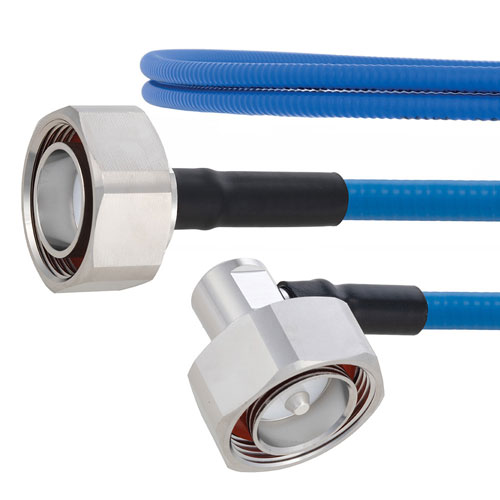

Plenum Low PIM 7/16 DIN Male to RA 7/16 DIN Male Cable SPP-250-LLPL Coax Using Times Microwave Parts
