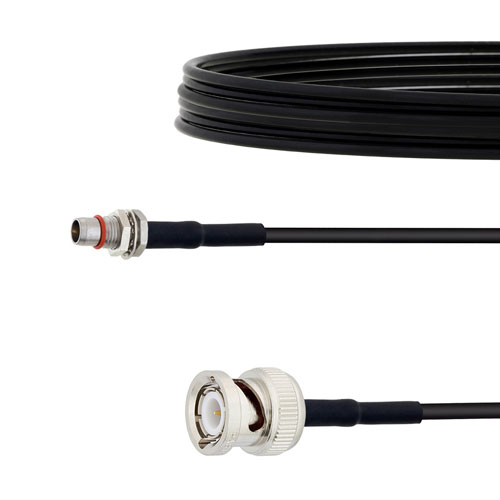

Slide-On BMA Plug Bulkhead to BNC Male Cable LMR-100 Coax

Slide-On BMA Plug Bulkhead to BNC Male Cable LMR-100 Coax

RF cable assembly part number FMCA1649 slide-on BMA plug bulkhead to BNC male cable LMR-100 coax from Fairview Microwave is one of a huge selection of coaxial cables for radio, antenna and interconnec...

RF cable assembly part number FMCA1649 slide-on BMA plug bulkhead to BNC male cable LMR-100 coax from Fairview Microwave is one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. Slide-on BMA plug bulkhead to BNC male cable LMR-100 coax, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide.This Fairview Microwave RF coaxial assembly is manufactured with BMA cable connection on one end and a BNC cable connection on the other end. Our BMA cable assembly has a plug gender on end one and male on end two. BMA cable FMCA1649 is built in a plug to male coaxial assembly design and will ship quickly after the purchase.Fairview BMA plug to BNC male cable assembly FMCA1649 is built with LMR-100 coax and it is a flexible design. Our BMA cable assembly is manufactured with 50 Ohm BMA to 50 Ohm BNC cable connectors and has a 50 Ohm impedance for the cable. RF specs for this BMA plug bulkhead to BNC male cable can be found on its specifications datasheet PDF above. Keep in mind that FMCA1649 can also be used as a BNC male to BMA plug cable because the assembly operates in both directions.BMA plug bulkhead to BNC male coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality BMA to BNC cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of BMA cable assemblies can also be built and shipped quickly as well. Custom cable assemblies for radio, antenna, RF component inter connection and more for production, test and measurement labs, military / defense, aerospace, telecom and other RF applications for cables can be easily built.* LMR™ is a trademark of Times Microwave Systems.

Expand

SKU FMCA1649 FMCA1649 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

BMA

Connector Gender 1

Plug

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

Bulkhead

Connector Impedance 1

50

Connector Series 2

BNC

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

LMR-100A-PVC

RF Cable Type

LMR-100A-PVC

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
