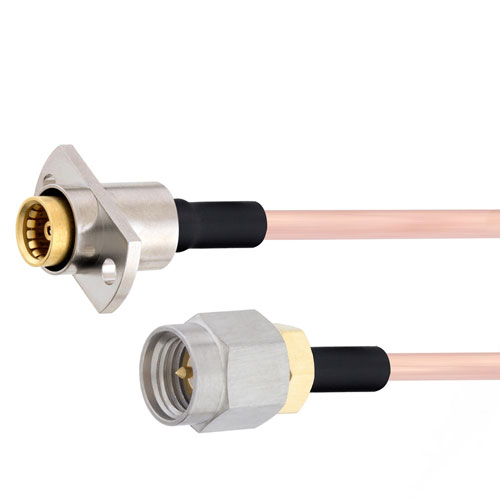

Slide-On BMA Jack 2 Hole Flange to SMA Male Cable RG405 Type .086 Coax in 12 Inch

Slide-On BMA Jack 2 Hole Flange to SMA Male Cable RG405 Type .086 Coax in 12 Inch

RF cable assembly part number FMCA1595-12 slide-on BMA jack 2 hole flange to SMA male cable RG405 type .086 coax in 12 inch from Fairview Microwave is one of a huge selection of coaxial cables for rad...

RF cable assembly part number FMCA1595-12 slide-on BMA jack 2 hole flange to SMA male cable RG405 type .086 coax in 12 inch from Fairview Microwave is one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. Slide-on BMA jack 2 hole flange to SMA male cable RG405 type .086 coax in 12 inch, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide.This Fairview Microwave RF coaxial assembly is manufactured with BMA cable connection on one end and a SMA cable connection on the other end. Our BMA cable assembly has a jack gender on end one and male on end two. BMA cable FMCA1595-12 is built in a jack to male coaxial assembly design and will ship quickly after the purchase.Fairview BMA jack to SMA male cable assembly FMCA1595-12 is built with RG405 Type .086 coax and it is a semi-rigid design. Our BMA cable assembly is manufactured with 50 Ohm BMA to 50 Ohm SMA cable connectors and has a 50 Ohm impedance for the cable. RF specs for this BMA jack 2 hole flange to SMA male cable can be found on its specifications datasheet PDF above. Keep in mind that FMCA1595-12 can also be used as a SMA male to BMA jack cable because the assembly operates in both directions.BMA jack 2 hole flange to SMA male coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality BMA to SMA cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of BMA cable assemblies can also be built and shipped quickly as well. Custom cable assemblies for radio, antenna, RF component inter connection and more for production, test and measurement labs, military / defense, aerospace, telecom and other RF applications for cables can be easily built.

Expand

SKU FMCA1595-12 FMCA1595 -0

QTY available 8

Price $115.99

Quantity Price

1-24$115.99

25-49$110.19

50-99$104.39

100-249$99.75

250-499$95.11

500+$95.11Please call for quote

All Prices are in US Dollars and do not include duties

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

BMA

Connector Gender 1

Jack

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

2 Hole Flange

Connector Impedance 1

50

Connector Series 2

SMA

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

FM-SR086CU-STR

RF Cable Type

FM-SR086CU

RF Cable Impedance

50

Length

12 inches

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
