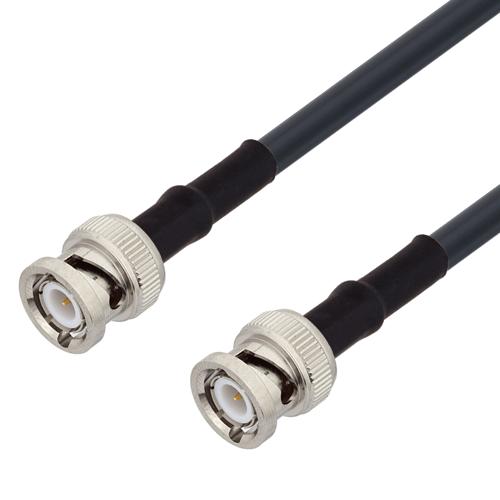

Low Loss BNC Male to BNC Male Cable LMR-195-UF Coax in 12 Inch

Low Loss BNC Male to BNC Male Cable LMR-195-UF Coax in 12 Inch

RF cable assembly part number FMCA100228/0000-12 from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave ...

RF cable assembly part number FMCA100228/0000-12 from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense/military, aerial antenna towers, etc. The 50 Ohm FMCA100228/0000-12 cable assembly, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide. This Fairview Microwave RF coaxial assembly is manufactured with a BNC cable connection on one end and a BNC cable connection on the other end. Our BNC cable assembly has a male (plug) gender on end one and male (plug) on end two. Cable assembly FMCA100228/0000-12 is built in a male to male coaxial assembly design and will ship quickly after the purchase. This black RF cable assembly has a TPE jacket with a 0.195-inch diameter. This low loss RF cable assembly operates at a maximum frequency of 4 GHz. Our cable assemblies are constructed using durable and flexible materials with a 2-inch bend radius to withstand repetitive movements, ensuring reliable performance over extended periods. The minimum bend radius for flexible cable assemblies is 0.5 inch, allowing for a single bend without damaging the cable. This in-series cable assembly can withstand temperatures ranging from -40 to 85 deg C. Our low loss RF cable comes with a minimum RF shielding of 90 dB. Fairview Microwave’s BNC male to BNC male cable assembly FMCA100228/0000-12 is built with LMR-195-UF coax and it is a flexible coax design. Our low loss cable assembly is manufactured with BNC to BNC cable connectors and has a 50 Ohm impedance. Both connectors have a crimp/solder attachment method and a brass body with nickel plating. This RF cable assembly with a 0.5-inch diameter has copper as the cable’s inner conducting material and Foam PE dielectric type. Additional dimensions, specifications and CAD drawings for this FMCA100228/0000-12 low loss RF cable are available on our downloadable PDF datasheet. BNC male to BNC male coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality BNC to BNC cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview Microwave is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of BNC cable assemblies can also be built and shipped quickly as well. For further information on similar products, our expert technical support and trained sales team can get you the ideal BNC to BNC low loss RF cable assembly as per your requirements.* LMR™ is a trademark of Times Microwave Systems.

Expand

SKU FMCA100228/0000-12 FMCA100228/0000 -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

BNC

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

None

Connector Impedance 1

50

Connector Series 2

BNC

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

LMR-195-UF

RF Cable Type

LMR-195-UF

RF Cable Impedance

50

Length

12 inches

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
