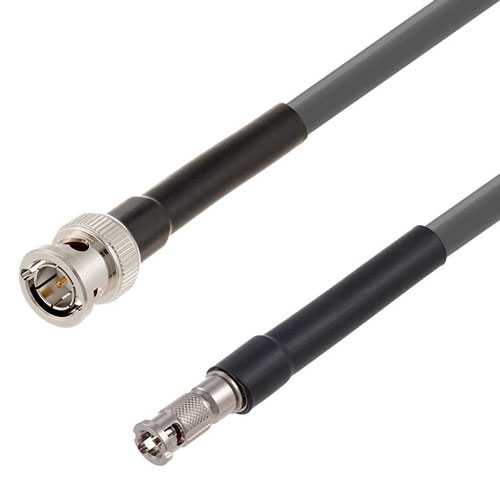

6G SDI 75 Ohm BNC Male to 75 Ohm HD-BNC Male Cable 75 Ohm 1694A-GY Coax in 12 Inch

6G SDI 75 Ohm BNC Male to 75 Ohm HD-BNC Male Cable 75 Ohm 1694A-GY Coax in 12 Inch

RF cable assembly part number FMCA2674/GY-12 6G SDI 75 Ohm BNC male to 75 Ohm HD-BNC male cable 75 Ohm 1694A-GY coax in 12 inch from Fairview Microwave is just one of a huge selection of coaxial cable...

RF cable assembly part number FMCA2674/GY-12 6G SDI 75 Ohm BNC male to 75 Ohm HD-BNC male cable 75 Ohm 1694A-GY coax in 12 inch from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. The 75 Ohm like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide.This Fairview Microwave RF coaxial assembly is manufactured with a BNC cable connection on one end and a HD-BNC cable connection on the other end. Our BNC cable assembly has a male plug on end one and male plug on end two. BNC cable FMCA2674/GY-12 is built in a male to male coaxial assembly design and will ship quickly after the purchase. This 6G SDI cable features 6 Gb/s data transfer rates for applications such as 4K video transmission, broadband and broadcast UHDTV A/V, medical equipment, HD cameras, and other applications requiring high-speed video.Fairview BNC male to HD-BNC male cable assembly FMCA2674/GY-12 is built with 1694A-GY coax and it is a flexible coax design. Our BNC cable assembly is manufactured with 75 Ohm BNC to 75 Ohm HD-BNC cable connectors and has a 75 Ohm impedance. RF specs for this BNC male to HD-BNC male cable can be found on its specifications datasheet PDF above. This product and all of our 6G SDI cable assemblies satisfy SMPTE Standard 2081-1. Keep in mind that FMCA2674/GY-12 can also be used in the other direction as a HD-BNC male to BNC male cable because the assembly operates in both directions.BNC male to HD-BNC male coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality BNC to HD-BNC cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of BNC cable assemblies can also be built and shipped quickly as well. Custom cable assemblies for radio, antenna, RF component inter connection and more for production, test and measurement labs, military / defense, aerospace, telecom and other RF applications for cables can be easily built.

Expand

SKU FMCA2674/GY-12 FMCA2674/GY -0

QTY available

Price

Quantity Price

All Prices are in US Dollars and do not include duties

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

BNC

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

None

Connector Impedance 1

75

Connector Series 2

HD-BNC

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

75

RF Cable Part Number

1694A-GY

RF Cable Type

Belden 1694A-GY

RF Cable Impedance

75

Length

12 inches

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
