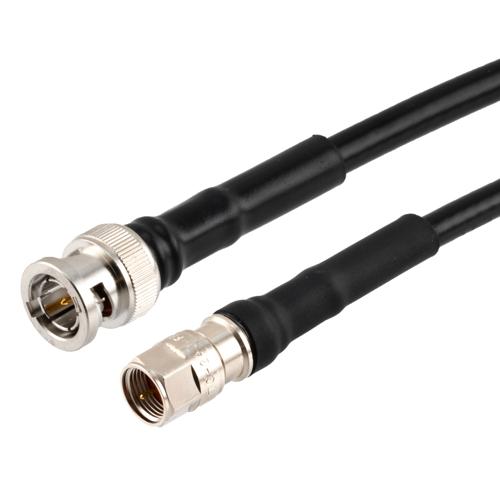

Low Loss 75 Ohm BNC Male to 75 Ohm F Male Cable 75 Ohm LMR-240-75-DB Coax with Times Microwave Components

Low Loss 75 Ohm BNC Male to 75 Ohm F Male Cable 75 Ohm LMR-240-75-DB Coax with Times Microwave Components

RF cable assembly part number FMCA100025 from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxi...

RF cable assembly part number FMCA100025 from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense/military, aerial antenna towers, etc. The 75 Ohm FMCA100025 cable assembly, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide. This Fairview Microwave RF coaxial assembly is manufactured with a BNC cable connection on one end and a F type cable connection on the other end. Our BNC cable assembly has a male (plug) gender on end one and male (plug) on end two. Our BNC to type F cable assembly has a male (plug) gender on end one and male (plug) on end two. Cable assembly FMCA100025 is built in a male to male coaxial assembly design and will ship quickly after the purchase. This RF cable assembly has a PE jacket with a 0.240-inch diameter. This low loss RF cable assembly operates at a maximum frequency of 2 GHz. The FMCA100025 BNC male to F male RF cable assembly from Fairview Microwave has a maximum VSWR of 1.4:1. This between series cable assembly can withstand temperatures ranging from -40 to 85 deg C. Fairview Microwave’s BNC male to type F male cable assembly FMCA100025 is built with LMR-240-75-DB coax and it is a coax design. Our low loss cable assembly is manufactured with BNC to F cable connectors and has a 75 Ohm impedance. One connector features the crimp attachment method and a brass body with tri-metal plating, while the other has the crimp/solder attachment method and nickel body with gold over copper plating. This RF cable assembly with a 0.5-inches diameter has copper as the cable’s inner conducting material and Foam PE dielectric type. Additional dimensions, specifications and CAD drawings for this FMCA100025 low loss RF cable are available on our downloadable PDF datasheet. BNC male to type F male coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality BNC to type F cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview Microwave is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of BNC and F cable assemblies can also be built and shipped quickly as well. For further information on similar products, our expert technical support and trained sales team can get you the ideal BNC to F low loss RF cable assembly as per your requirements.* LMR™ is a trademark of Times Microwave Systems.

Expand

SKU FMCA100025 FMCA100025 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

BNC

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

None

Connector Impedance 1

75

Connector Series 2

F

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

75

RF Cable Part Number

LMR-240-75-DB

RF Cable Type

LMR-240-75-DB

RF Cable Impedance

75

Length

Select length above.

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
