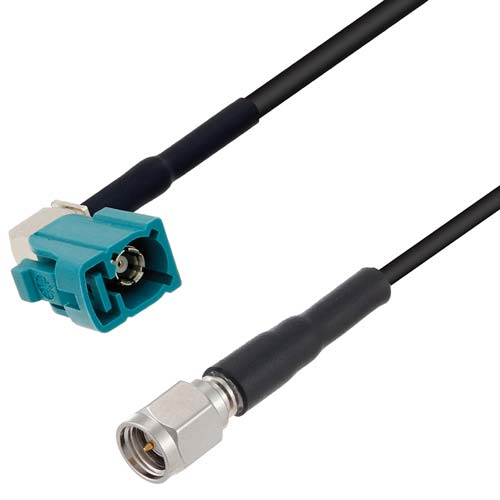

RA FAKRA Code Z / Water Blue Jack to SMA Male Cable RG-174 Coax

RA FAKRA Code Z / Water Blue Jack to SMA Male Cable RG-174 Coax

RF cable assembly part number FMCA10061 from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxia...

RF cable assembly part number FMCA10061 from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense/military, aerial antenna towers, etc. The 50 Ohm FMCA10061 cable assembly, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide. This Fairview Microwave RF coaxial assembly is manufactured with a FAKRA cable connection on one end and a SMA cable connection on the other end. Our FAKRA cable assembly has a jack gender on end one and male (plug) on end two. Our FAKRA to SMA cable assembly has a jack gender on end one and male (plug) on end two. Cable assembly FMCA10061 is built in a jack to male coaxial assembly design and will ship quickly after the purchase. This black RF cable assembly has a pvc jacket with a 0.110-inch diameter. This RF cable assembly operates at a maximum frequency of 1 GHz. The FMCA10061right angle FAKRA jack to SMA male RF cable assembly from Fairview Microwave has a maximum VSWR of 1.4:1. Fairview Microwave’s FAKRA jack to SMA male cable assembly FMCA10061 is built with RG174 coax and it is a flexible coax design. Our cable assembly is manufactured with FAKRA to SMA cable connectors and has a 50 Ohm impedance. Both connectors have a crimp/solder attachment method. This RF cable assembly with a 0.5-inches diameter has copper clad steel as the cable’s inner conducting material and PE dielectric type. Additional dimensions, specifications and CAD drawings for this FMCA10061 RF cable are available on our downloadable PDF datasheet. FAKRA right angle jack to SMA male coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality FAKRA to SMA cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview Microwave is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of FAKRA and SMA cable assemblies can also be built and shipped quickly as well. For further information on similar products, our expert technical support and trained sales team can get you the ideal FAKRA to SMA RF cable assembly as per your requirements.

Expand

SKU FMCA10061 FMCA10061 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

FAKRA

Connector Gender 1

Jack

Connector Polarity 1

Standard

Connector Angle 1

Right Angle

Connector Mount Method 1

None

Connector Impedance 1

50

Connector Series 2

SMA

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

RG174

RF Cable Type

RG-174

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
