RA MCX Male to RA MMCX Male Cable RG-316 Coax

RA MCX Male to RA MMCX Male Cable RG-316 CoaxFairview MicrowaveSCB18049

RA MCX Male to RA MMCX Male Cable RG-316 Coax

RF cable assembly part number SCB18049 RA MCX male to RA MMCX male cable RG-316 coax from Fairview Microwave is one of a huge selection of coaxial cables for radio, antenna and interconnect with RF co...

RF cable assembly part number SCB18049 RA MCX male to RA MMCX male cable RG-316 coax from Fairview Microwave is one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. RA MCX male to RA MMCX male cable RG-316 coax, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide.This Fairview Microwave RF coaxial assembly is manufactured with MCX cable connection on one end and a MMCX cable connection on the other end. Our MCX cable assembly has a male gender on end one and male on end two. MCX cable SCB18049 is built in a male to male coaxial assembly design and will ship quickly after the purchase.Fairview MCX male to MMCX male cable assembly SCB18049 is built with RG-316 coax and it is a flexible design. Our MCX cable assembly is manufactured with right angle 50 Ohm MCX to right angle 50 Ohm MMCX cable connectors and has a 50 Ohm impedance for the cable. RF specs for this MCX right angle male to MMCX right angle male cable can be found on its specifications datasheet PDF above. Keep in mind that SCB18049 can also be used as a MMCX male to MCX male cable because the assembly operates in both directions.MCX right angle male to MMCX right angle male coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality MCX to MMCX cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of MCX cable assemblies can also be built and shipped quickly as well. Custom cable assemblies for radio, antenna, RF component inter connection and more for production, test and measurement labs, military / defense, aerospace, telecom and other RF applications for cables can be easily built.

SKU SCB18049 SCB18049 -0

Product no longer available

This product has been discontinued and has run out of stock. We apologize for the inconvenience.

Replacement Part: FMC1719315

Length

Key specifications

Key specifications

Connector Series 1

MCX

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Angle 1

Right Angle

Connector Mount Method 1

None

Connector Impedance 1

50

Connector Series 2

MMCX

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Angle 2

Right Angle

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

RG316

RF Cable Type

RG-316

RF Cable Impedance

50

Length

Select length above.

Product compliance

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) No Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

mcx-male-ra-mmcx-male-cable-rg316-coax-scb18049-12 Fairview Microwave SCB18049-12

Call us

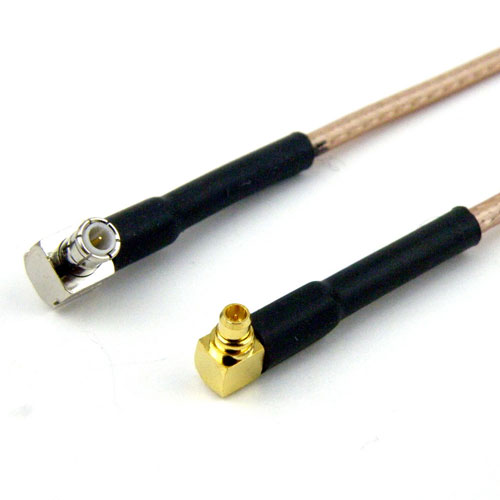

RA MCX Male to RA MMCX Male Cable RG-316 Coax in 12 Inch

Compare

SKU SCB18049-12

Starting price $48.59

Estimated shipment Call Us

mcx-male-ra-mmcx-male-cable-rg316-coax-scb18049-24 Fairview Microwave SCB18049-24

Call us

RA MCX Male to RA MMCX Male Cable RG-316 Coax in 24 Inch

Compare

SKU SCB18049-24

Starting price

Estimated shipment Call Us

mcx-male-ra-mmcx-male-cable-rg174-coax-scb112241 Fairview Microwave SCB112241

Call us

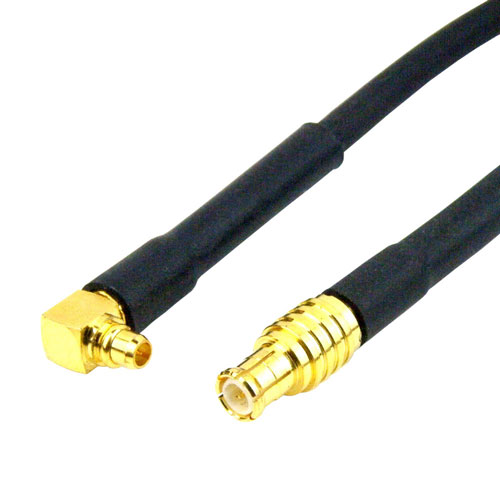

MCX Male to RA MMCX Male Cable RG-174 Coax
