MMCX Plug (Male) to MMCX Jack (Female) Cable RG-174 Coax Up To 1 GHz, 1.35 VSWR

MMCX Plug (Male) to MMCX Jack (Female) Cable RG-174 Coax Up To 1 GHz, 1.35 VSWR

RF cable assembly part number FMC0924174 MMCX plug (male) to MMCX jack (female) cable RG-174 coax up to 1 GHz, 1.35 VSWR from Fairview Microwave is one of a huge selection of coaxial cables for radio,...

RF cable assembly part number FMC0924174 MMCX plug (male) to MMCX jack (female) cable RG-174 coax up to 1 GHz, 1.35 VSWR from Fairview Microwave is one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. MMCX plug (male) to MMCX jack (female) cable RG-174 coax up to 1 GHz, 1.35 VSWR, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide.This Fairview Microwave RF coaxial assembly is manufactured with MMCX cable connection on one end and a MMCX cable connection on the other end. Our MMCX cable assembly has a plug gender on end one and jack on end two. MMCX cable FMC0924174 is built in a plug to jack coaxial assembly design and will ship quickly after the purchase.Fairview MMCX plug to MMCX jack cable assembly FMC0924174 is built with RG174 coax and it is a flexible design. Our MMCX cable assembly is manufactured with 50 Ohm MMCX to 50 Ohm MMCX cable connectors and has a 50 Ohm impedance for the cable. RF specs for this MMCX plug to MMCX jack cable can be found on its specifications datasheet PDF above. Keep in mind that FMC0924174 can also be used as a MMCX jack to MMCX plug cable because the assembly operates in both directions.MMCX plug to MMCX jack coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality MMCX to MMCX cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of MMCX cable assemblies can also be built and shipped quickly as well. Custom cable assemblies for radio, antenna, RF component inter connection and more for production, test and measurement labs, military / defense, aerospace, telecom and other RF applications for cables can be easily built.

Expand

SKU FMC0924174 FMC0924174 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

MMCX

Connector Gender 1

Plug

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

None

Connector Impedance 1

50

Connector Series 2

MMCX

Connector Gender 2

Jack

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

RG174

RF Cable Type

RG-174

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

mmcx-plug-mmcx-jack-cable-rg174-coax-fmc0924174-12 Fairview Microwave FMC0924174-12

354 available

MMCX Plug to MMCX Jack Cable RG-174 Coax in 12 Inch

Compare

SKU FMC0924174-12

Starting price $58.99

Estimated shipment Tomorrow

mmcx-female-mmcx-male-cable-rg174-coax-scb15677 Fairview Microwave SCB15677

Call us

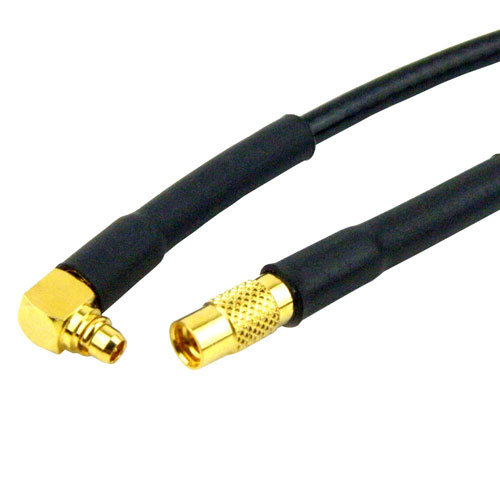

MMCX Jack to MMCX Plug Cable RG-174 Coax

Compare

SKU SCB15677

Starting price $53.99

Estimated shipment Call Us

mmcx-male-mmcx-female-cable-rg174-coax-scb18755 Fairview Microwave SCB18755

Call us

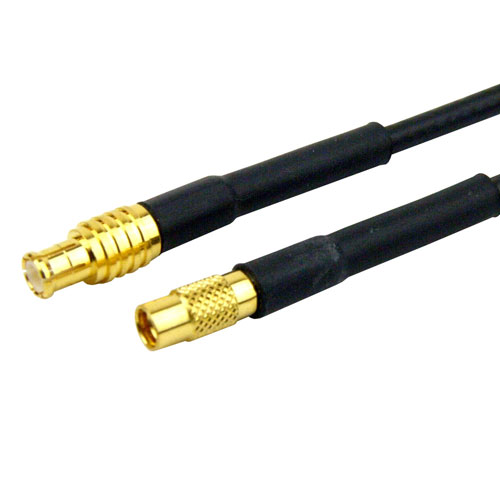

MMCX Plug (Male) to MMCX Jack (Female) Cable RG-174 Coax Up To 6 GHz
