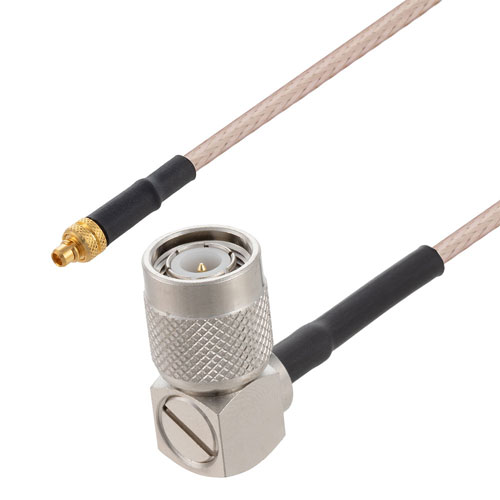

MMCX Plug to RA TNC Male Cable RG-316 Coax

MMCX Plug to RA TNC Male Cable RG-316 Coax

RF cable assembly part number FMCA3269 MMCX plug to RA TNC male cable RG-316 coax from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF...

RF cable assembly part number FMCA3269 MMCX plug to RA TNC male cable RG-316 coax from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. The 50 Ohm like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide. This Fairview Microwave RF coaxial assembly is manufactured with a MMCX cable connection on one end and a TNC cable connection on the other end. Our MMCX cable assembly has a plug on end one and male plug on end two. MMCX cable FMCA3269 is built in a plug to male coaxial assembly design and will ship quickly after the purchase. Fairview MMCX plug to TNC male cable assembly FMCA3269 is built with RG-316 coax and it is a flexible coax design. Our MMCX cable assembly is manufactured with 50 Ohm MMCX to right angle 50 Ohm TNC cable connectors and has a 50 Ohm impedance. RF specs for this MMCX plug to TNC right angle male cable can be found on its specifications datasheet PDF above. Keep in mind that FMCA3269 can also be used in the other direction as a TNC male to MMCX plug cable because the assembly operates in both directions. MMCX plug to TNC right angle male coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality MMCX to TNC cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of MMCX cable assemblies can also be built and shipped quickly as well. Custom cable assemblies for radio, antenna, RF component inter connection and more for production, test and measurement labs, military / defense, aerospace, telecom and other RF applications for cables can be easily built.

Expand

SKU FMCA3269 FMCA3269 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

MMCX

Connector Gender 1

Plug

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Impedance 1

50

Connector Series 2

TNC

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Angle 2

Right Angle

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

RG316

RF Cable Type

RG316

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99
