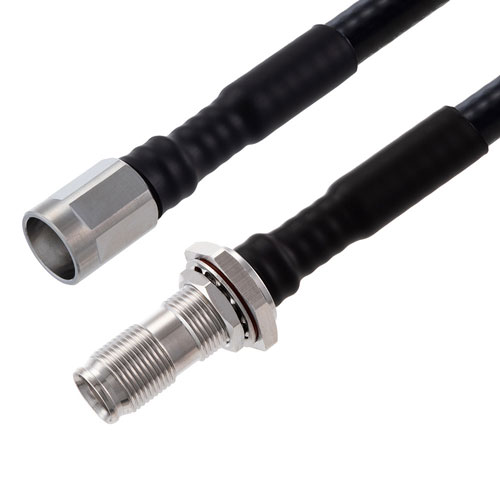

Low PIM NEX10 Male to NEX10 Female Bulkhead Cable 1/4 inch Superflexible Coax

Low PIM NEX10 Male to NEX10 Female Bulkhead Cable 1/4 inch Superflexible Coax

RF cable assembly part number FMCA2263 low PIM NEX10 male to NEX10 female bulkhead cable 1/4 inch superflexible coax from Fairview Microwave is one of a huge selection of coaxial cables for radio, ant...

RF cable assembly part number FMCA2263 low PIM NEX10 male to NEX10 female bulkhead cable 1/4 inch superflexible coax from Fairview Microwave is one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. Low PIM NEX10 male to NEX10 female bulkhead cable 1/4 inch superflexible coax, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide.This Fairview Microwave RF coaxial assembly is manufactured with NEX10 cable connection on one end and a NEX10 cable connection on the other end. Our NEX10 cable assembly has a male gender on end one and female on end two. NEX10 cable FMCA2263 is built in a male to female coaxial assembly design and will ship quickly after the purchase. Fairview NEX10 male to NEX10 female cable assembly FMCA2263 is built with 1/4 inch Superflexible coax and it is a corrugated design. Our NEX10 cable assembly is manufactured with 50 Ohm NEX10 to 50 Ohm NEX10 cable connectors and has a 50 Ohm impedance for the cable. RF specs for this NEX10 male to NEX10 female bulkhead cable can be found on its specifications datasheet PDF above. Keep in mind that FMCA2263 can also be used as a NEX10 female to NEX10 male cable because the assembly operates in both directions.NEX10 male to NEX10 female bulkhead coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality NEX10 to NEX10 cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of NEX10 cable assemblies can also be built and shipped quickly as well. Custom cable assemblies for radio, antenna, RF component inter connection and more for production, test and measurement labs, military / defense, aerospace, telecom and other RF applications for cables can be easily built.

Expand

SKU FMCA2263 FMCA2263 -0

Custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

NEX10

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

None

Connector Impedance 1

50

Connector Series 2

NEX10

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

Bulkhead

Connector Impedance 2

50

RF Cable Part Number

FM-1/4SFHC

RF Cable Type

1/4" Superflexible

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
