NEX10 Male to NEX10 Male Right Angle Low PIM Cable Using TFT-402 Coax Using Times Microwave Components

NEX10 Male to NEX10 Male Right Angle Low PIM Cable Using TFT-402 Coax Using Times Microwave Components

RF cable assembly part number FMCA2322 from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial...

RF cable assembly part number FMCA2322 from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. The 50 Ohm FMCA2322 cable assembly like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide. This Fairview Microwave RF coaxial assembly is manufactured with a NEX10 cable connection on one end and a NEX10 cable connection on the other end. Our NEX10 cable assembly has a male plug on end one and male plug on end two. NEX10 cable FMCA2322 is built in a male to male coaxial assembly design and will ship quickly after the purchase. This BL RF cable assembly has an FEP jacket with 0.160 inches diameter. This low pim RF cable assembly operates at a maximum frequency of 4 GHz.NEX10 low pim cable assemblies from Fairview Microwave are ideal for applications including indoor and outdoor use and plenum rated applications. The minimum bend radius for flexible cable assemblies is 0.75 inch, allowing for a single bend without damaging the cable. Our flexible low pim cable assemblies have an FEP jacket with 0.160 inches of jacket diameter. Fairview Microwave NEX10 male to NEX10 male cable assembly FMCA2322 is built with TFT-402 coax and it is a flexible coax design. Our low pim cable assembly is manufactured with NEX10 to NEX10 cable connectors and has a 50 Ohm impedance. Both connectors have a solder/solder attachment method and a brass body with silver plating. This RF cable assembly with 0.472 inches diameter has copper as cable inner conducting material and PTFE dielectric type. Additional dimensions, specifications and CAD drawings for this FMCA2322 low pim RF cable are available on our downloadable PDF datasheet. NEX10 male to NEX10 right angle male coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality NEX10 to NEX10 cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of NEX10 cable assemblies can also be built and shipped quickly as well. For further information on similar products, our expert technical support and trained sales team can get you the ideal NEX10 low pim RF cable assembly as per your requirements.

Expand

SKU FMCA2322 FMCA2322 -0

Product available until inventory is depleted

This product has been discontinued and has availability until the inventory is depleted. Please contact our customer service team for assistance in identifying the appropriate replacement part for your application.

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

NEX10

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

None

Connector Impedance 1

50

Connector Series 2

NEX10

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Angle 2

Right Angle

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

TFT-402

RF Cable Type

TFT-402

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

low-pim-nex10-male-ra-nex10-male-cable-tft-402-coax-fmca2322-12 Fairview Microwave FMCA2322-12

1 available

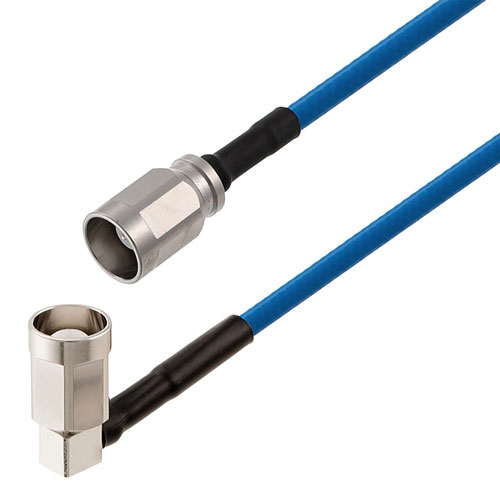

NEX10 Male to NEX10 Male Right Angle Low PIM Cable 12 Inch Length Using TFT-402 Coax Using Times Microwave Components
