SMA Male Right Angle to BNC Female Bulkhead Cable Using RG223 Coax

SMA Male Right Angle to BNC Female Bulkhead Cable Using RG223 Coax

RF cable assembly part number FMCA2714 SMA male right angle to BNC female bulkhead cable using RG223 coax from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna a...

RF cable assembly part number FMCA2714 SMA male right angle to BNC female bulkhead cable using RG223 coax from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. The 50 Ohm like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide.This Fairview Microwave RF coaxial assembly is manufactured with a SMA cable connection on one end and a BNC cable connection on the other end. Our SMA cable assembly has a male plug on end one and female female on end two. SMA cable FMCA2714 is built in a male to female coaxial assembly design and will ship quickly after the purchase.Fairview SMA male to BNC female cable assembly FMCA2714 is built with RG223 coax and it is a flexible coax design. Our SMA cable assembly is manufactured with right angle 50 Ohm SMA to 50 Ohm BNC cable connectors and has a 50 Ohm impedance. RF specs for this SMA right angle male to BNC female bulkhead cable can be found on its specifications datasheet PDF above. Keep in mind that FMCA2714 can also be used in the other direction as a BNC female to SMA male cable because the assembly operates in both directions.SMA right angle male to BNC female bulkhead coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality SMA to BNC cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of SMA cable assemblies can also be built and shipped quickly as well. Custom cable assemblies for radio, antenna, RF component inter connection and more for production, test and measurement labs, military / defense, aerospace, telecom and other RF applications for cables can be easily built.

Expand

SKU FMCA2714 FMCA2714 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

SMA

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Angle 1

Right Angle

Connector Mount Method 1

None

Connector Impedance 1

50

Connector Series 2

BNC

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

Bulkhead

Connector Impedance 2

50

RF Cable Part Number

RG223/U

RF Cable Type

RG-223

RF Cable Impedance

50

Length

1 inches

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

ra-sma-male-to-bnc-female-bulkhead-cable-rg223-coax-and-rohs-fmca2714-12 Fairview Microwave FMCA2714-12

80 available

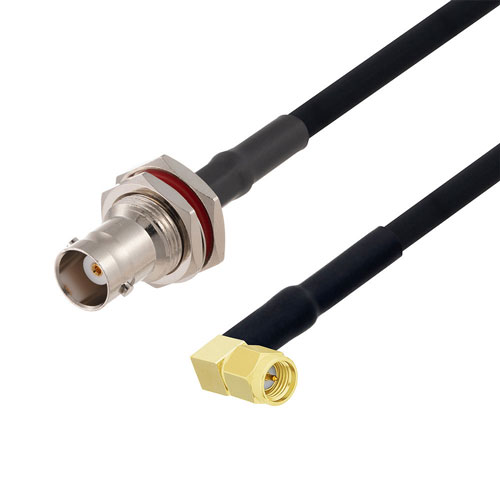

SMA Male Right Angle to BNC Female Bulkhead Cable in 12 Inch Length Using RG223 Coax

Compare

SKU FMCA2714-12

Starting price $41.19

Estimated shipment Today

sma-female-bulkhead-to-bnc-male-cable-rg223-coax-and-rohs-fmca2678 Fairview Microwave FMCA2678

80 available

SMA Female Bulkhead to BNC Male Cable Using RG223 Coax

Compare

SKU FMCA2678

Starting price $40.59

Estimated shipment Today

sma-female-to-bnc-male-cable-rg223-coax-and-rohs-fmca2677 Fairview Microwave FMCA2677

23 available

SMA Female to BNC Male Cable Using RG223 Coax

Compare

SKU FMCA2677

Starting price $28.59

Estimated shipment Today

sma-female-bulkhead-to-ra-bnc-male-cable-rg223-coax-and-rohs-fmca2692 Fairview Microwave FMCA2692

30 available

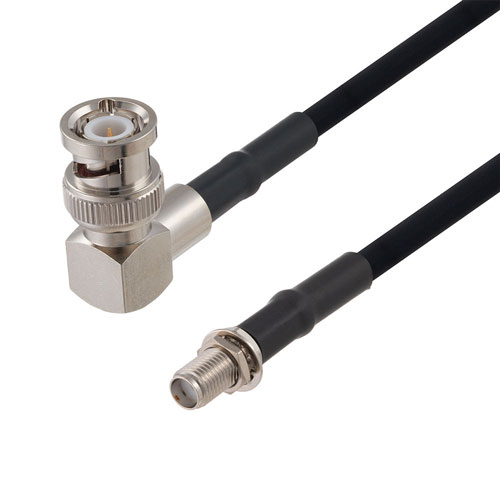

SMA Female Bulkhead to BNC Male Right Angle Cable Using RG223 Coax
