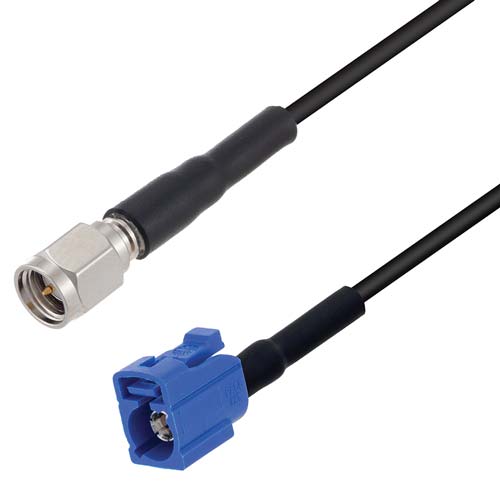

Low Loss SMA Male to FAKRA Code C / Blue Jack Cable LMR-100 Coax

Low Loss SMA Male to FAKRA Code C / Blue Jack Cable LMR-100 Coax

RF cable assembly part number FMCA10040 from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxia...

RF cable assembly part number FMCA10040 from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense/military, aerial antenna towers, etc. The 50 Ohm FMCA10040 cable assembly, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide. This Fairview Microwave RF coaxial assembly is manufactured with a SMA cable connection on one end and a FAKRA cable connection on the other end. Our SMA cable assembly has a male (plug) gender on end one and jack on end two. Our SMA to FAKRA cable assembly has a male (plug) gender on end one and jack on end two. Cable assembly FMCA10040 is built in a male to jack coaxial assembly design and will ship quickly after the purchase. This black RF cable assembly has a pvc jacket with a 0.110-inch diameter. This low loss RF cable assembly operates at a maximum frequency of 4 GHz. Our cable assemblies are constructed using durable and flexible materials with a 1-inch bend radius to withstand repetitive movements, ensuring reliable performance over extended periods. The FMCA10040 SMA male to FAKRA jack RF cable assembly from Fairview Microwave has a maximum VSWR of 1.4:1. This between series cable assembly can withstand temperatures ranging from -40 to 85 deg C. Our low loss RF cable comes with a minimum RF shielding of 90 dB. Fairview Microwave’s SMA male to FAKRA jack cable assembly FMCA10040 is built with LMR-100 coax and it is a flexible coax design. Our low loss cable assembly is manufactured with SMA to FAKRA cable connectors and has a 50 Ohm impedance. Both connectors have a crimp/solder attachment method. This RF cable assembly with a 0.5-inches diameter has copper clad steel as the cable’s inner conducting material and PE dielectric type. Additional dimensions, specifications and CAD drawings for this FMCA10040 low loss RF cable are available on our downloadable PDF datasheet. SMA male to FAKRA jack coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality SMA to FAKRA cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview Microwave is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of SMA and FAKRA cable assemblies can also be built and shipped quickly as well. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMA to FAKRA low loss RF cable assembly as per your requirements.* LMR™ is a trademark of Times Microwave Systems.

Expand

SKU FMCA10040 FMCA10040 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

SMA

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

None

Connector Impedance 1

50

Connector Series 2

FAKRA

Connector Gender 2

Jack

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

LMR-100A-PVC

RF Cable Type

LMR-100A

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99
