SMA Male (Plug) to SMB Plug (Male) Cable M17/113-RG316 Coax Up To 3 GHz, 1.35 VSWR

SMA Male (Plug) to SMB Plug (Male) Cable M17/113-RG316 Coax Up To 3 GHz, 1.35 VSWRFairview MicrowaveFMC0216316

SMA Male (Plug) to SMB Plug (Male) Cable M17/113-RG316 Coax Up To 3 GHz, 1.35 VSWR

RF cable assembly part number FMC0216316 SMA male (plug) to SMB plug (male) cable M17/113-RG316 coax up to 3 GHz, 1.35 VSWR from Fairview Microwave is one of a huge selection of coaxial cables for rad...

RF cable assembly part number FMC0216316 SMA male (plug) to SMB plug (male) cable M17/113-RG316 coax up to 3 GHz, 1.35 VSWR from Fairview Microwave is one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. SMA male (plug) to SMB plug (male) cable M17/113-RG316 coax up to 3 GHz, 1.35 VSWR, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide.This Fairview Microwave RF coaxial assembly is manufactured with SMA cable connection on one end and a SMB cable connection on the other end. Our SMA cable assembly has a male gender on end one and plug on end two. SMA cable FMC0216316 is built in a male to plug coaxial assembly design and will ship quickly after the purchase.Fairview SMA male to SMB plug cable assembly FMC0216316 is built with M17/113-RG316 coax and it is a flexible design. Our SMA cable assembly is manufactured with 50 Ohm SMA to 50 Ohm SMB cable connectors and has a 50 Ohm impedance for the cable. RF specs for this SMA male to SMB plug cable can be found on its specifications datasheet PDF above. Keep in mind that FMC0216316 can also be used as a SMB plug to SMA male cable because the assembly operates in both directions.SMA male to SMB plug coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality SMA to SMB cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of SMA cable assemblies can also be built and shipped quickly as well. Custom cable assemblies for radio, antenna, RF component inter connection and more for production, test and measurement labs, military / defense, aerospace, telecom and other RF applications for cables can be easily built.

SKU FMC0216316 FMC0216316 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Key specifications

Connector Series 1

SMA

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

None

Connector Impedance 1

50

Connector Series 2

SMB

Connector Gender 2

Plug

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

M17/113-RG316

RF Cable Type

M17/113-RG316

RF Cable Impedance

50

Length

Select length above.

Product compliance

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

sma-male-smb-plug-cable-m17-113-rg316-coax-fmc0216316-12 Fairview Microwave FMC0216316-12

2,300 available

SMA Male (Plug) to SMB Plug (Male) Cable M17/113-RG316 Coax Up To 3 GHz, 1.35 VSWR in 12 Inch

Compare

SKU FMC0216316-12

Starting price $55.99

Estimated shipment Tomorrow

sma-male-ra-smb-plug-cable-m17-113-rg316-coax-fmc0226316 Fairview Microwave FMC0226316

2,344 available

SMA Male (Plug) to RA SMB Plug (Male) Cable M17/113-RG316 Coax Up To 3 GHz, 1.35 VSWR

Compare

SKU FMC0226316

Starting price $42.99

Estimated shipment Tomorrow

ra-sma-male-smb-plug-cable-m17-113-rg316-coax-fmc0416316 Fairview Microwave FMC0416316

1,538 available

RA SMA Male (Plug) to SMB Plug (Male) Cable M17/113-RG316 Coax Up To 3 GHz

Compare

SKU FMC0416316

Starting price $42.99

Estimated shipment Tomorrow

sma-female-to-smb-plug-cable-m17-113-rg316-coax-with-lf-solder-fmc1316316lf Fairview Microwave FMC1316316LF

undefined

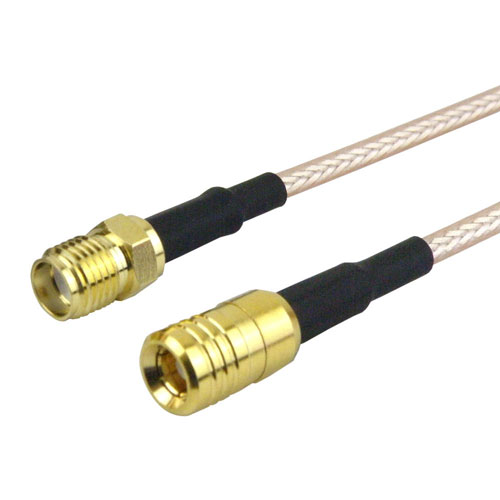

SMA Female to SMB Plug Cable M17/113-RG316 Coax with LF Solder
