Low Loss SMA Female Bulkhead to SSMC Plug Cable LMR-100 Coax with LF Solder

Low Loss SMA Female Bulkhead to SSMC Plug Cable LMR-100 Coax with LF Solder

RF cable assembly part number FMC00302/0001 low loss SMA female bulkhead to SSMC plug cable LMR-100 coax with LF solder from Fairview Microwave is just one of a huge selection of coaxial cables for r...

RF cable assembly part number FMC00302/0001 low loss SMA female bulkhead to SSMC plug cable LMR-100 coax with LF solder from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. The 50 Ohm FMC00302/0001 cable assembly like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide. This Fairview Microwave RF coaxial assembly is manufactured with a SMA cable connection on one end and a SSMC cable connection on the other end. Our SMA cable assembly has a female jack on end one and plug on end two. SMA cable FMC00302/0001 is built in a female to plug coaxial assembly design and will ship quickly after the purchase. This BK RF cable assembly has a PVC jacket with 0.110 inches diameter. This low loss RF cable assembly operates at a maximum frequency of 3 GHz. Our flexible cable assemblies are constructed using durable and flexible materials with 1 inch bend radius to withstand repetitive movements, ensuring reliable performance over extended periods. The minimum bend radius for flexible cable assemblies is 0.25 inch, allowing for a single bend without damaging the cable. Our flexible low loss cable assemblies have a PVC jacket with 0.110 inches of jacket diameter. Fairview Microwave SMA female to SSMC plug cable assembly FMC00302/0001 is built with LMR-100 coax and it is a flexible coax design. Our low loss cable assembly is manufactured with SMA to SSMC cable connectors and has a 50 Ohm impedance. Both connectors have a crimp/solder attachment method and a body with plating. This RF cable assembly with 0.5 inches diameter has copper clad steel as cable inner conducting material and PE dielectric type. Additional dimensions, specifications and CAD drawings for this FMC00302/0001 low loss RF cable are available on our downloadable PDF datasheet. SMA female bulkhead to SSMC plug coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality SMA to SSMC cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of SMA cable assemblies can also be built and shipped quickly as well. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMA low loss RF cable assembly as per your requirements.* LMR™ is a trademark of Times Microwave Systems.

Expand

SKU FMC00302/0001 FMC00302/0001 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

SMA

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

Bulkhead

Connector Impedance 1

50

Connector Series 2

SSMC

Connector Gender 2

Plug

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

LMR-100A-PVC

RF Cable Type

LMR-100A

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

723 available

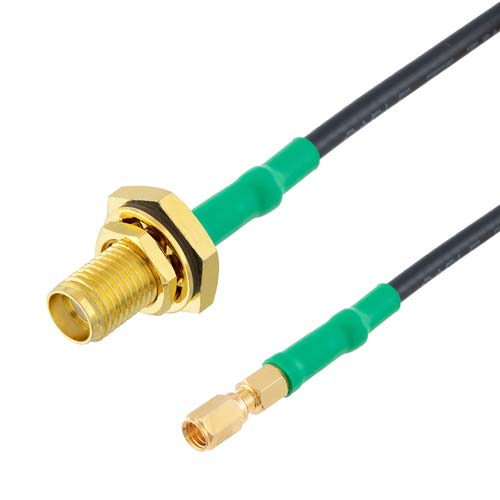

Low Loss SMA Female Bulkhead to SSMC Plug Cable LMR-100 Coax in 24 Inch with LF Solder

Compare

SKU FMC00302/0001-24

Starting price $78.99

Estimated shipment Today

low-loss-sma-female-ssmc-male-cable-lmr100-coax-fmc00302 Fairview Microwave FMC00302

723 available

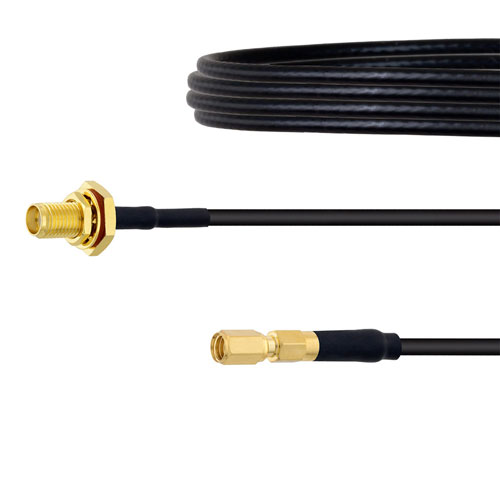

Low Loss SMA Female Bulkhead to SSMC Male Cable LMR-100 Coax

Compare

SKU FMC00302

Starting price $47.99

Estimated shipment Today

656 available

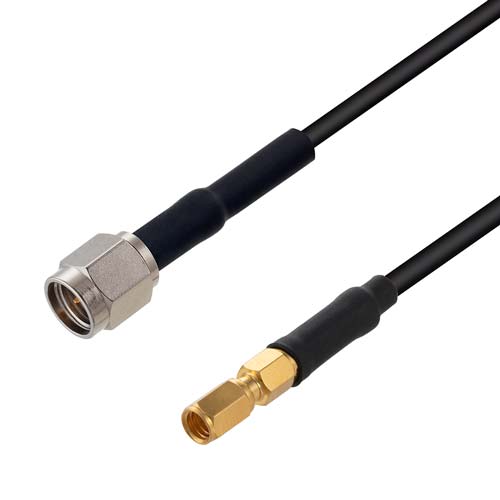

Low Loss SMA Male to SSMC Plug Cable LMR-100 Coax
