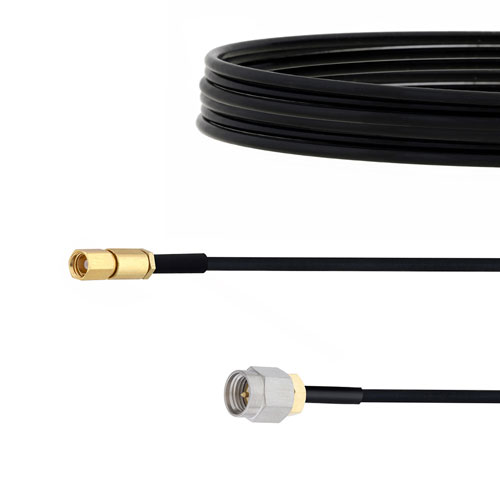

SMA Male to SSMC Plug Cable FM-SR086TBJ Coax

SMA Male to SSMC Plug Cable FM-SR086TBJ Coax

RF cable assembly part number FMCA1508 SMA male to SSMC plug cable FM-SR086TBJ coax from Fairview Microwave is one of a huge selection of coaxial cables for radio, antenna and interconnect with RF com...

RF cable assembly part number FMCA1508 SMA male to SSMC plug cable FM-SR086TBJ coax from Fairview Microwave is one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. SMA male to SSMC plug cable FM-SR086TBJ coax, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide.This Fairview Microwave RF coaxial assembly is manufactured with SMA cable connection on one end and a SSMC cable connection on the other end. Our SMA cable assembly has a male gender on end one and plug on end two. SMA cable FMCA1508 is built in a male to plug coaxial assembly design and will ship quickly after the purchase.Fairview SMA male to SSMC plug cable assembly FMCA1508 is built with FM-SR086TBJ coax and it is a formable design. Our SMA cable assembly is manufactured with 50 Ohm SMA to 50 Ohm SSMC cable connectors and has a 50 Ohm impedance for the cable. RF specs for this SMA male to SSMC plug cable can be found on its specifications datasheet PDF above. Keep in mind that FMCA1508 can also be used as a SSMC plug to SMA male cable because the assembly operates in both directions.SMA male to SSMC plug coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality SMA to SSMC cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of SMA cable assemblies can also be built and shipped quickly as well. Custom cable assemblies for radio, antenna, RF component inter connection and more for production, test and measurement labs, military / defense, aerospace, telecom and other RF applications for cables can be easily built.

Expand

SKU FMCA1508 FMCA1508 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

SMA

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

None

Connector Impedance 1

50

Connector Series 2

SSMC

Connector Gender 2

Plug

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

FM-SR086TBJ

RF Cable Type

FM-SR086TBJ

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Not Available

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
