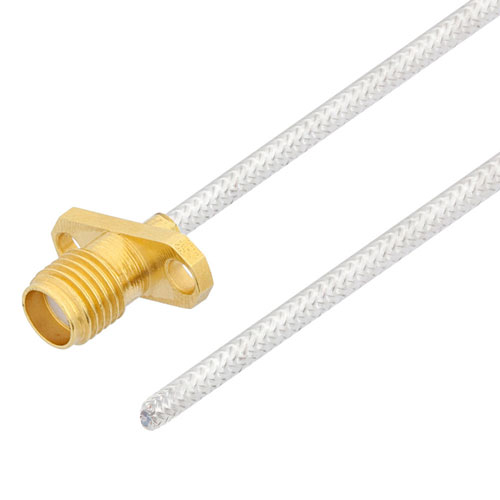

Test Probe SMA Female 2 Hole Flange to Straight Cut Lead Cable FM-SR086TB Coax

Test Probe SMA Female 2 Hole Flange to Straight Cut Lead Cable FM-SR086TB Coax

RF cable assembly part number FMCA2395 test probe SMA female 2 hole flange to straight cut lead cable FM-SR086TB coax from Fairview Microwave is one of a huge selection of coaxial cables for radio, an...

RF cable assembly part number FMCA2395 test probe SMA female 2 hole flange to straight cut lead cable FM-SR086TB coax from Fairview Microwave is one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. Test probe SMA female 2 hole flange to straight cut lead cable FM-SR086TB coax, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide.This Fairview Microwave RF coaxial assembly is manufactured with SMA cable connection on one end and a straight cut lead cable connection on the other end. Our SMA cable assembly has a female gender on end one and sexless on end two. SMA cable FMCA2395 is built in a female to sexless coaxial assembly design and will ship quickly after the purchase.Fairview SMA female to straight cut lead sexless cable assembly FMCA2395 is built with FM-SR086TB coax and it is a formable design. Our SMA cable assembly is manufactured with 50 Ohm SMA to straight cut lead cable connectors and has a 50 Ohm impedance for the cable. RF specs for this SMA female 2 hole flange to straight cut lead sexless cable can be found on its specifications datasheet PDF above. Keep in mind that FMCA2395 can also be used as a straight cut lead sexless to SMA female cable because the assembly operates in both directions.SMA female 2 hole flange to straight cut lead sexless coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality SMA to straight cut lead cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of SMA cable assemblies can also be built and shipped quickly as well. Custom cable assemblies for radio, antenna, RF component inter connection and more for production, test and measurement labs, military / defense, aerospace, telecom and other RF applications for cables can be easily built.

Expand

SKU FMCA2395 FMCA2395 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

SMA

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Mount Method 1

2 Hole Flange

Connector Impedance 1

50

Connector Series 2

Straight Cut Lead

Connector Gender 2

Sexless

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

RF Cable Part Number

FM-SR086TB

RF Cable Type

FM-SR086TB

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (06/2024) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
