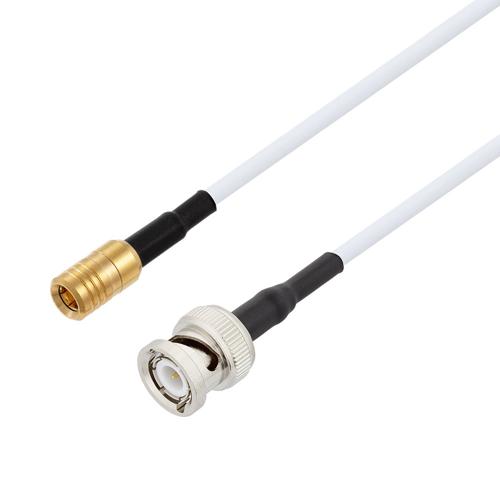

SMB Plug to BNC Male Cable RG-188 Coax

SMB Plug to BNC Male Cable RG-188 Coax

RF cable assembly part number FMCA100084 from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxi...

RF cable assembly part number FMCA100084 from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense/military, aerial antenna towers, etc. The 50 Ohm FMCA100084 cable assembly, like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide. This Fairview Microwave RF coaxial assembly is manufactured with a SMB cable connection on one end and a BNC cable connection on the other end. Our SMB cable assembly has a plug gender on end one and male (plug) on end two. Our SMB to BNC cable assembly has a plug gender on end one and male (plug) on end two. Cable assembly FMCA100084 is built in a plug to male coaxial assembly design and will ship quickly after the purchase. This white RF cable assembly has a ptfe jacket with a 0.110-inch diameter. This RF cable assembly operates at a maximum frequency of 3 GHz. The FMCA100084 SMB plug to BNC male RF cable assembly from Fairview Microwave has a maximum VSWR of 1.4:1. This between series cable assembly can withstand temperatures ranging from -55 to 165 deg C. Fairview Microwave’s SMB plug to BNC male cable assembly FMCA100084 is built with RG188 coax and it is a flexible coax design. Our cable assembly is manufactured with SMB to BNC cable connectors and has a 50 Ohm impedance. Both connectors have a crimp/solder attachment method. This RF cable assembly with a 0.5-inches diameter has copper clad steel as the cable’s inner conducting material and PTFE dielectric type. Additional dimensions, specifications and CAD drawings for this FMCA100084 RF cable are available on our downloadable PDF datasheet. SMB plug to BNC male coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality SMB to BNC cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview Microwave is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of SMB and BNC cable assemblies can also be built and shipped quickly as well. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMB to BNC RF cable assembly as per your requirements.

Expand

SKU FMCA100084 FMCA100084 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

SMB

Connector Gender 1

Plug

Connector Polarity 1

Standard

Connector Angle 1

Straight

Connector Impedance 1

50

Connector Series 2

BNC

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Impedance 2

50

RF Cable Part Number

RG188A/U

RF Cable Type

RG-188

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Substance(s) Present Above Threshold with Exemption

REACH status

SVHC (01/2025) Substance(s) Present Above Threshold

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
