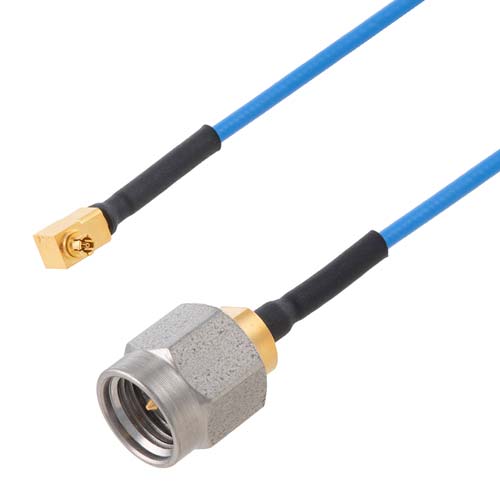

RA SMPS Female to 2.92mm Male Cable FM-P047HF Coax

RA SMPS Female to 2.92mm Male Cable FM-P047HF Coax

RF cable assembly part number FMCA9961 RA SMPS female to 2.92mm male cable FM-P047HF coax from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect...

RF cable assembly part number FMCA9961 RA SMPS female to 2.92mm male cable FM-P047HF coax from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. The 50 Ohm like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide. This Fairview Microwave RF coaxial assembly is manufactured with a SMPS cable connection on one end and a 2.92mm cable connection on the other end. Our SMPS cable assembly has a female jack on end one and male plug on end two. SMPS cable FMCA9961 is built in a female to male coaxial assembly design and will ship quickly after the purchase. This RF cable assembly operates at a maximum frequency of 40 GHz.SMPS cable assemblies from Fairview Microwave are ideal for applications including scientific research, high-reliability, high-density for aerospace & defense application and ground base station &communication systems, avionics, radar systems. Our flexible cable assemblies are constructed using durable and flexible materials with 0.1 inch bend radius to withstand repetitive movements, ensuring reliable performance over extended periods. Fairview Microwave SMPS female to 2.92mm male cable assembly FMCA9961 is built with FM-P047HF coax and it is a flexible coax design. Our cable assembly is manufactured with SMPS to 2.92mm cable connectors and has a 50 Ohm impedance. Both connectors have a solder attachment method and a beryllium copper body with gold plating. This RF cable assembly with 0.5 inches diameter has copper as cable inner conducting material and PTFE dielectric type. Additional dimensions, specifications and CAD drawings for this FMCA9961 RF cable are available on our downloadable PDF datasheet. SMPS right angle female to 2.92mm male coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality SMPS to 2.92mm cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of SMPS cable assemblies can also be built and shipped quickly as well. For further information on similar products, our expert technical support and trained sales team can get you the ideal SMPS RF cable assembly as per your requirements.

Expand

SKU FMCA9961 FMCA9961 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

SMPS

Connector Gender 1

Female

Connector Polarity 1

Standard

Connector Angle 1

Right Angle

Connector Mount Method 1

None

Connector Impedance 1

50

Connector Series 2

2.92mm

Connector Gender 2

Male

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

FM-P047HF

RF Cable Type

FM-P047HF

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99
