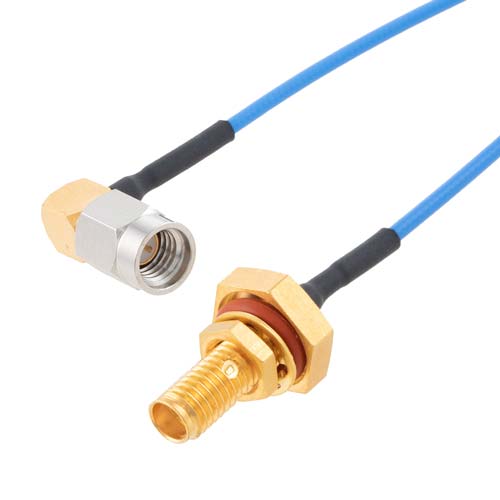

RA SSMA Male to SSMA Female Bulkhead Cable FM-P047 Coax

RA SSMA Male to SSMA Female Bulkhead Cable FM-P047 Coax

RF cable assembly part number FMCA9979 RA SSMA male to SSMA female bulkhead cable FM-P047 coax from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interco...

RF cable assembly part number FMCA9979 RA SSMA male to SSMA female bulkhead cable FM-P047 coax from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. The 50 Ohm FMCA9979 cable assembly like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide. This Fairview Microwave RF coaxial assembly is manufactured with a SSMA cable connection on one end and a SSMA cable connection on the other end. Our SSMA cable assembly has a male plug on end one and female jack on end two. SSMA cable FMCA9979 is built in a male to female coaxial assembly design and will ship quickly after the purchase. This BL RF cable assembly has an FEP jacket with 0.056 inches diameter. Our flexible cable assemblies are constructed using durable and flexible materials with 0.4 inch bend radius to withstand repetitive movements, ensuring reliable performance over extended periods. The minimum bend radius for flexible cable assemblies is 0.2 inch, allowing for a single bend without damaging the cable. Our flexible cable assemblies have an FEP jacket with 0.056 inches of jacket diameter. Fairview Microwave SSMA male to SSMA female cable assembly FMCA9979 is built with FM-P047 coax and it is a flexible coax design. Our cable assembly is manufactured with SSMA to SSMA cable connectors and has a 50 Ohm impedance. Both connectors have a solder/solder attachment method and a brass body with gold plating. This RF cable assembly with 0.5 inches diameter has copper as cable inner conducting material and FEP dielectric type. Additional dimensions, specifications and CAD drawings for this FMCA9979 RF cable are available on our downloadable PDF datasheet. SSMA right angle male to SSMA female bulkhead coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality SSMA to SSMA cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of SSMA cable assemblies can also be built and shipped quickly as well. For further information on similar products, our expert technical support and trained sales team can get you the ideal SSMA RF cable assembly as per your requirements.

Expand

SKU FMCA9979 FMCA9979 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

SSMA

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Angle 1

Right Angle

Connector Mount Method 1

None

Connector Impedance 1

50

Connector Series 2

SSMA

Connector Gender 2

Female

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

Bulkhead

Connector Impedance 2

50

RF Cable Part Number

FM-P047

RF Cable Type

FM-P047

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us

Recommended products

32 available

RA SSMA Male to SSMA Female Cable FM-P047 Coax in 12 Inch

Compare

SKU FMCA9979-12

Starting price $161.99

Estimated shipment Today

39 available

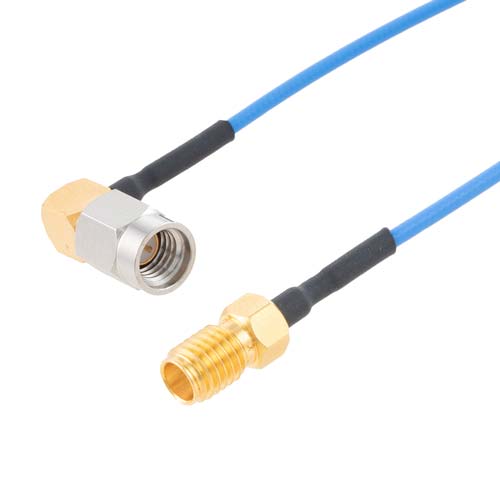

RA SSMA Male to SSMA Female Cable FM-P047 Coax

Compare

SKU FMCA9978

Starting price $133.99

Estimated shipment Today

19 available

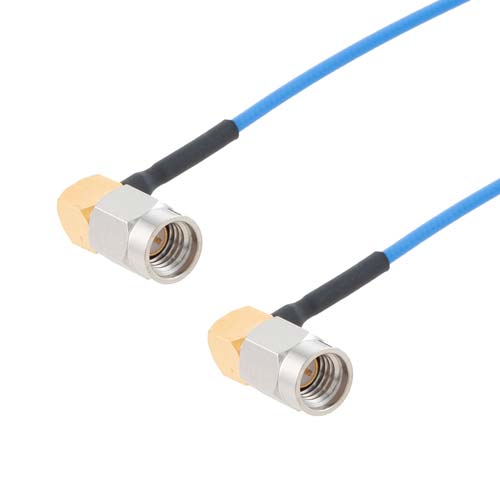

RA SSMA Male to RA SSMA Male Cable FM-P047 Coax

Compare

SKU FMCA9977

Starting price $165.99

Estimated shipment Today

3 available

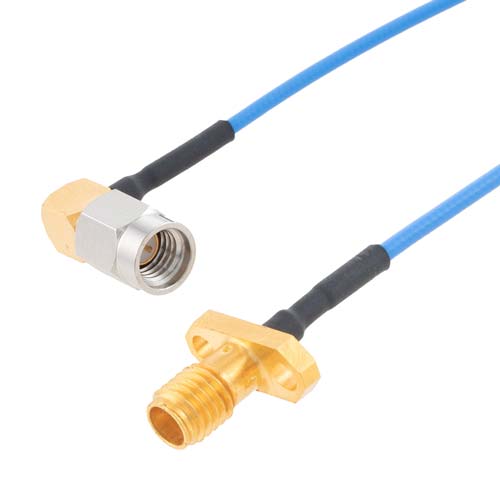

RA SSMA Male to SSMA Female 2 Hole Flange Cable FM-P047 Coax
