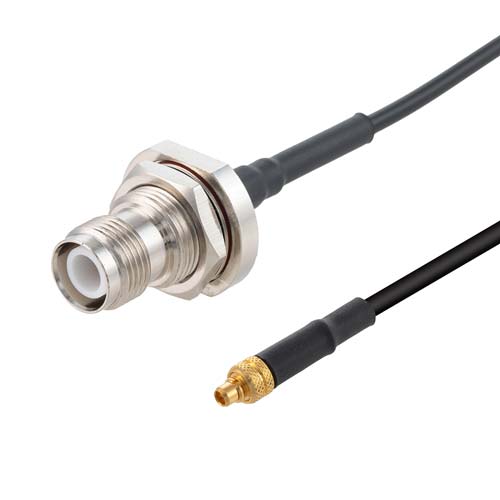

Low Loss RP TNC Jack Bulkhead to MMCX Plug Cable LMR-100 Coax

Low Loss RP TNC Jack Bulkhead to MMCX Plug Cable LMR-100 Coax

RF cable assembly part number FMCA9988 low loss RP TNC jack bulkhead to MMCX plug cable LMR-100 coax from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and i...

RF cable assembly part number FMCA9988 low loss RP TNC jack bulkhead to MMCX plug cable LMR-100 coax from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. The 50 Ohm FMCA9988 cable assembly like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide. This Fairview Microwave RF coaxial assembly is manufactured with a reverse polarity TNC cable connection on one end and a MMCX cable connection on the other end. Our reverse polarity TNC cable assembly has a jack on end one and plug on end two. Reverse polarity TNC cable FMCA9988 is built in a jack to plug coaxial assembly design and will ship quickly after the purchase. This BL RF cable assembly has a PVC jacket with 0.110 inches diameter. This low loss RF cable assembly operates at a maximum frequency of 3 GHz. Our flexible cable assemblies are constructed using durable and flexible materials with 1 inch bend radius to withstand repetitive movements, ensuring reliable performance over extended periods. The minimum bend radius for flexible cable assemblies is 0.25 inch, allowing for a single bend without damaging the cable. Our flexible low loss cable assemblies have a PVC jacket with 0.110 inches of jacket diameter. Fairview Microwave reverse polarity TNC jack to MMCX plug cable assembly FMCA9988 is built with LMR-100 coax and it is a flexible coax design. Our low loss cable assembly is manufactured with TNC to MMCX cable connectors and has a 50 Ohm impedance. One connector features the crimp/solder attachment method and a brass body with nickel plating, while the other has Clamp/Solder attachment method and brass body with gold plating. This RF cable assembly with 0.5 inches diameter has copper clad steel as cable inner conducting material and PE dielectric type. Additional dimensions, specifications and CAD drawings for this FMCA9988 low loss RF cable are available on our downloadable PDF datasheet. TNC reverse polarity jack bulkhead to MMCX plug coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality TNC to MMCX cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of TNC cable assemblies can also be built and shipped quickly as well. For further information on similar products, our expert technical support and trained sales team can get you the ideal TNC low loss RF cable assembly as per your requirements.* LMR™ is a trademark of Times Microwave Systems.

Expand

SKU FMCA9988 FMCA9988 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

TNC

Connector Gender 1

Jack

Connector Polarity 1

Reverse Polarity

Connector Angle 1

Straight

Connector Mount Method 1

Bulkhead

Connector Impedance 1

50

Connector Series 2

MMCX

Connector Gender 2

Plug

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

LMR-100A-PVC

RF Cable Type

LMR-100A-PVC

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

No Substance(s) Present Above Threshold

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
