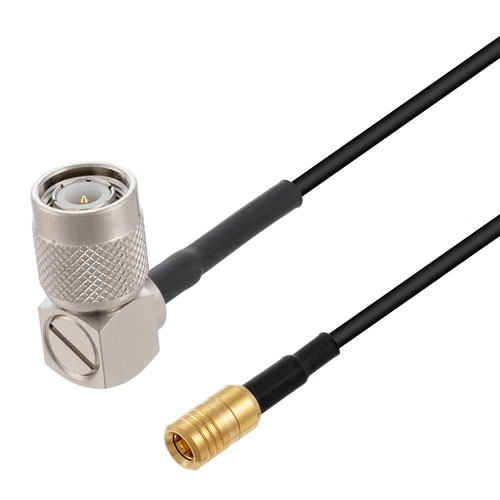

Low Loss RA TNC Male to SMB Plug Cable LMR-100A-UF Coax

Low Loss RA TNC Male to SMB Plug Cable LMR-100A-UF Coax

RF cable assembly part number FMC01019 low loss RA TNC male to SMB plug cable LMR-100A-UF coax from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interco...

RF cable assembly part number FMC01019 low loss RA TNC male to SMB plug cable LMR-100A-UF coax from Fairview Microwave is just one of a huge selection of coaxial cables for radio, antenna and interconnect with RF components. Fairview Microwave RF coaxial cable assembly products are designed for typical use, production, laboratory test and measurement, defense / military, aerial antenna towers, etc. The 50 Ohm like our other coaxial cable assemblies, is specifically ready for quicker shipment than most in the industry can provide. This Fairview Microwave RF coaxial assembly is manufactured with a TNC cable connection on one end and a SMB cable connection on the other end. Our TNC cable assembly has a male plug on end one and plug on end two. TNC cable FMC01019 is built in a male to plug coaxial assembly design and will ship quickly after the purchase. Fairview TNC male to SMB plug cable assembly FMC01019 is built with LMR-100A-UF coax and it is a flexible coax design. Our TNC cable assembly is manufactured with right angle 50 Ohm TNC to 50 Ohm SMB cable connectors and has a 50 Ohm impedance. RF specs for this TNC right angle male to SMB plug cable can be found on its specifications datasheet PDF above. Keep in mind that FMC01019 can also be used in the other direction as a SMB plug to TNC male cable because the assembly operates in both directions. TNC right angle male to SMB plug coaxial cable assembly is just one of more than a million RF parts we have available. Fairview Microwave is where to buy a high quality TNC to SMB cable assembly for quick shipment worldwide. We also have a wide selection of other low to high frequency coaxial cables that will ship quickly from our United States warehouse. Because Fairview is one of a few RF, microwave and millimeter wave cable assembly suppliers with rapid shipping, many variations of TNC cable assemblies can also be built and shipped quickly as well. Custom cable assemblies for radio, antenna, RF component inter connection and more for production, test and measurement labs, military / defense, aerospace, telecom and other RF applications for cables can be easily built.* LMR™ is a trademark of Times Microwave Systems.

Expand

SKU FMC01019 FMC01019 -0

Length

Or custom length

Unit

Minimum 6 inches

Quantity

Confirm shipment date

Ship as soon as

Please enter a valid U.S. postal code

Lengths are rounded up to the nearest quarter inch or centimeter respectively.

Key specifications

Datasheet

View All

Connector Series 1

TNC

Connector Gender 1

Male

Connector Polarity 1

Standard

Connector Angle 1

Right Angle

Connector Mount Method 1

None

Connector Impedance 1

50

Connector Series 2

SMB

Connector Gender 2

Plug

Connector Polarity 2

Standard

Connector Angle 2

Straight

Connector Mount Method 2

None

Connector Impedance 2

50

RF Cable Part Number

LMR-100A-UF

RF Cable Type

LMR-100A-UF

RF Cable Impedance

50

Length

Select length above.

Product compliance

RoHS status

Not Available

REACH status

Not Available

TSCA status

Not Available

ECCN

EAR99

For any of the above statuses that are not available, we may be able to obtain the data by contacting various compliance specialists within our supply chain. You may ask our Compliance department if that information can be obtained by clicking here to contact us
